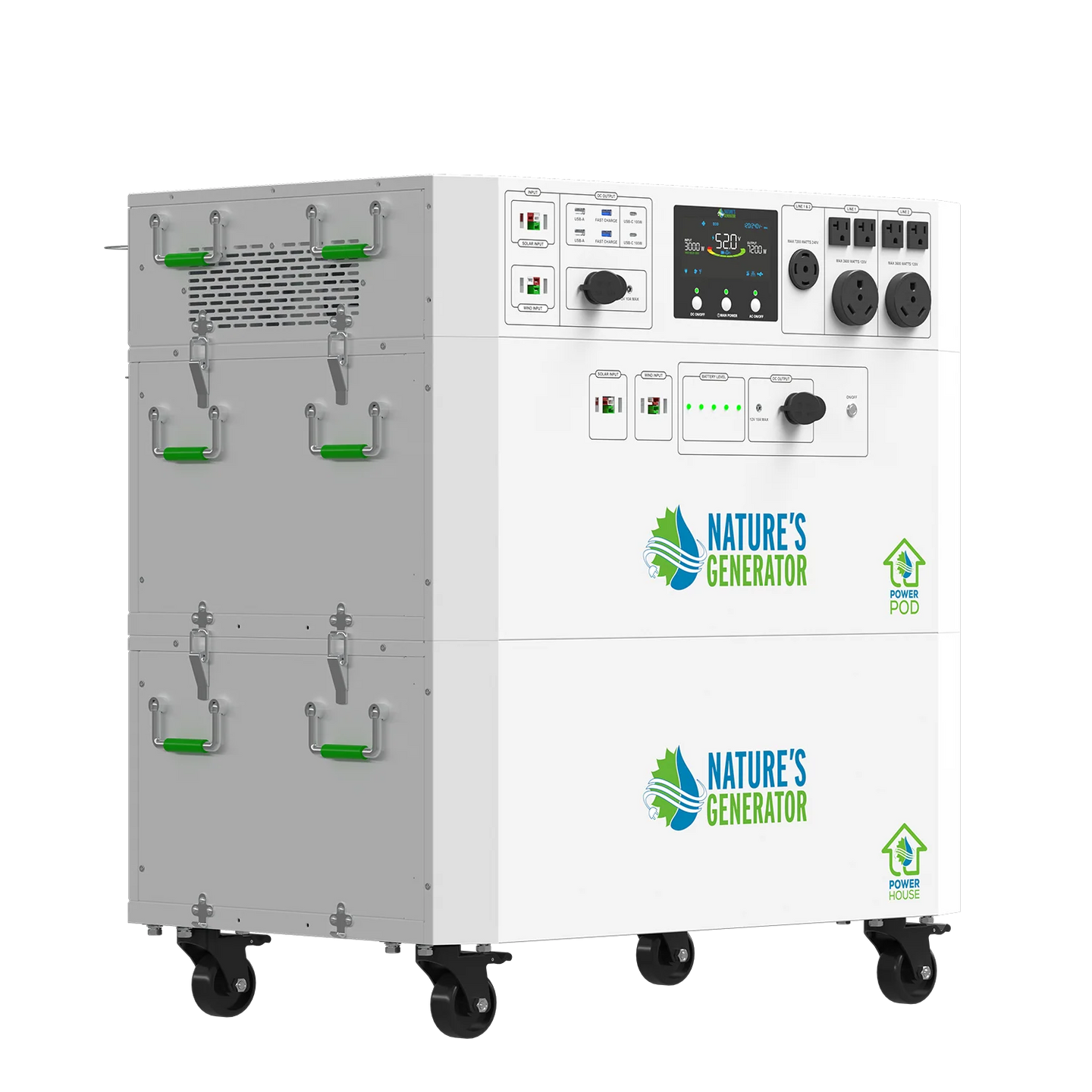

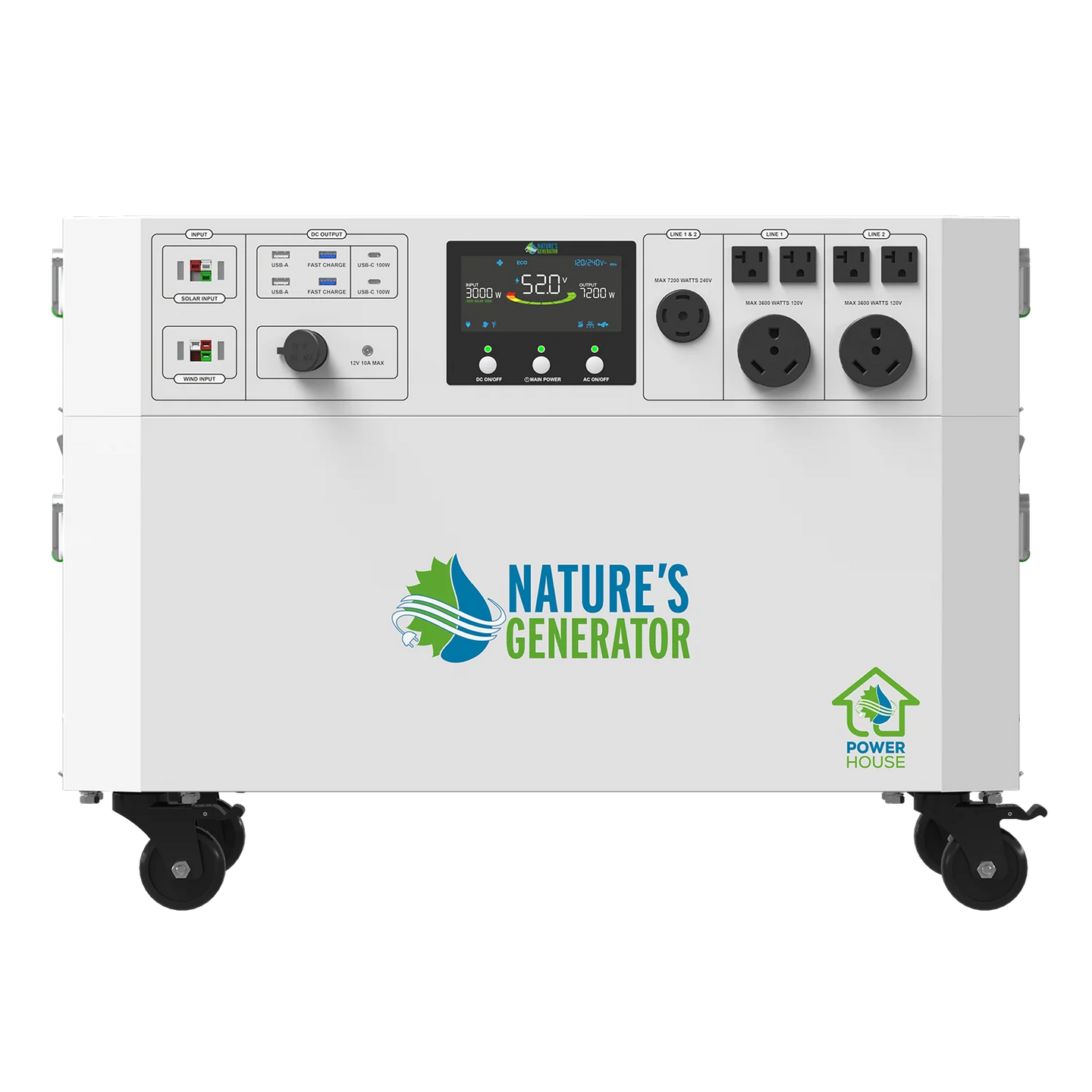

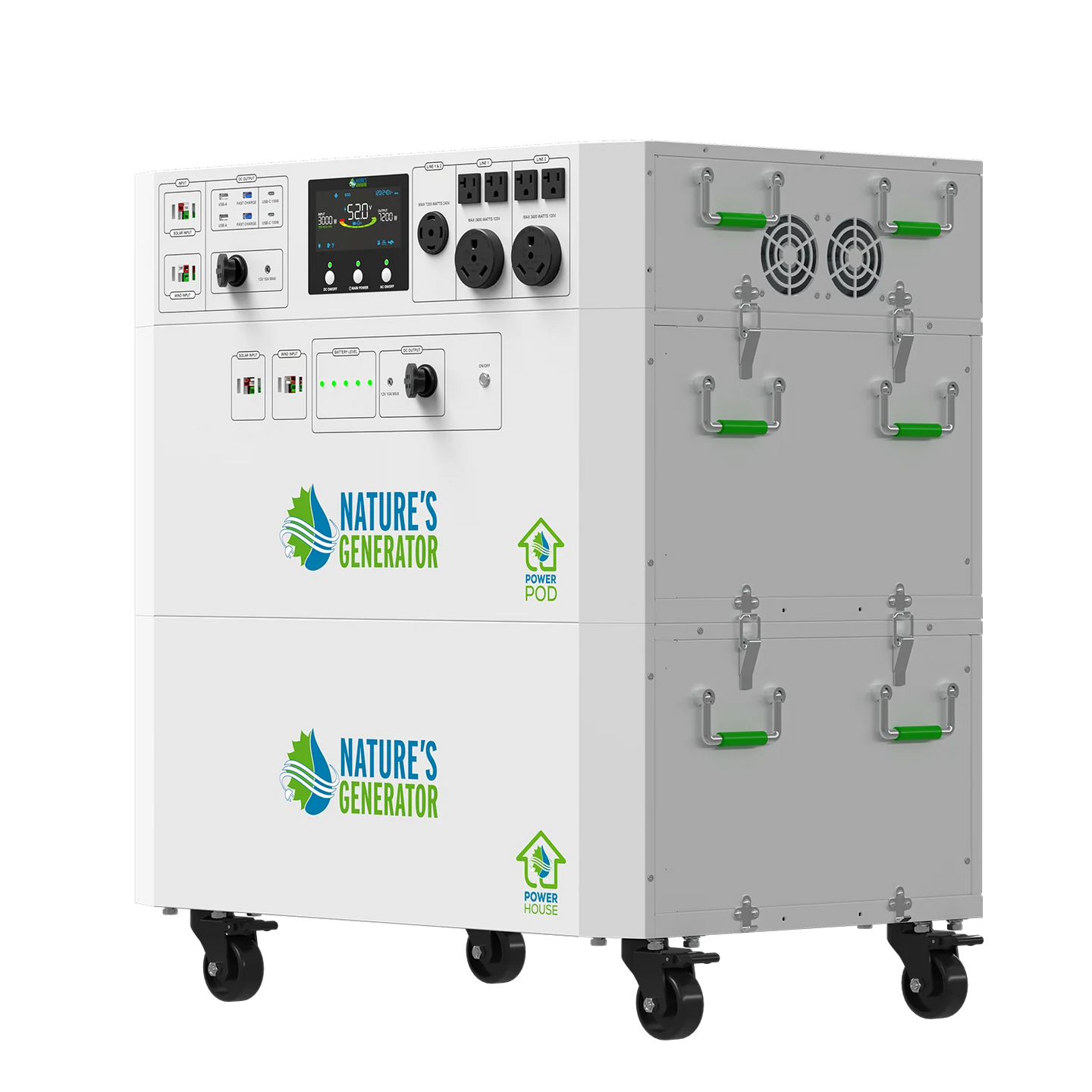

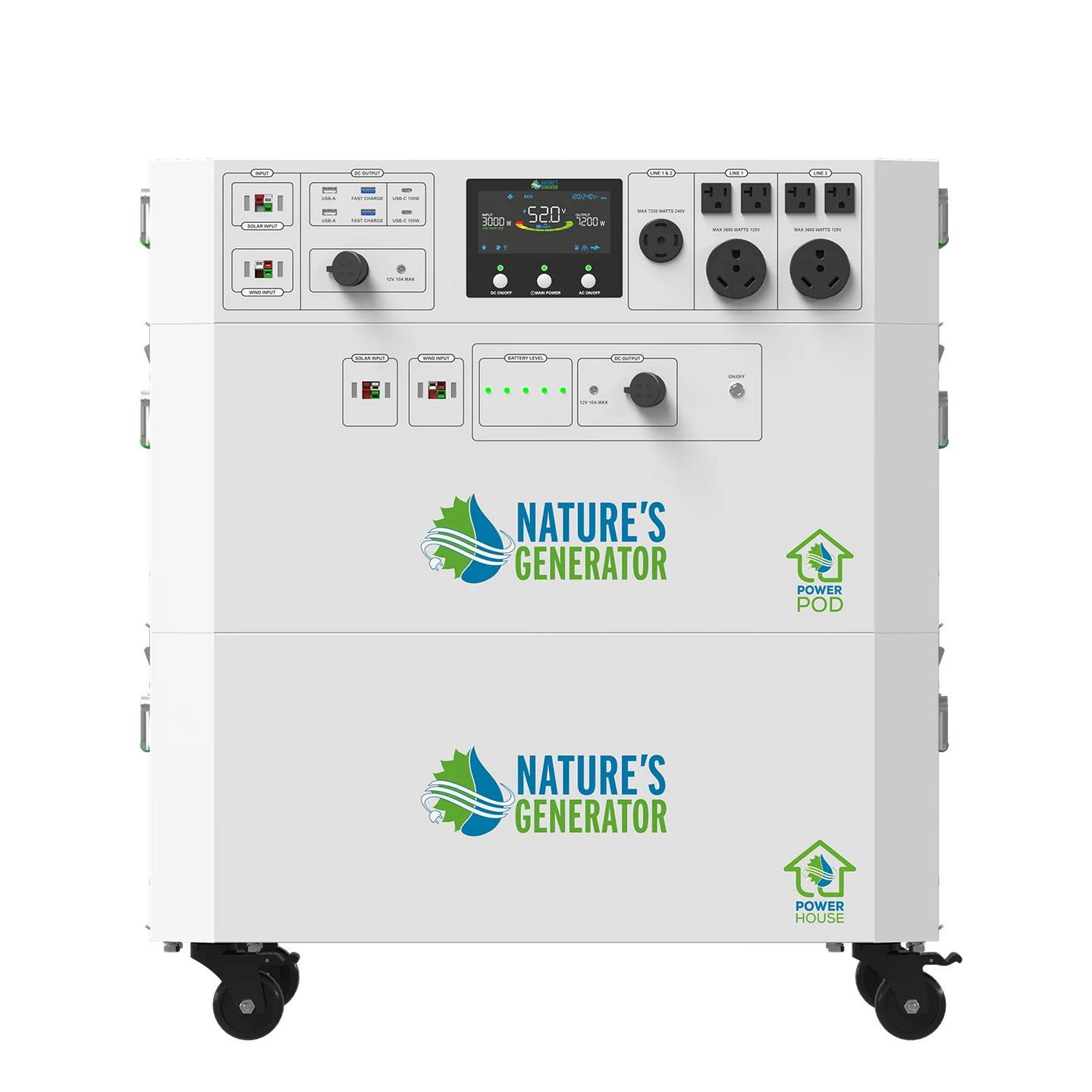

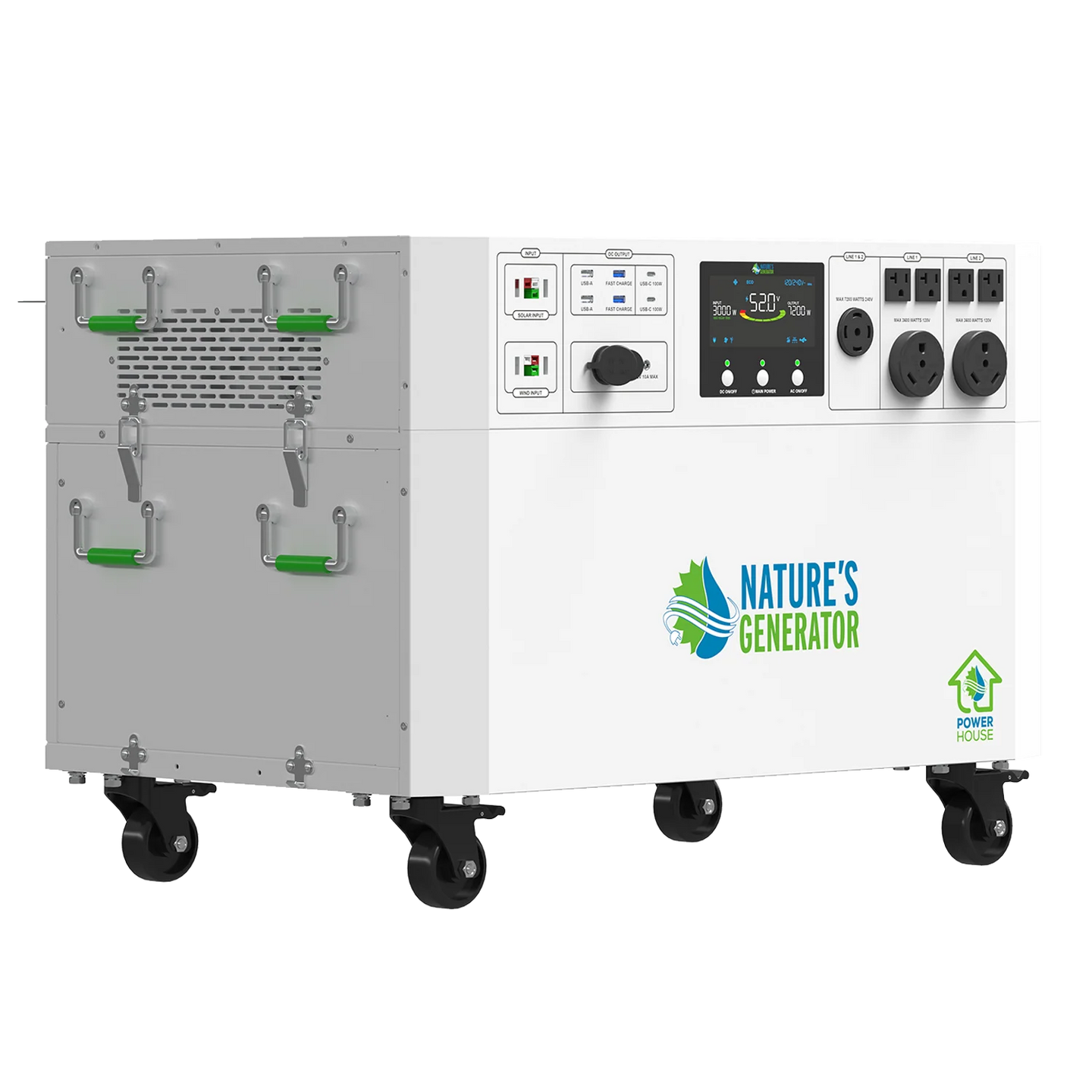

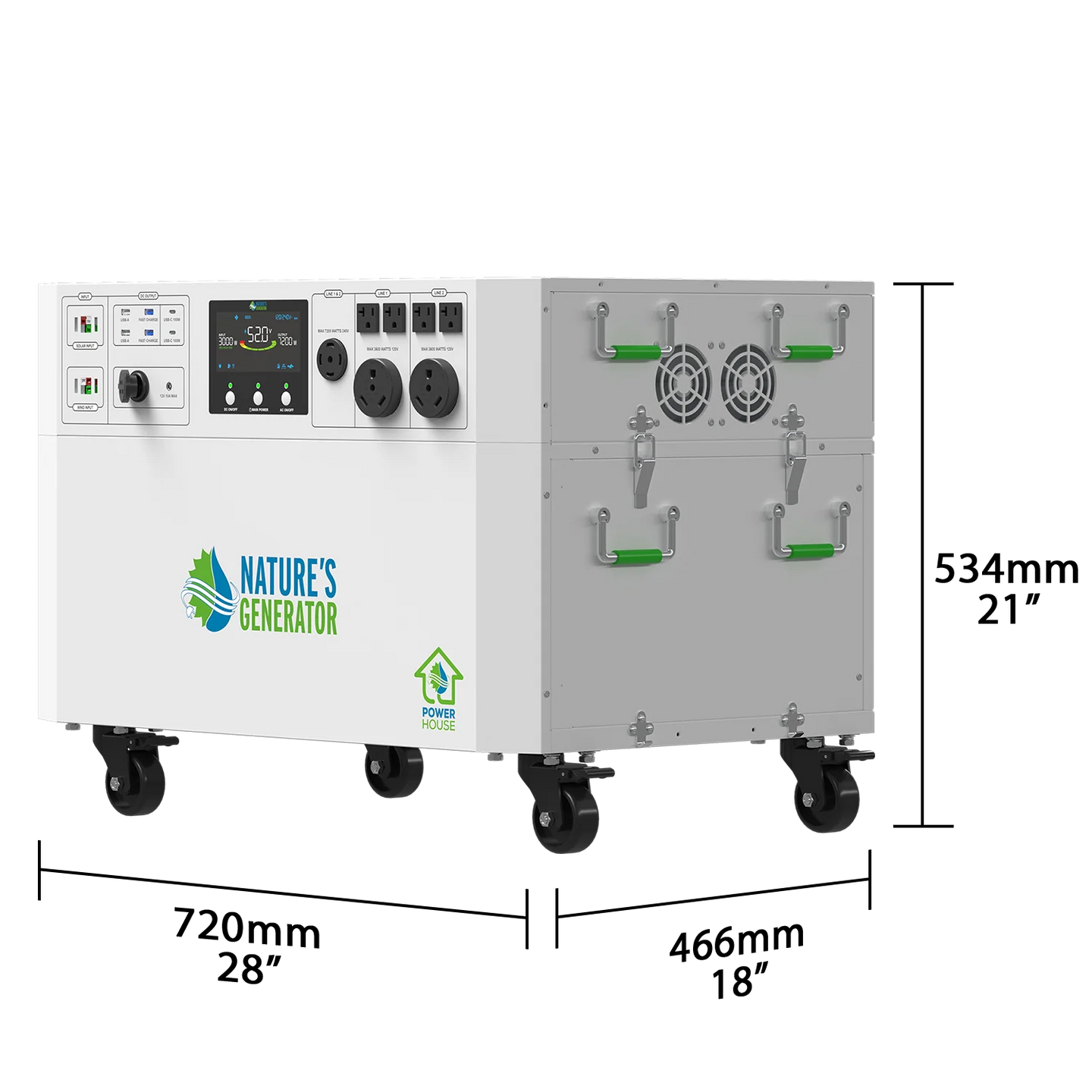

- Generator LCD Display
- USB Ports
- Solar Input
- Wind Input
- 12V DC Socket/Barrel Port
- Main Power, DC, & AC Switch
- AC Outlets & Switch

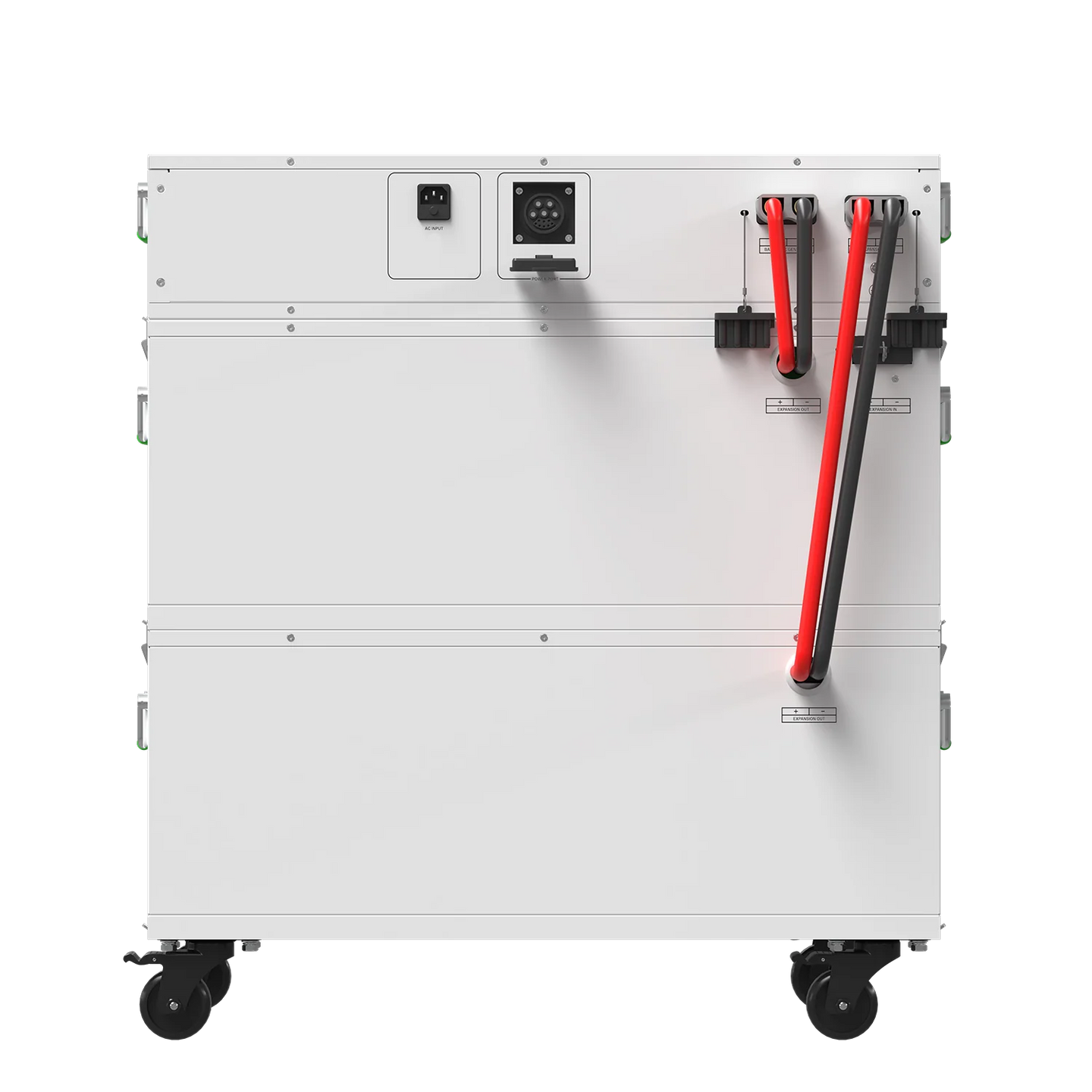

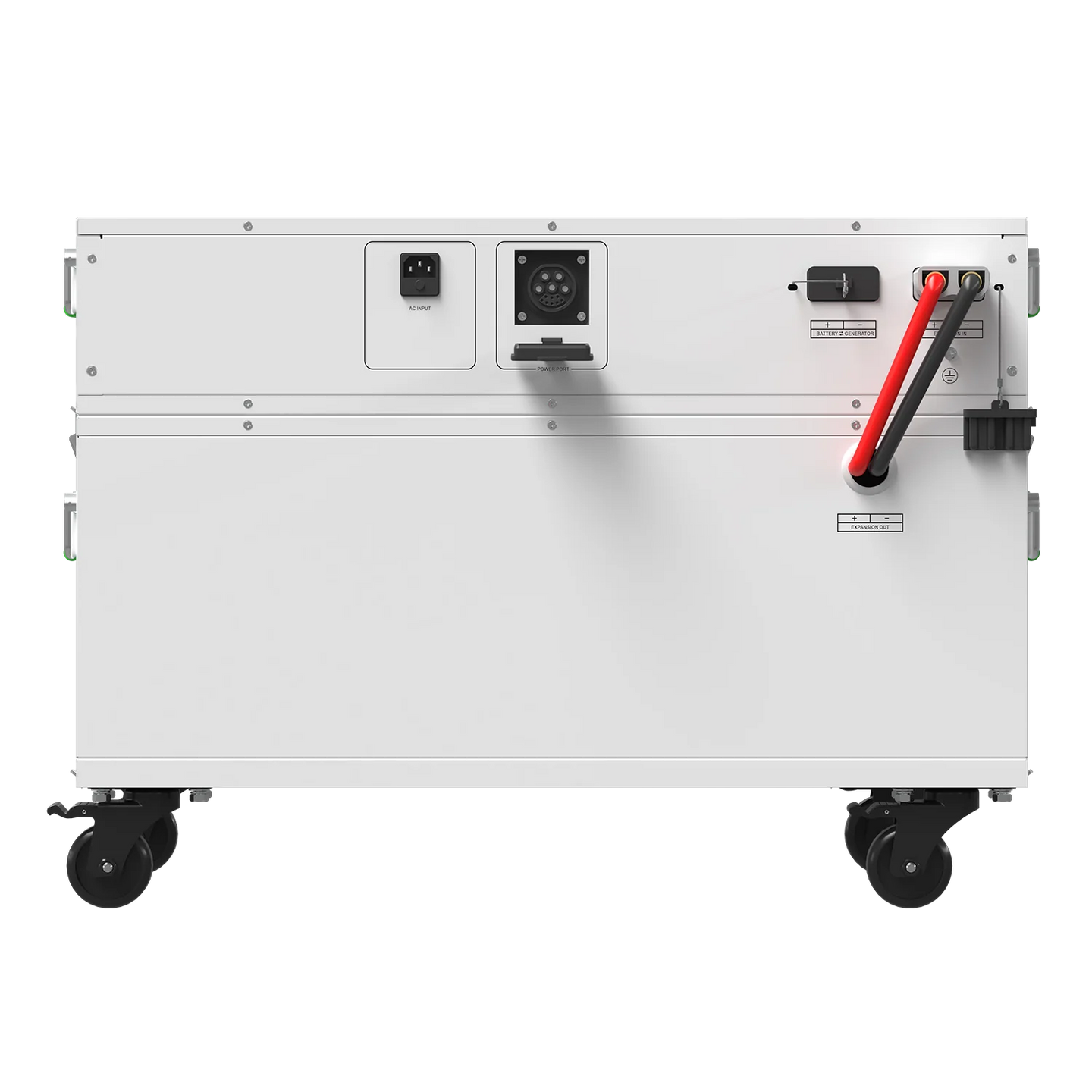

- AC Input
- Power Port
- Expansion IN Port
- Battery Generator Port
Tech Specs
Find all the essential technical details of the Powerhouse, including power output, capacity, and system specifications.
Inverter
- Output Continuous Power: 7200 watt max
- Output Peak Power: 14400W
- Output Voltage: 240V Split Phase, 120V Single Phase
- Output Frequency: 60Hz
- Output Power Form: Pure Sine Wave
Battery
- Capacity: 48V 100Ah (4800Wh)
- Cell Chemistry: AGM Sealed Lead Acid
- Self-discharge: Recommend to recharge every 4 months
Charges

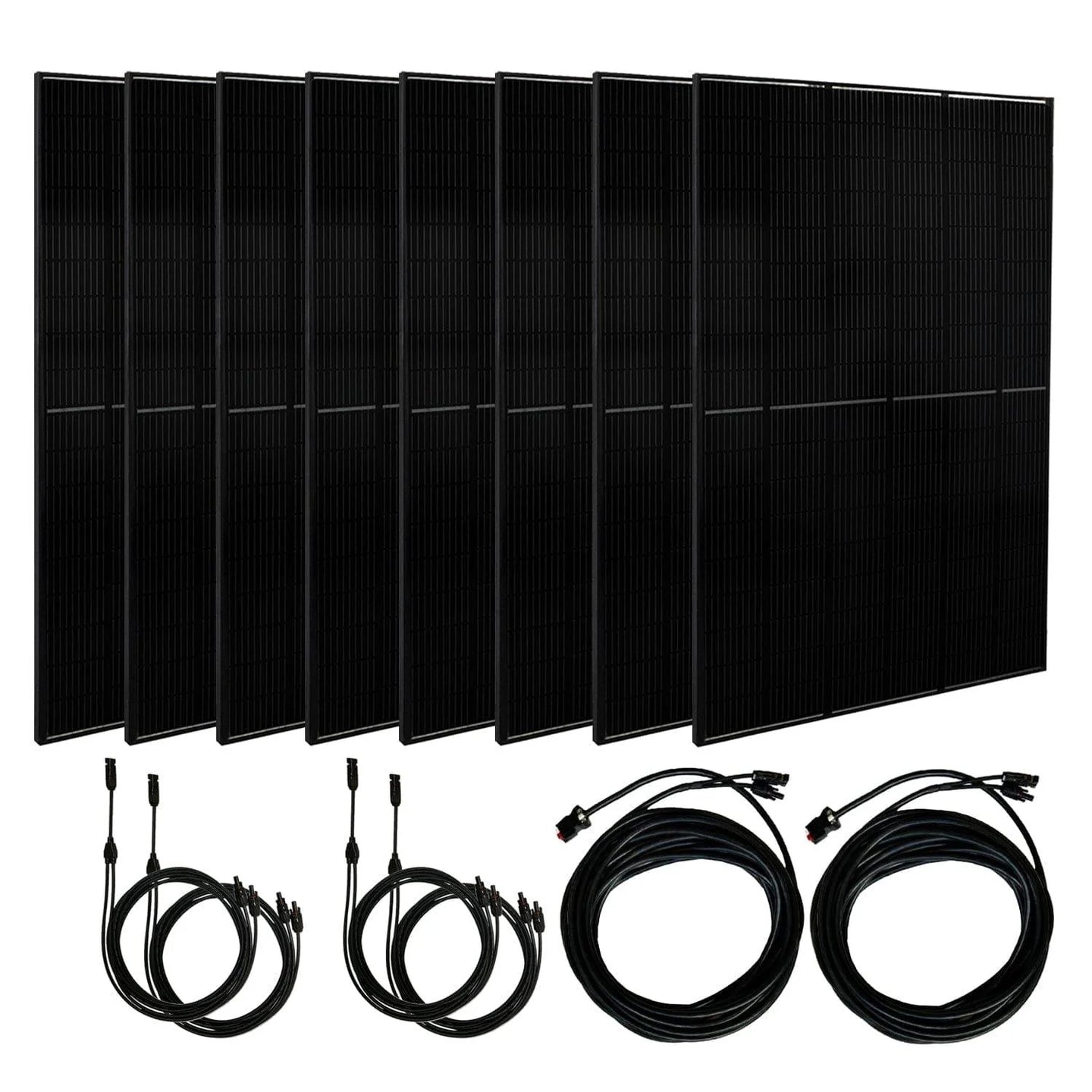

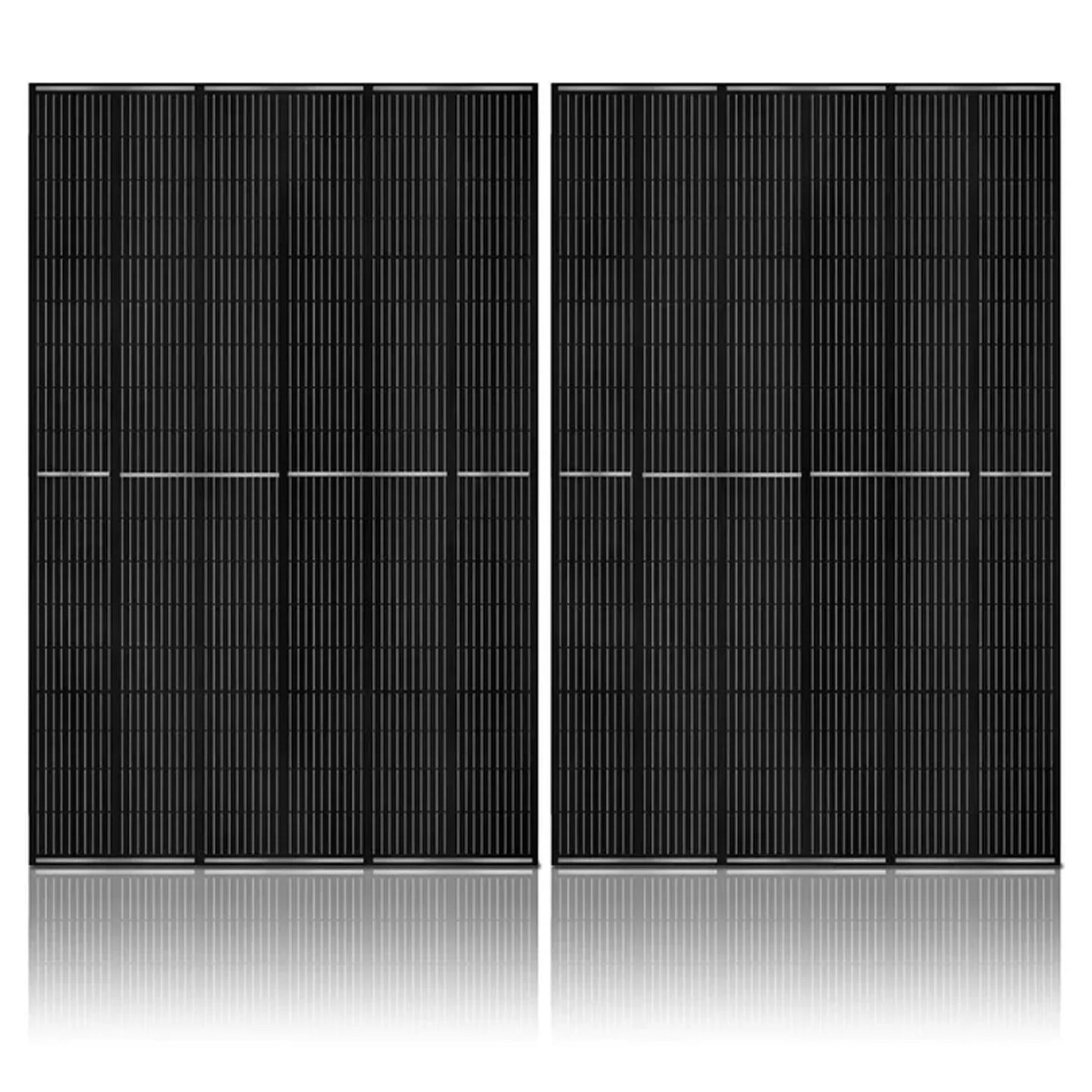

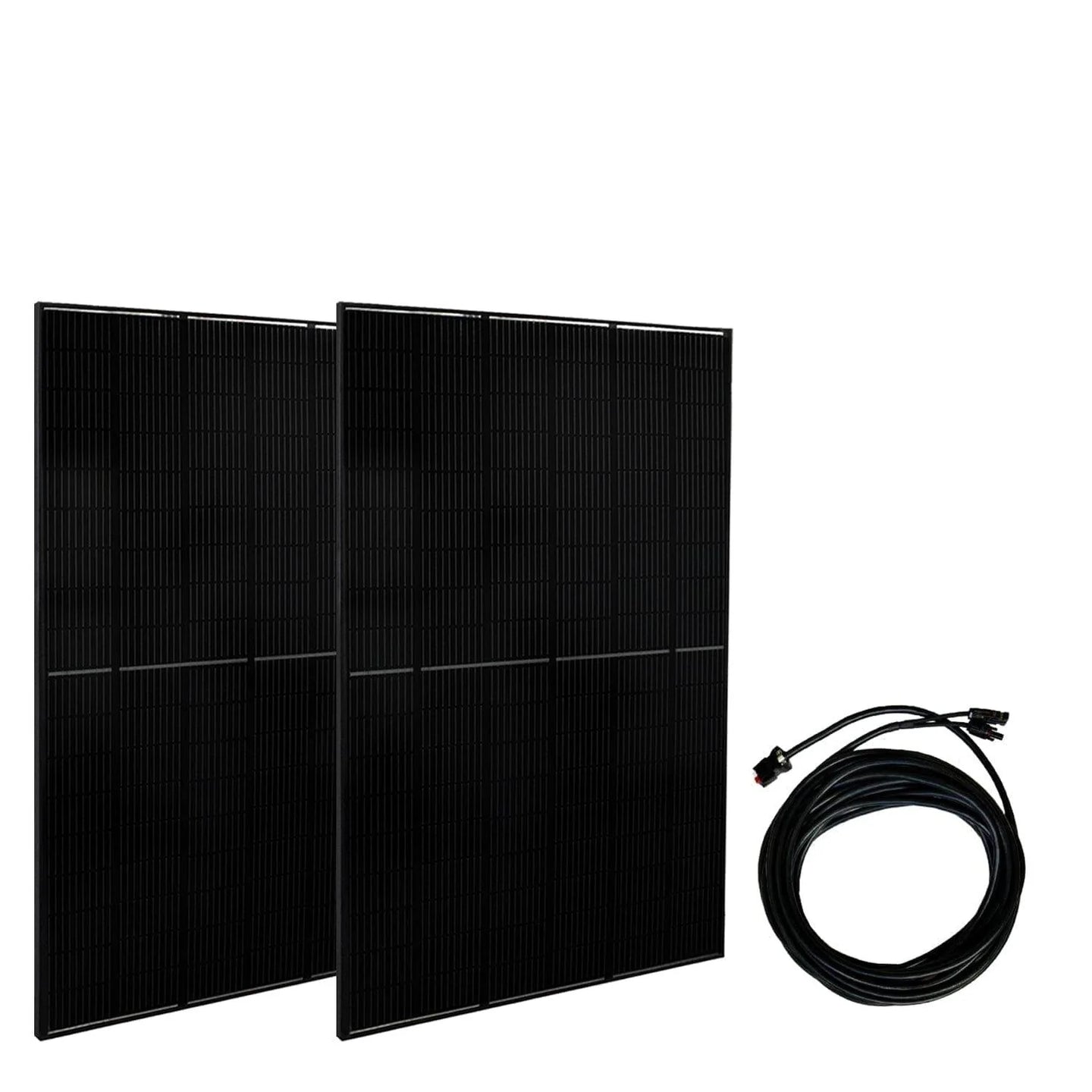

- Solar Charger: 2000W

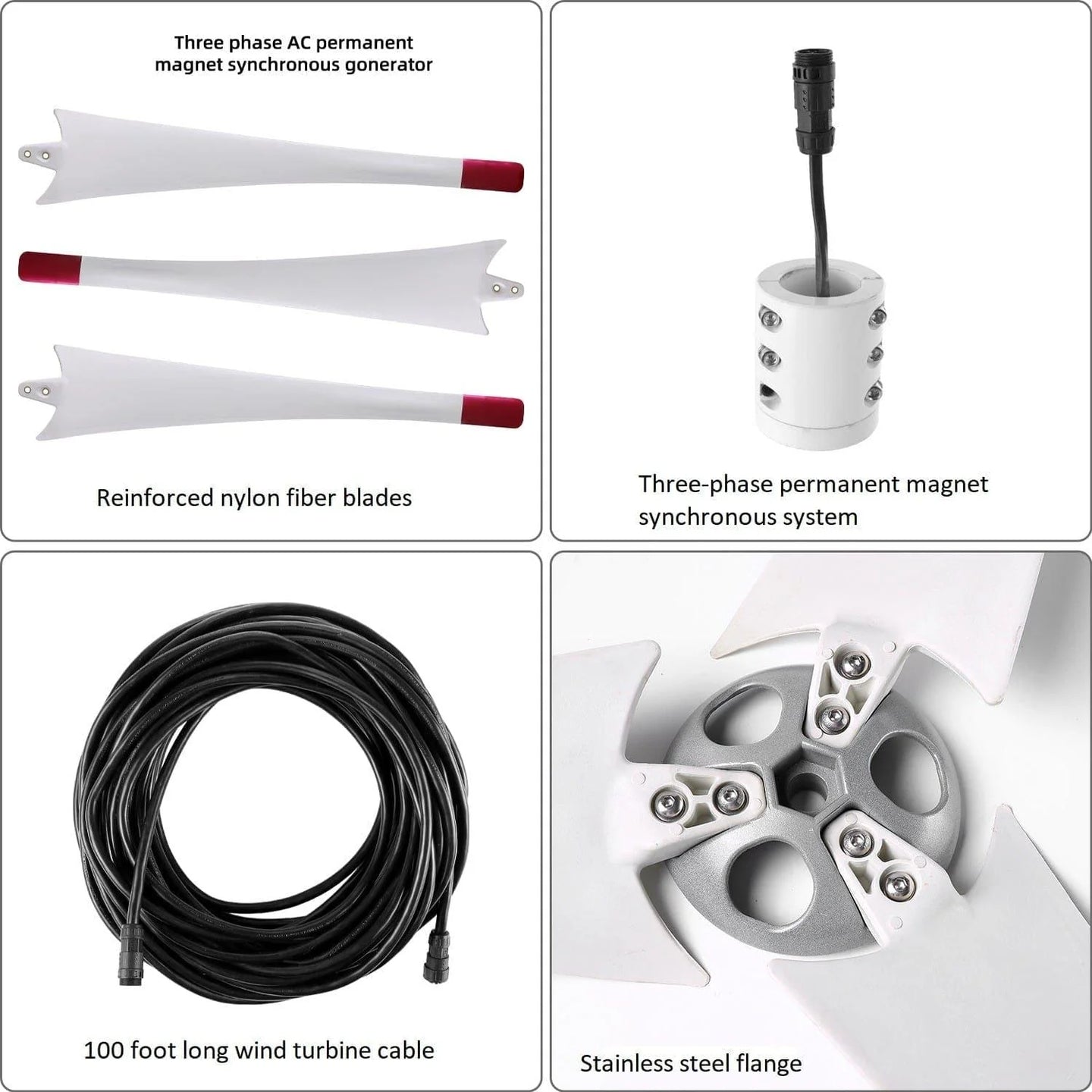

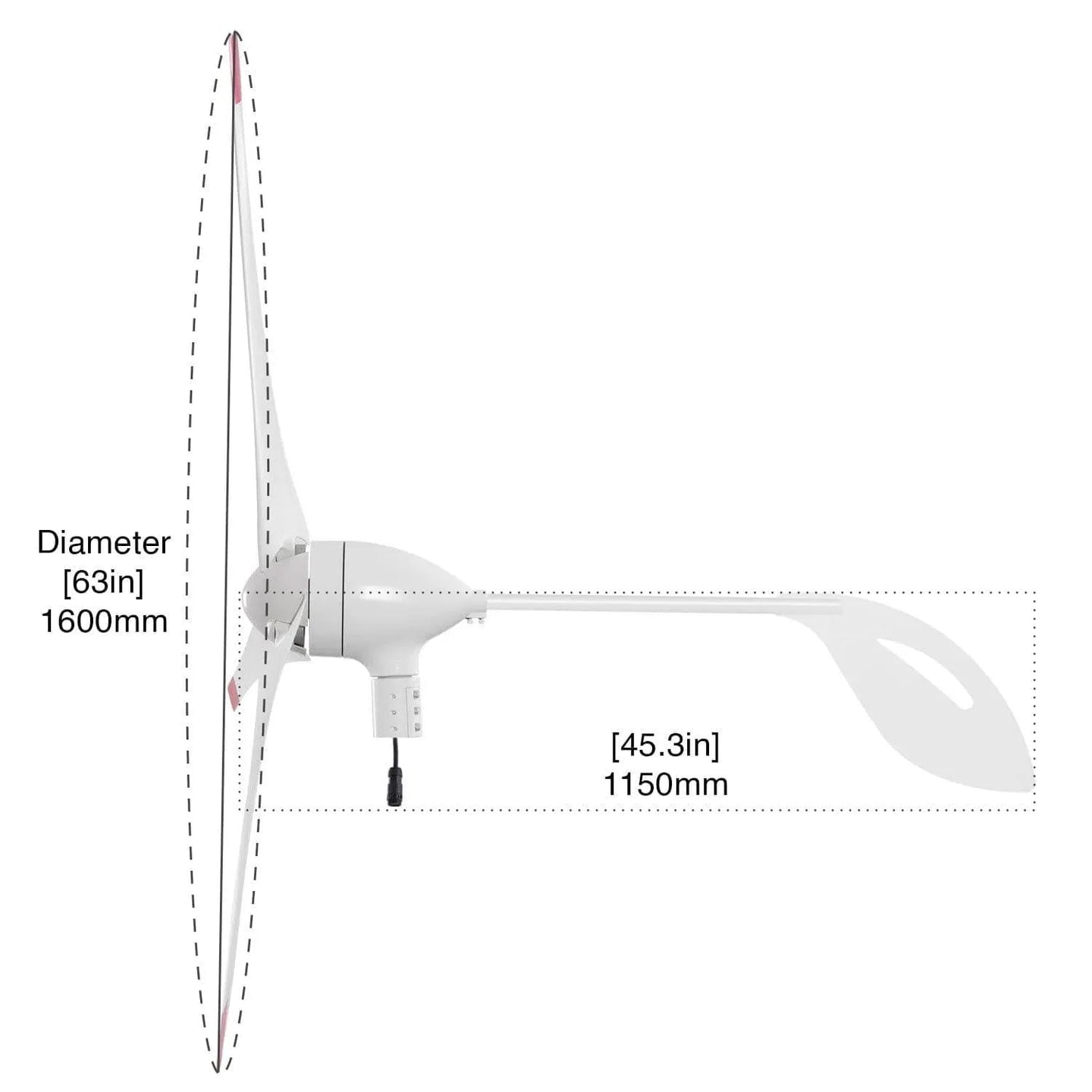

- Wind Charger: 1000W
- AC Charger: 1300W, 120V AC
Ports
- USB Output: QC 3.0
- Type-C Output: PD3.0
- 12V Socket: 10A max
- 12V Port: 10A max
- 48V Port: 5A max
- Expansion Port: 175A max
General
- Weight: 434 lbs (197 kg)
- Operating temperature: 32-104 °F (0-40 °C)
- Storage Temperature: 23–111 °F (-5–45 °C)
- Dimensions: Powerhouse : 28 x 18 x 17 inches (720*466*440mm)
- Powerhouse (with wheels): 28 x 18 x 21 inches (720*466*534mm)
