Product Description

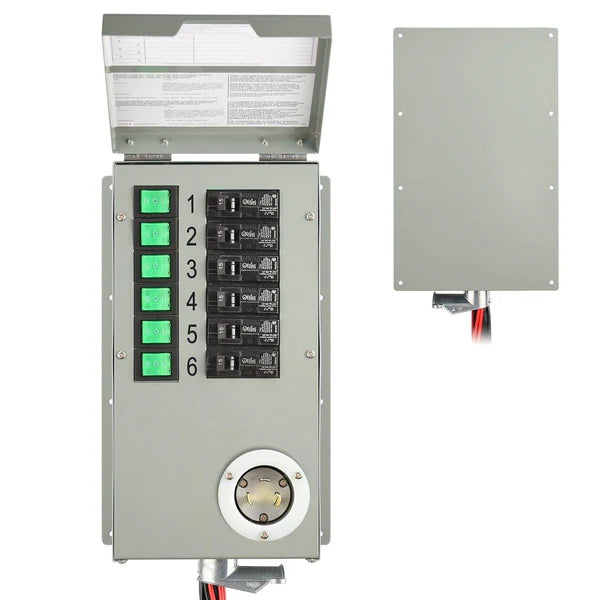

Nature's Generator Power Transfer Switch Kit - Elite

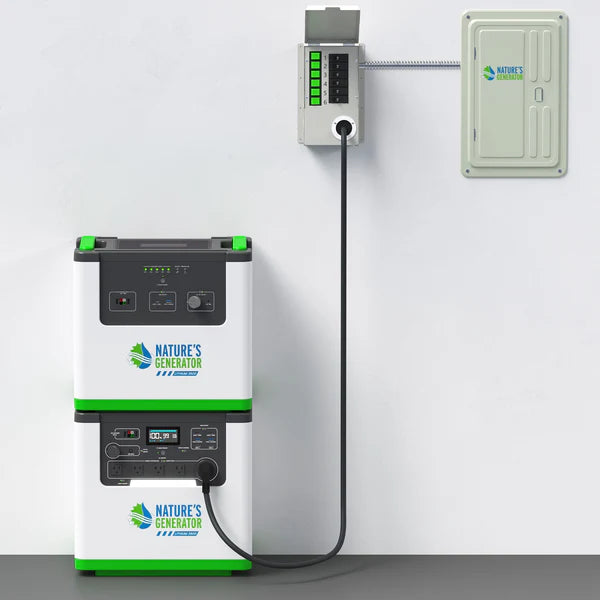

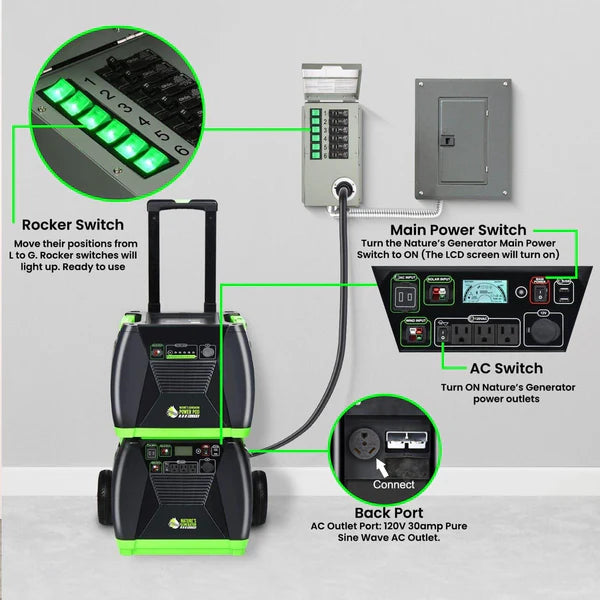

• Safe Manual Power Switching: Provides a secure, non-automatic way to connect your generator to your home’s electrical system, giving you full control over power during an outage.
• 30A Power Capacity with Flexible Circuit Support: Rated for 30 amps at 120V, supporting up to 6 circuits to power essential home loads.
• Precise Circuit Control & Load Management: Manual selector switches allow you to choose and manage specific circuits efficiently while preventing backfeeding and protecting your electrical system.

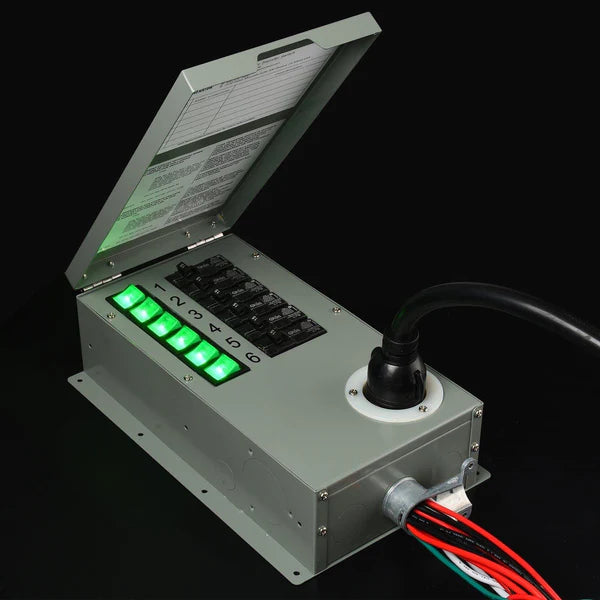

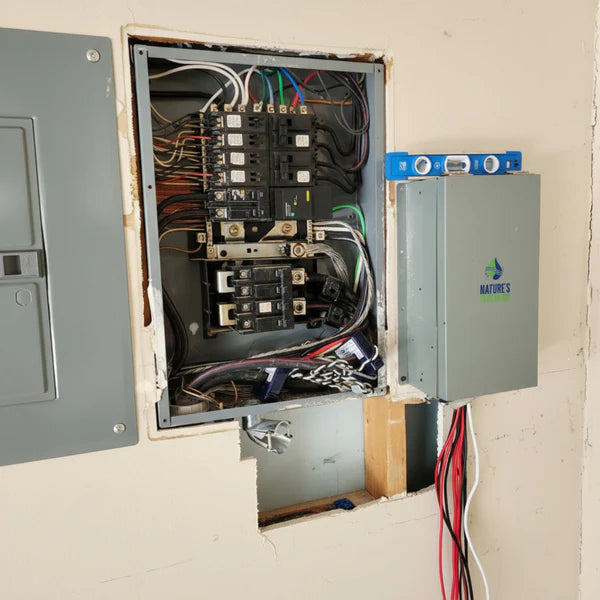

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.

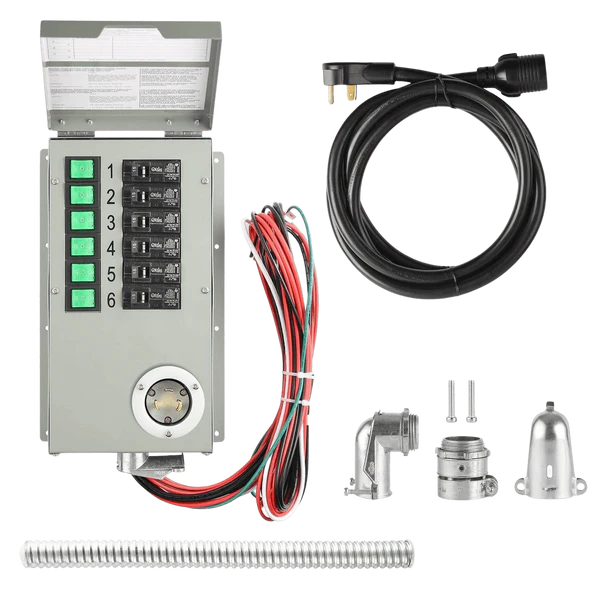

• Complete Generator Connection Kit: Includes a L5-30P 30A power inlet, 30A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.

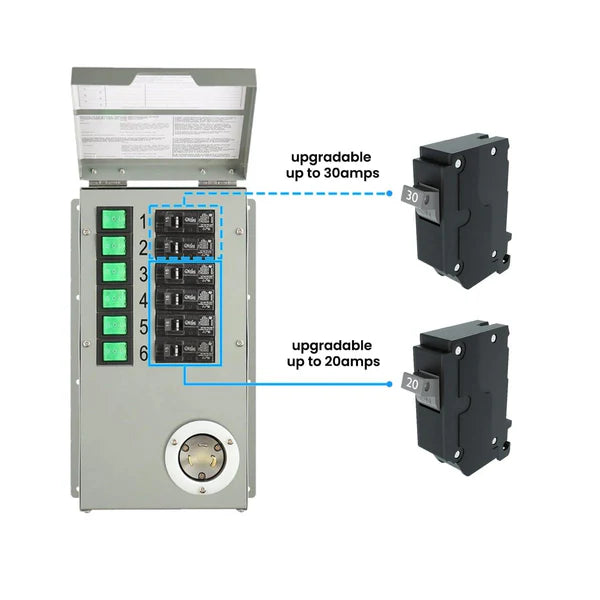

Pre-installed Breakers

Type Quantity Wire Gauge Upgradable to
1-Pole 15A Breaker 2  10 AWG  30A Breaker
1-Pole 15A Breaker 4  12 AWG  20A Breaker

Pre-installed Backup Power Conductors

Type Wire Gauge
Line 1  10 AWG
Neutral  10 AWG
Ground  12 AWG

Features

Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.

  • Safe Power Transfer Solution: Provides a secure way to connect your generator to home circuits while preventing dangerous backfeeding.

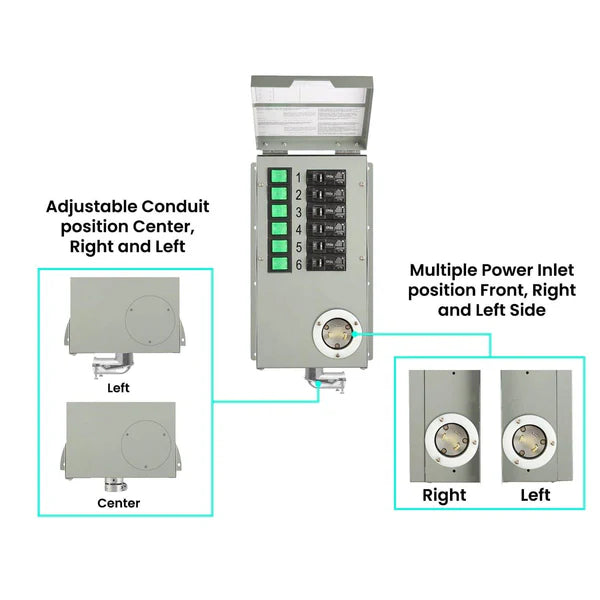

  • Multi-Inlet Position: Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
  • Built for Backup & Emergency Use: Ideal for outages and emergency situations, ensuring reliable power delivery to essential home circuits.
  • Safe & Reliable Design: Engineered for dependable performance, giving peace of mind during power transfers.
120V 4-Circuit 15A Manual Transfer Switch

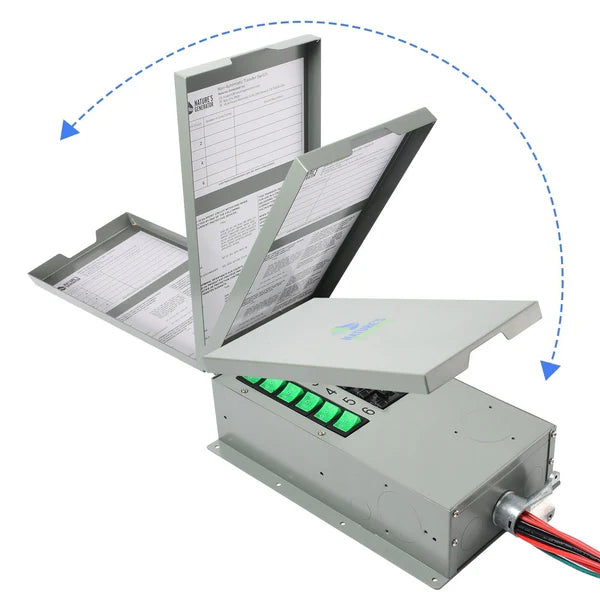

  1. Slow Closing Enclosure
  2. Rocker Switches
  3. Breakers
  4. Compartment Cover
  5. NEMA 5-15P
  6. Flush Mounting Holes
  7. 1/2 Inch Knockout
  8. Power Inlet Knockout

Tech Specs

Find all the essential technical details of your manual transfer switch, including circuit support, amperage, and installation features.

4-Circuit 15A Manual Transfer Switch Tab
Specification
  • Voltage: 120V 15 Amps
  • Inlet: NEMA 5-15P inlet
  • Number of Circuits: 6 circuits

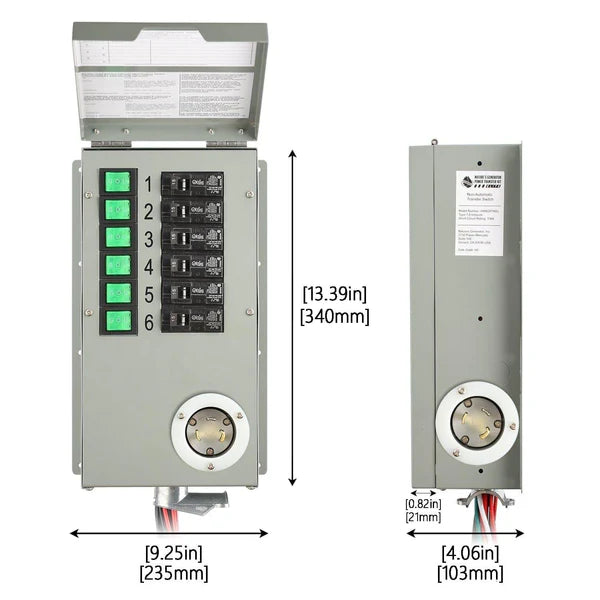

Dimension and Weight
  • 91/4 inch x 133/8 inch x 41/8 inch
    (235 mm x 340 mm x 103 mm) W x D x H
  • 10.1 lbs (4.58 Kg)
Temperature
  • Storage temperature: 23–111 °F(-5–45 °C)
  • Operating temperature: 32-104 °F(0-40 °C)
