- 3840Wh Expandable Storage: Adds significant capacity to your Lithium 6000 system.
- Long Cycle Life: Designed for >3000 cycles, offering years of dependable performance
- Expandable Solar Options: Compatible with 410W rigid and 200W/400W folding solar panels.
- Safe & Stable Architecture: Intelligent BMS (battery management system) protects against over-charge/discharge and enhances safety.

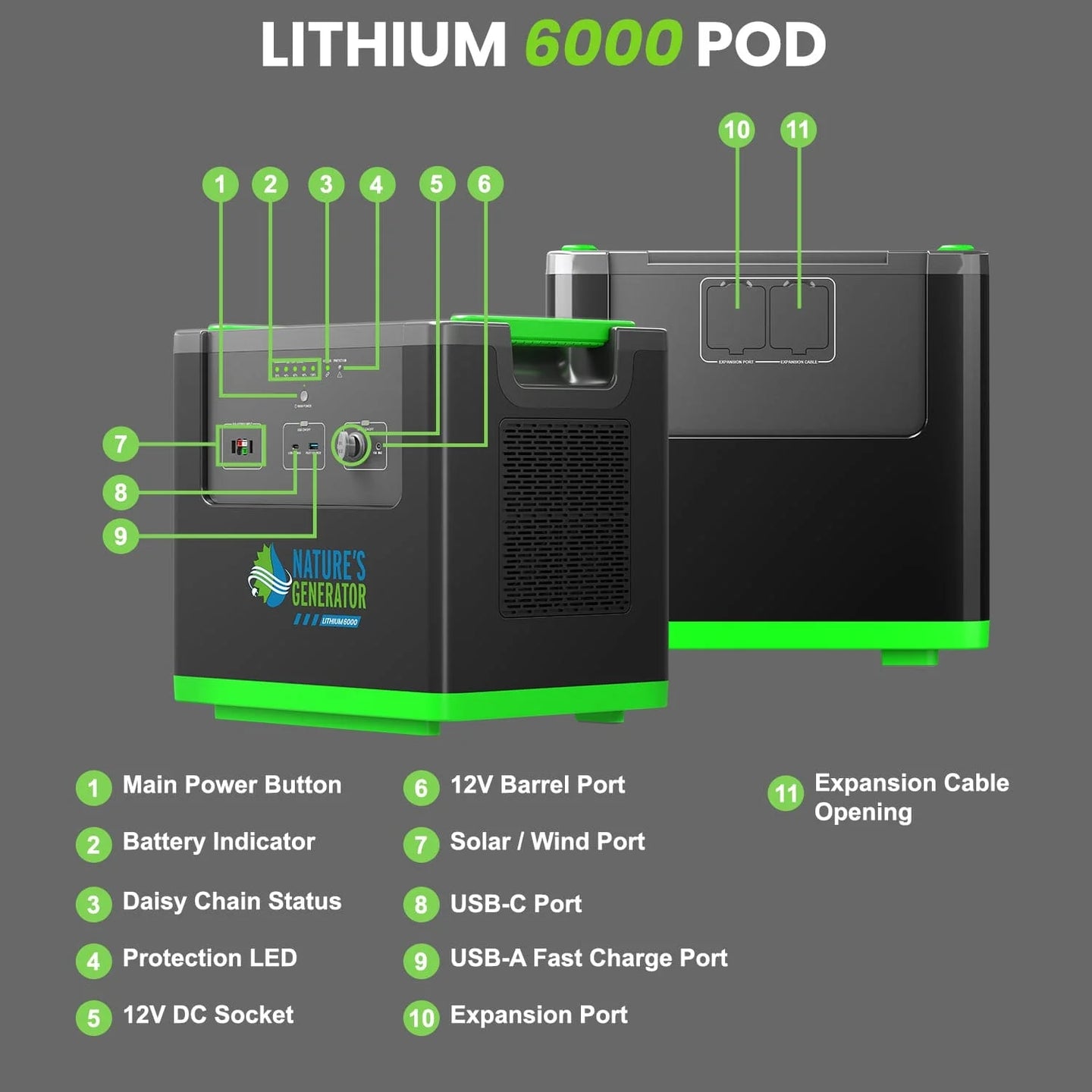

Port and Connection Guide

- Battery Level Indicator
- Main Switch
- Solar/Wind Input
- USB A & C Port
- 12V DC Socket & Barrel Port
- Expansion port
Tech Specs
A detailed look at capacity, battery chemistry, charging inputs, and system performance.
Battery
- Capacity: 51.2V 75Ah (3840Wh)
- Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
- Self-discharge: Recommend to recharge every 6 months
- Life Cycles: > 3000 cycles
Charges
- Solar Charger: 12 - 60Vdc 25A 1200W
- Wind Charger: 12Vdc 150W (shared port)
- Charge mode: MPPT
- Battery Level LED light: 5 LED lights
Port
- USB-A Fast Charge Port: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A, 60W
- USB-C Port: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A 100W
- 12V DC Socket: 12V 10A 120W
- 12V DC Barrel: 12V 10A 120W
- Expansion Port: Built-in
General
- Weight: 99.2 lbs (45 kg)
- Dimensions: 18.5 x 14.0 x 17.6 inches (469*356*446mm)
- Optimal Operating Temperature: 32 – 104°F (0 – 40°C)
- Storage Temperature: 14 – 113°F (-10 – 45°C)
- Discharging Temperature: 14 – 113°F (-10 – 45°C)
