Product Description

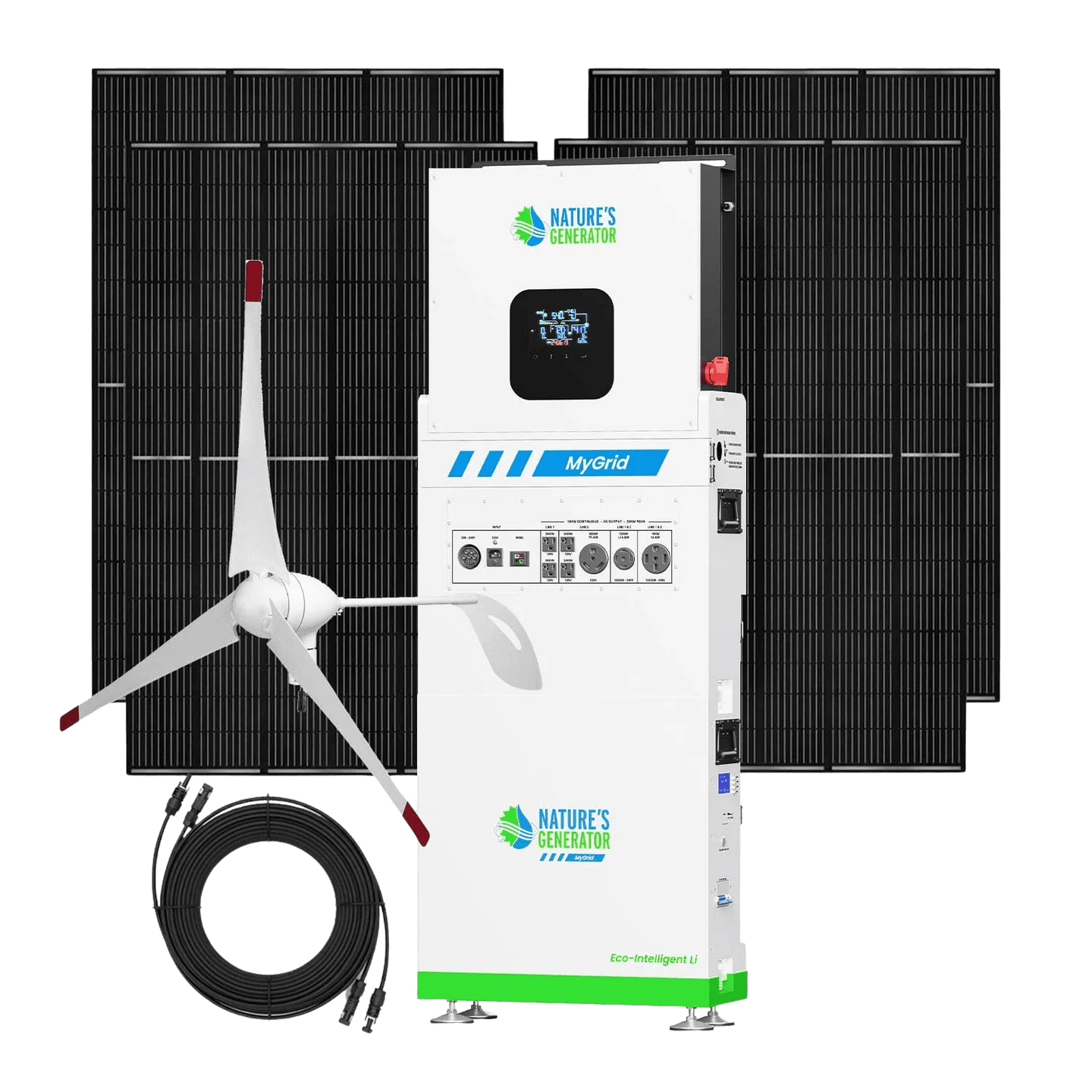

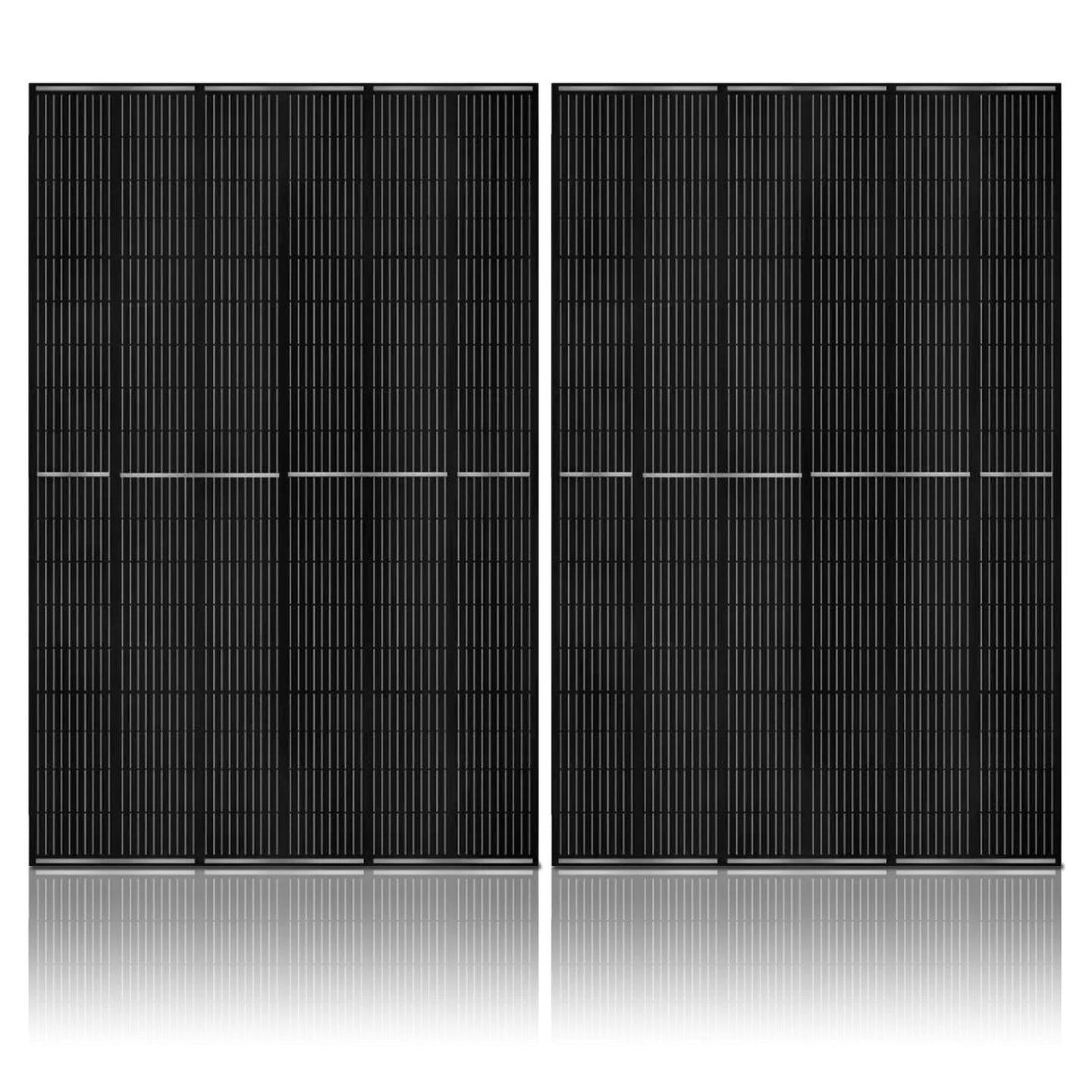

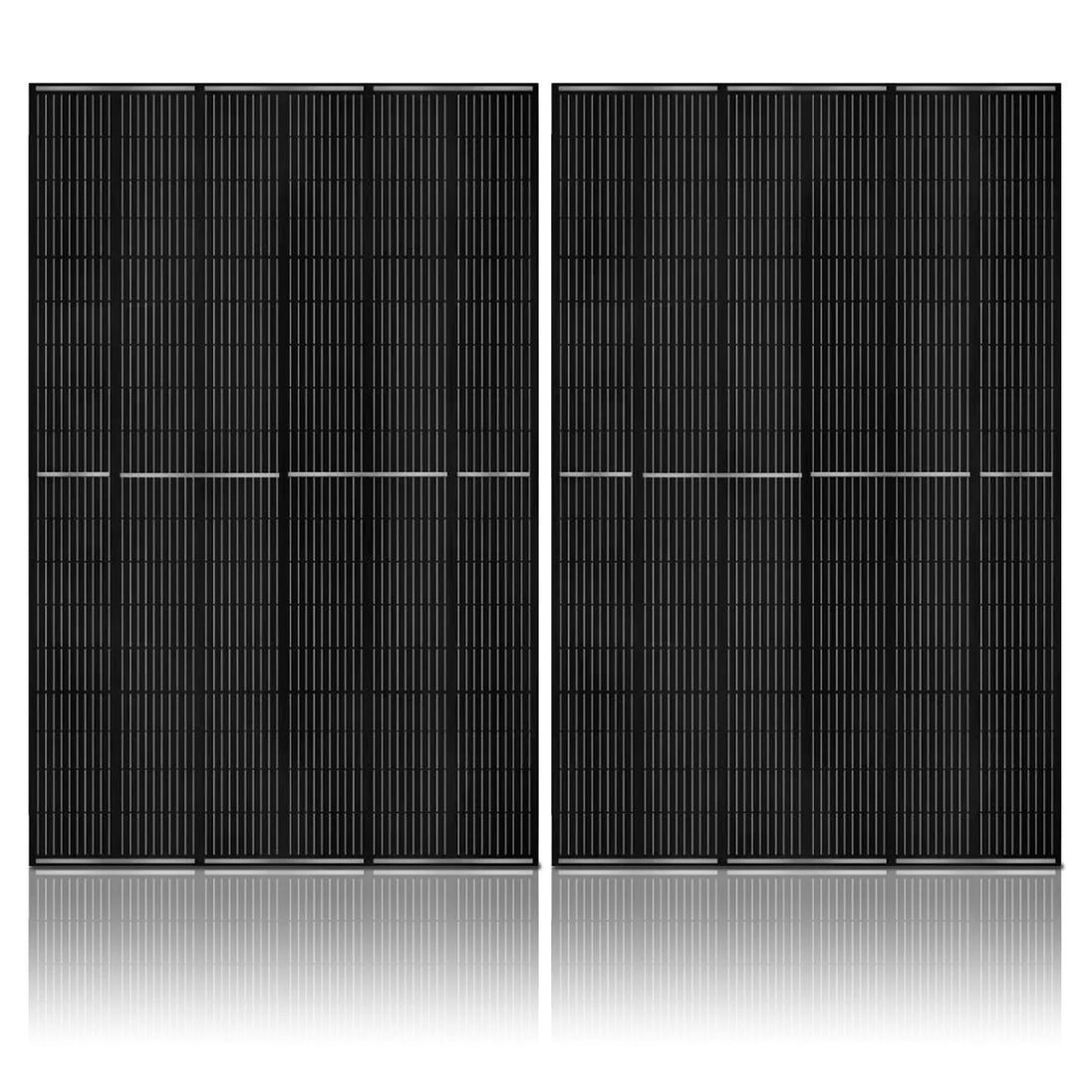

MyGrid 10K + 4x 410W Rigid panels + 350W wind turbine

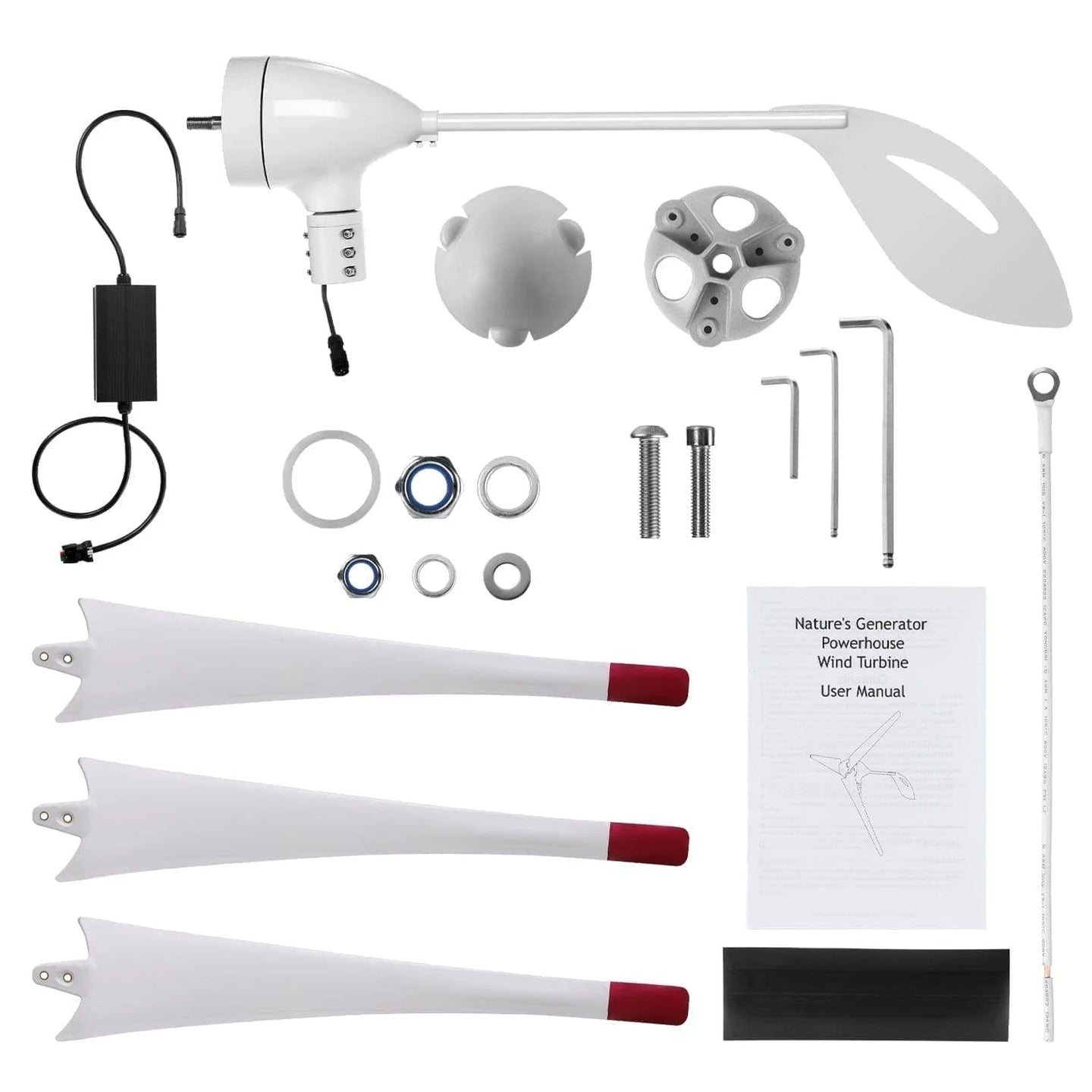

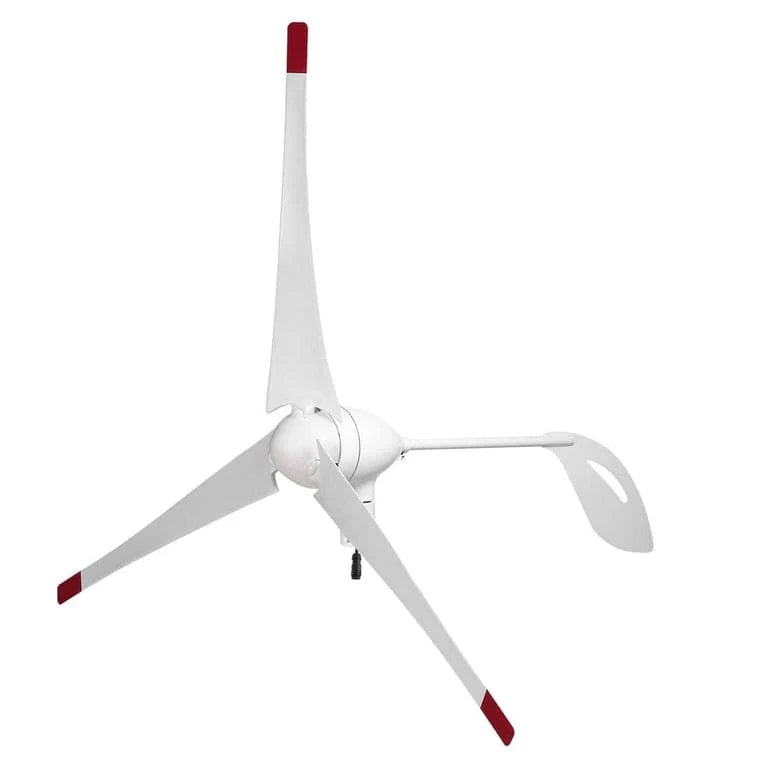

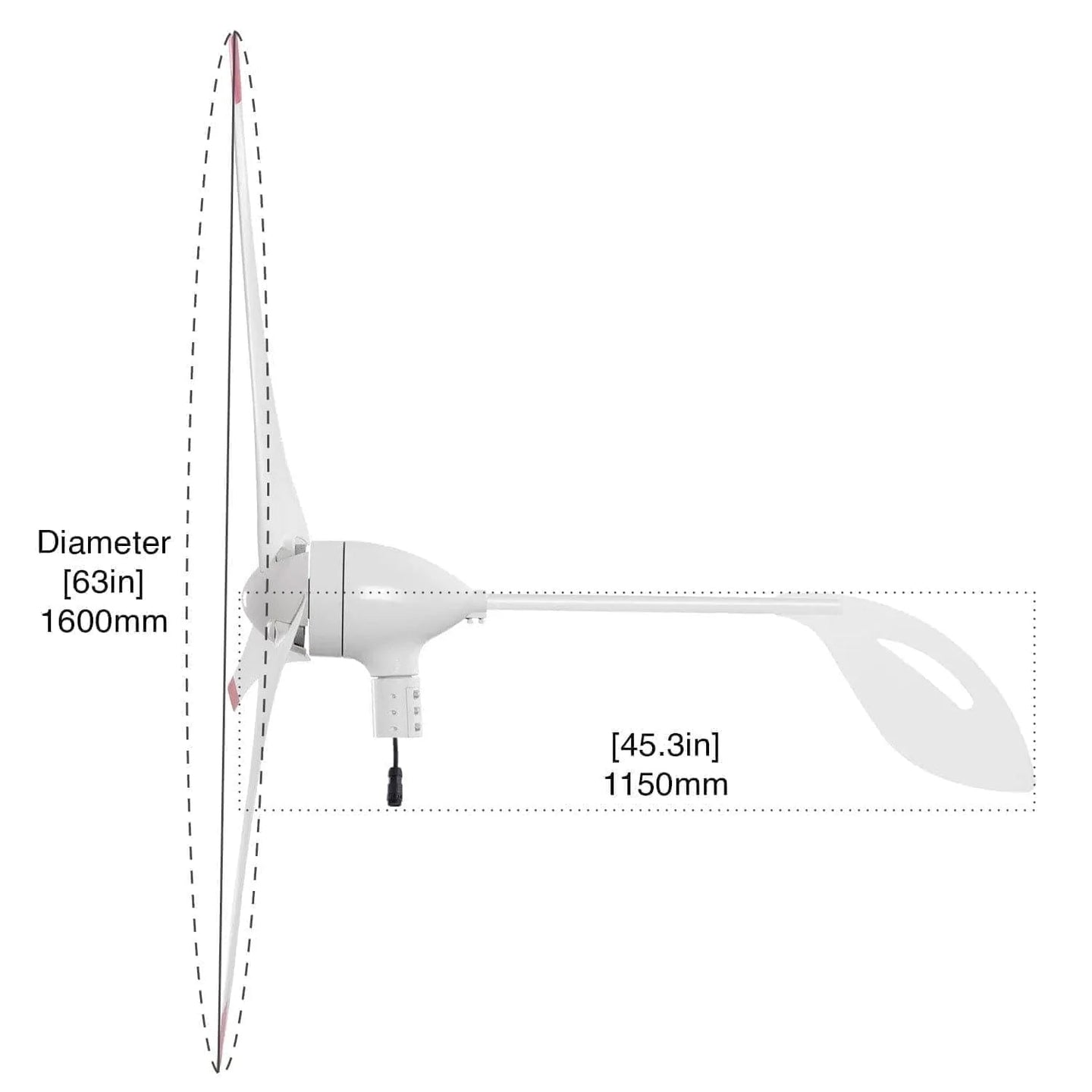

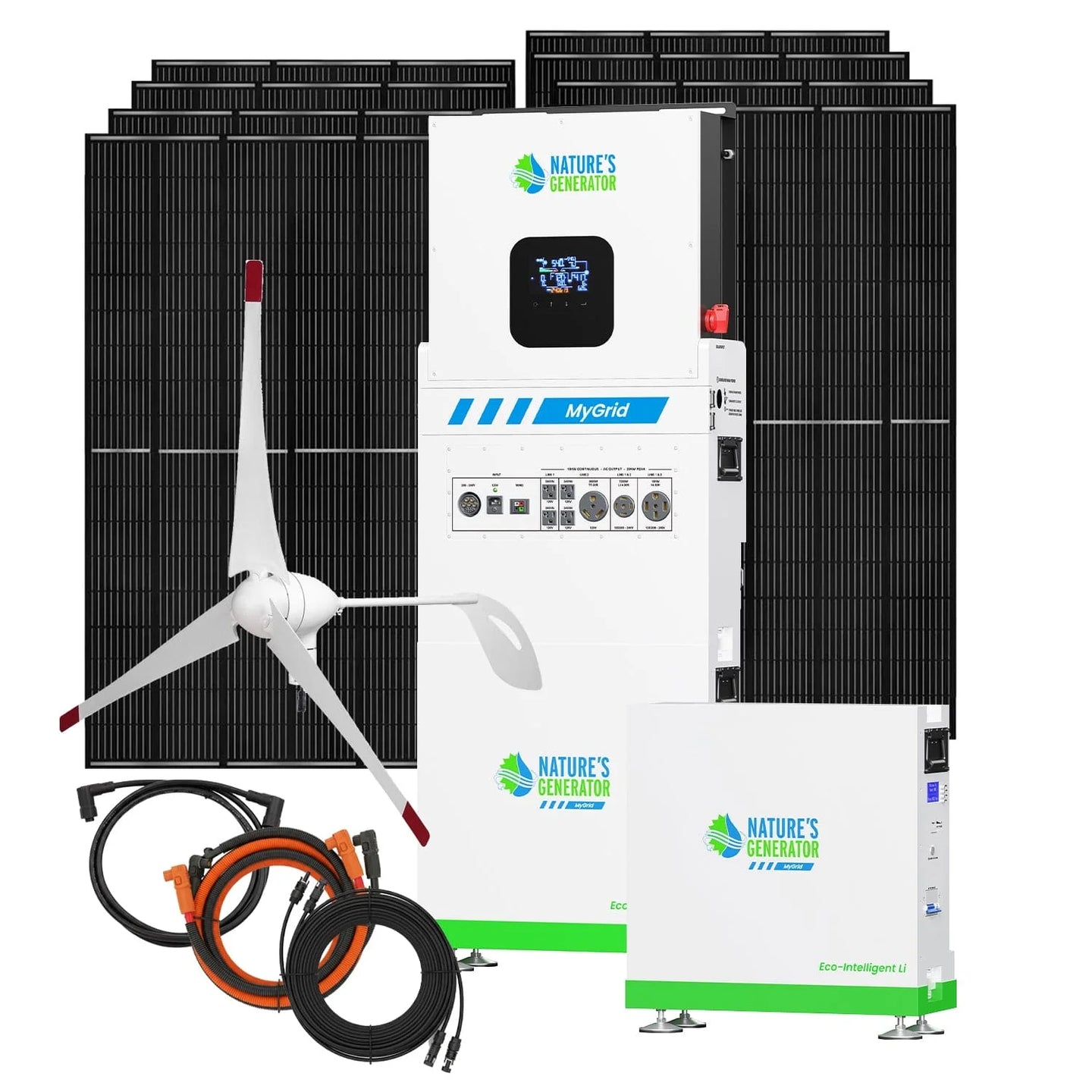

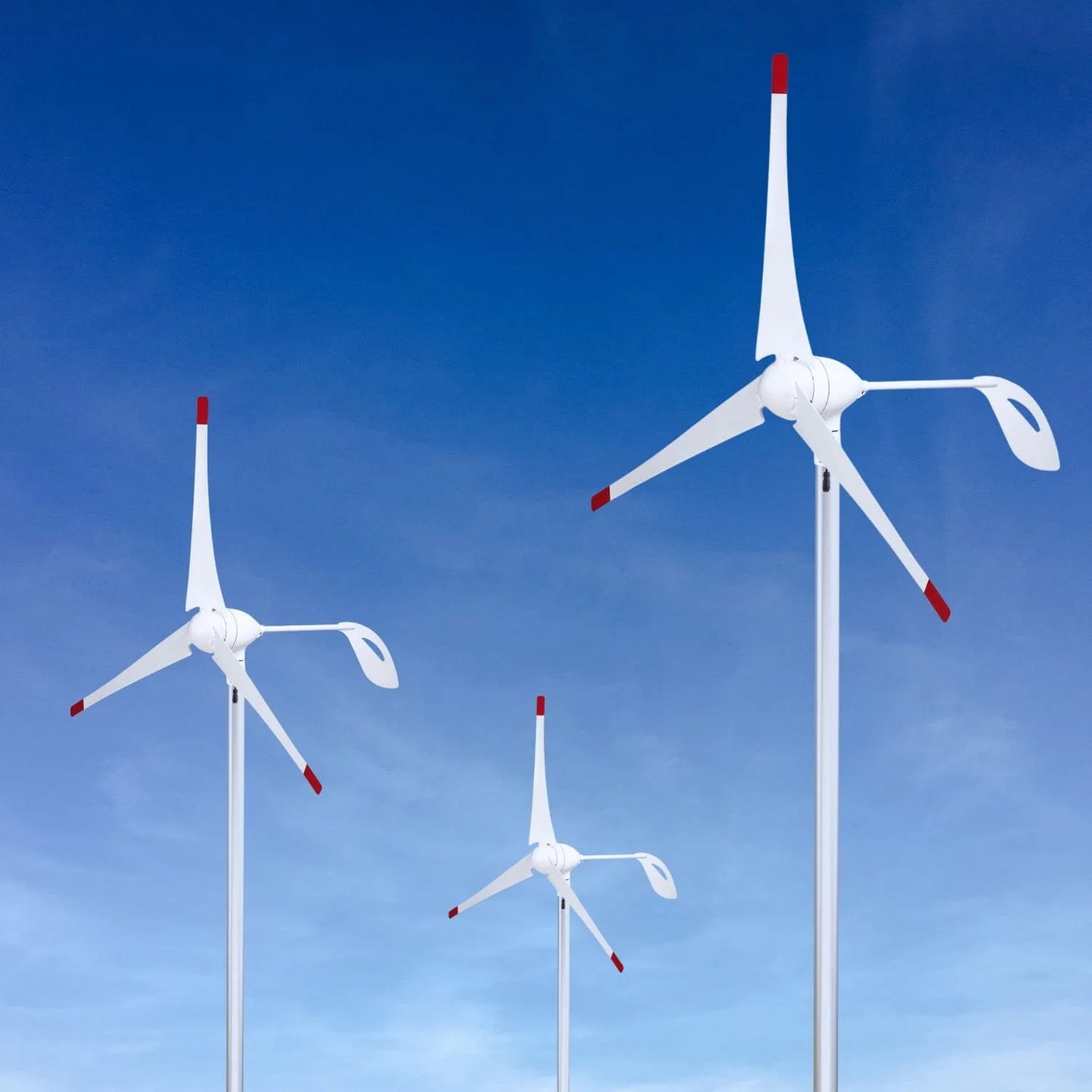

 Complete Solar + Wind Power Bundle: Comes ready with MyGrid 10K whole‑home generator plus solar panels and a 350 W wind turbine, giving you dual renewable charging sources right out of the box. Wind turbine offers supplemental charging during cloudy days or at night.
• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.

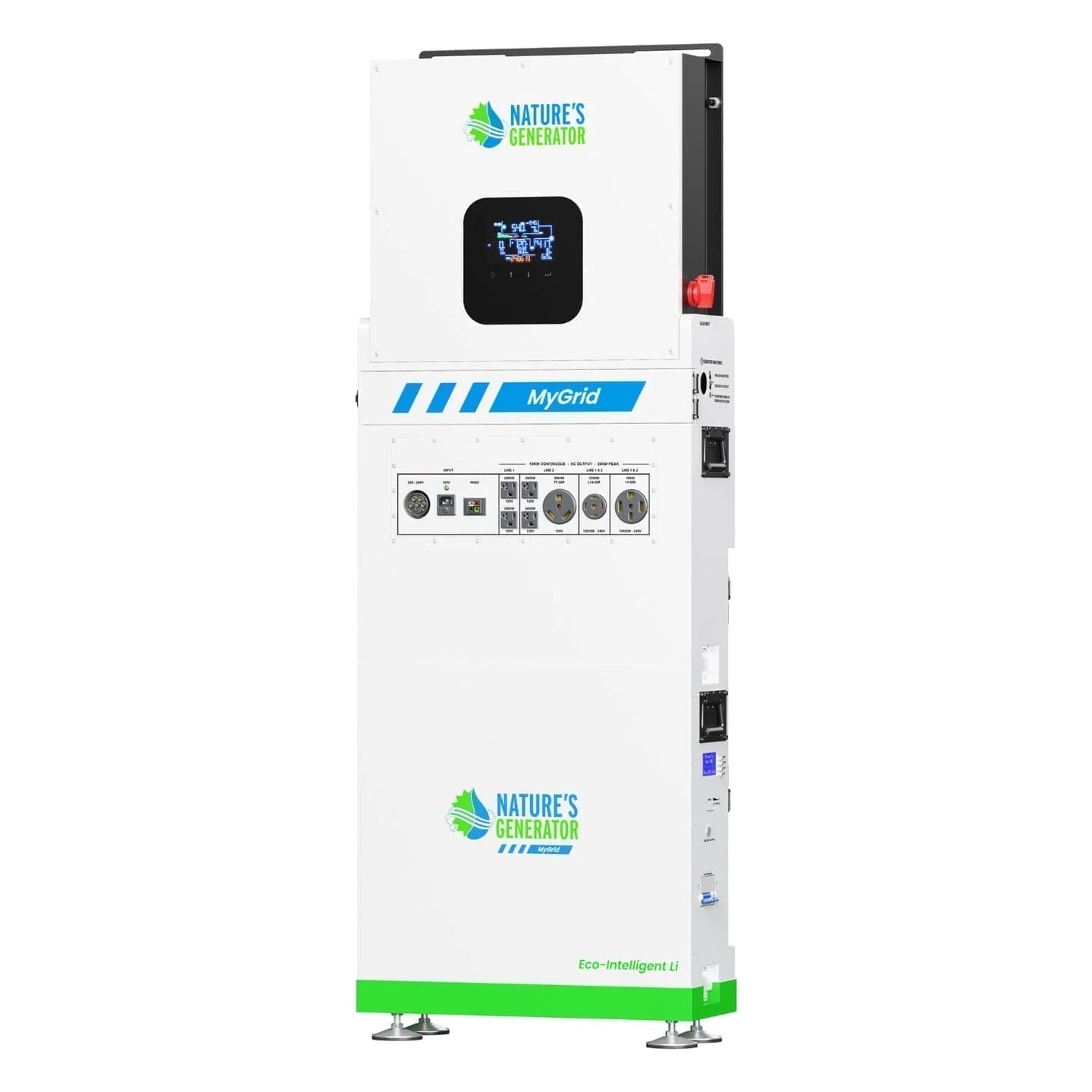

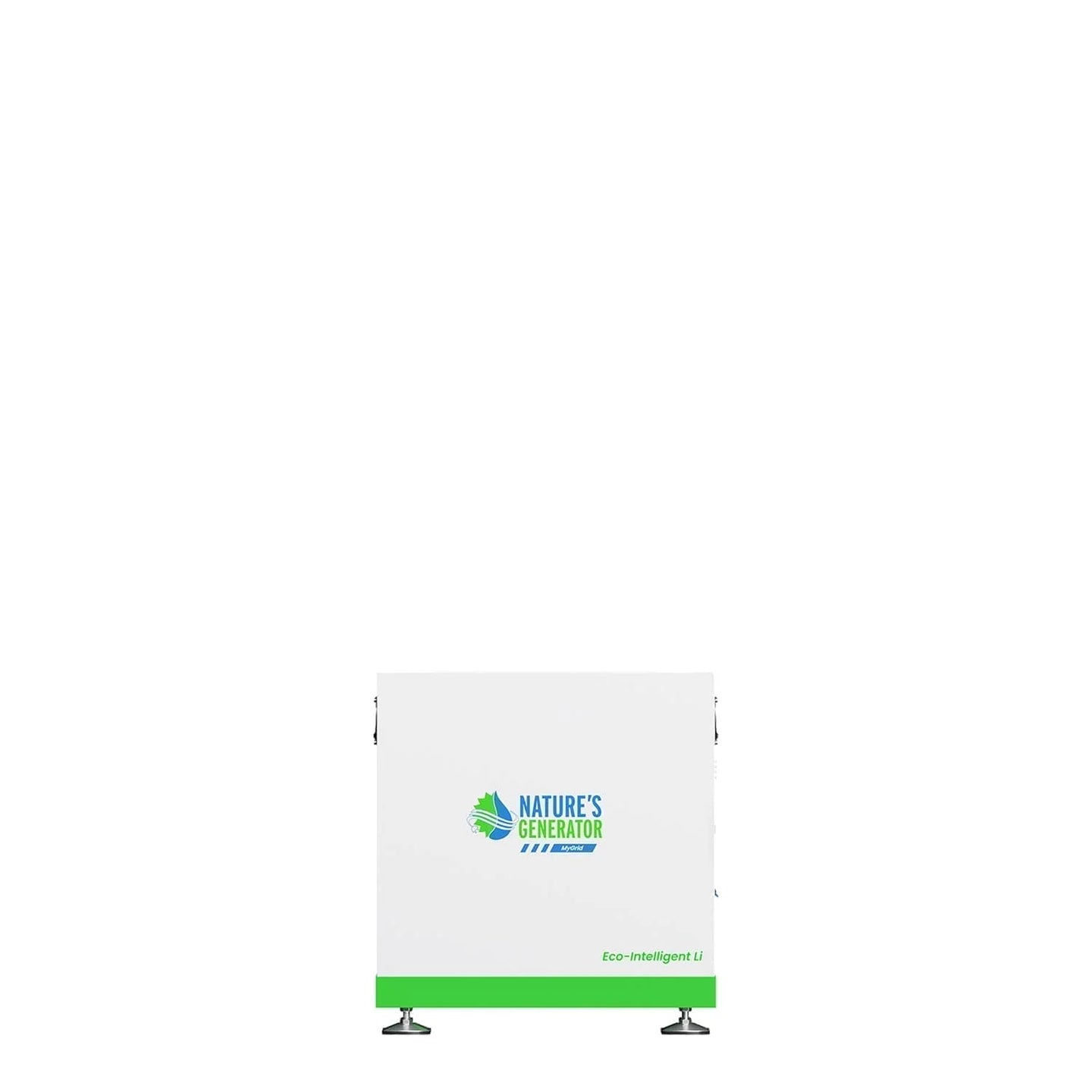

 Reliable Whole-Home Performance: 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels as energy needs grow.

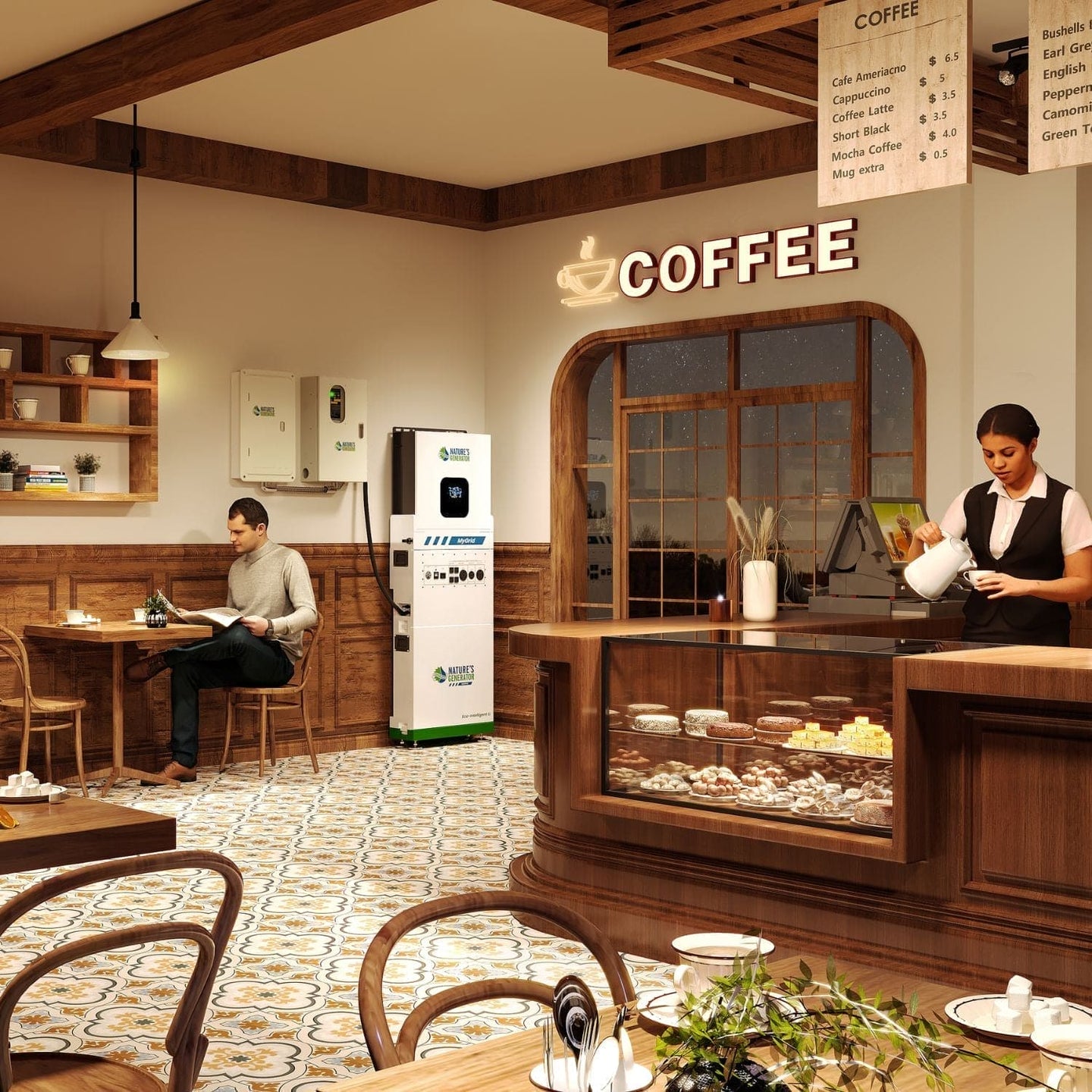

 Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
 Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime.
 Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners and renters.
 Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.

Features

Engineered for whole-home capability, the MyGrid 10K delivers high-capacity power, flexible charging, and reliable performance for any energy demand.

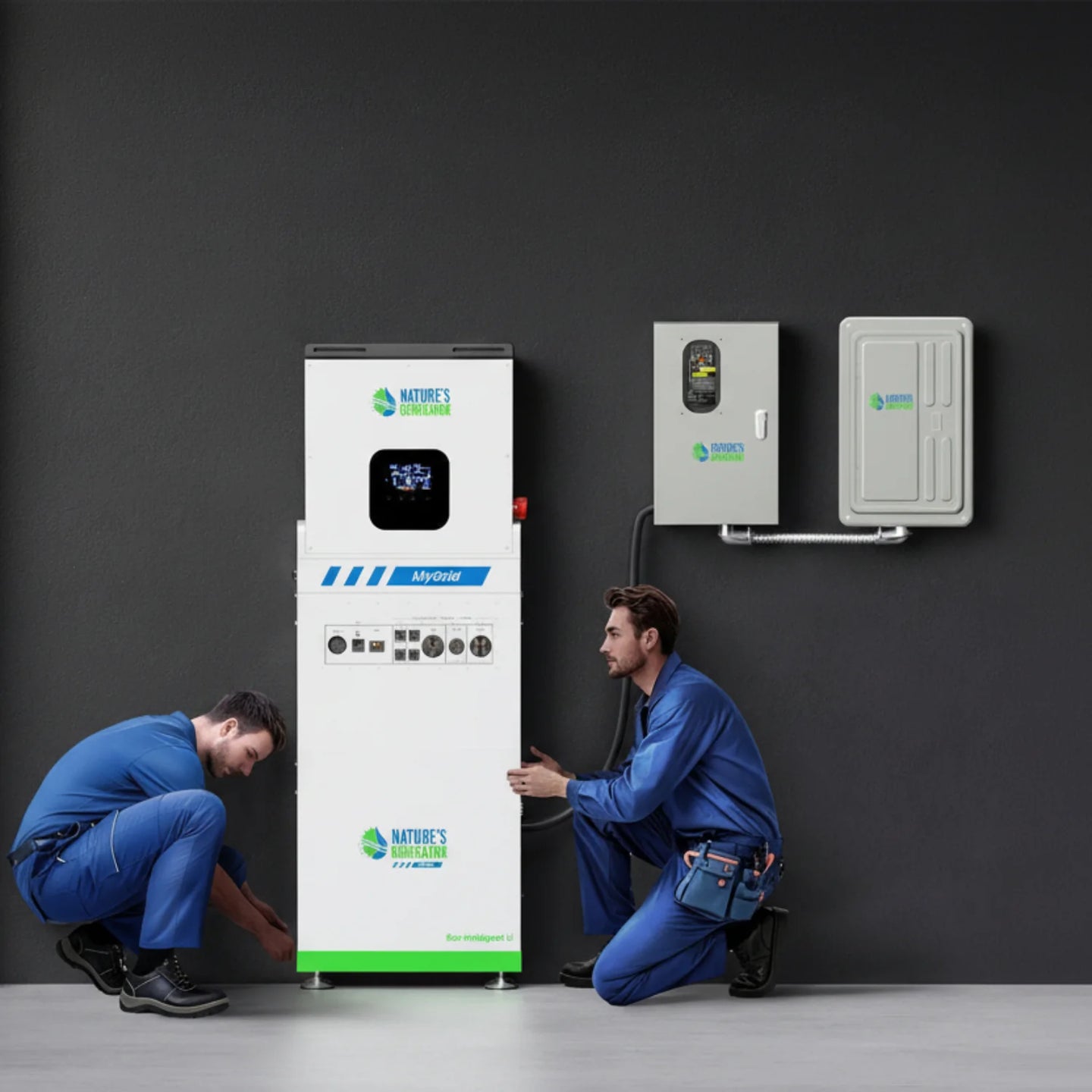

  • Setup in minutes: Get instant home backup power with a fast, hassle-free installation.
  • Renter Friendly: Enjoy whole-home power without permanent wiring or modifications.

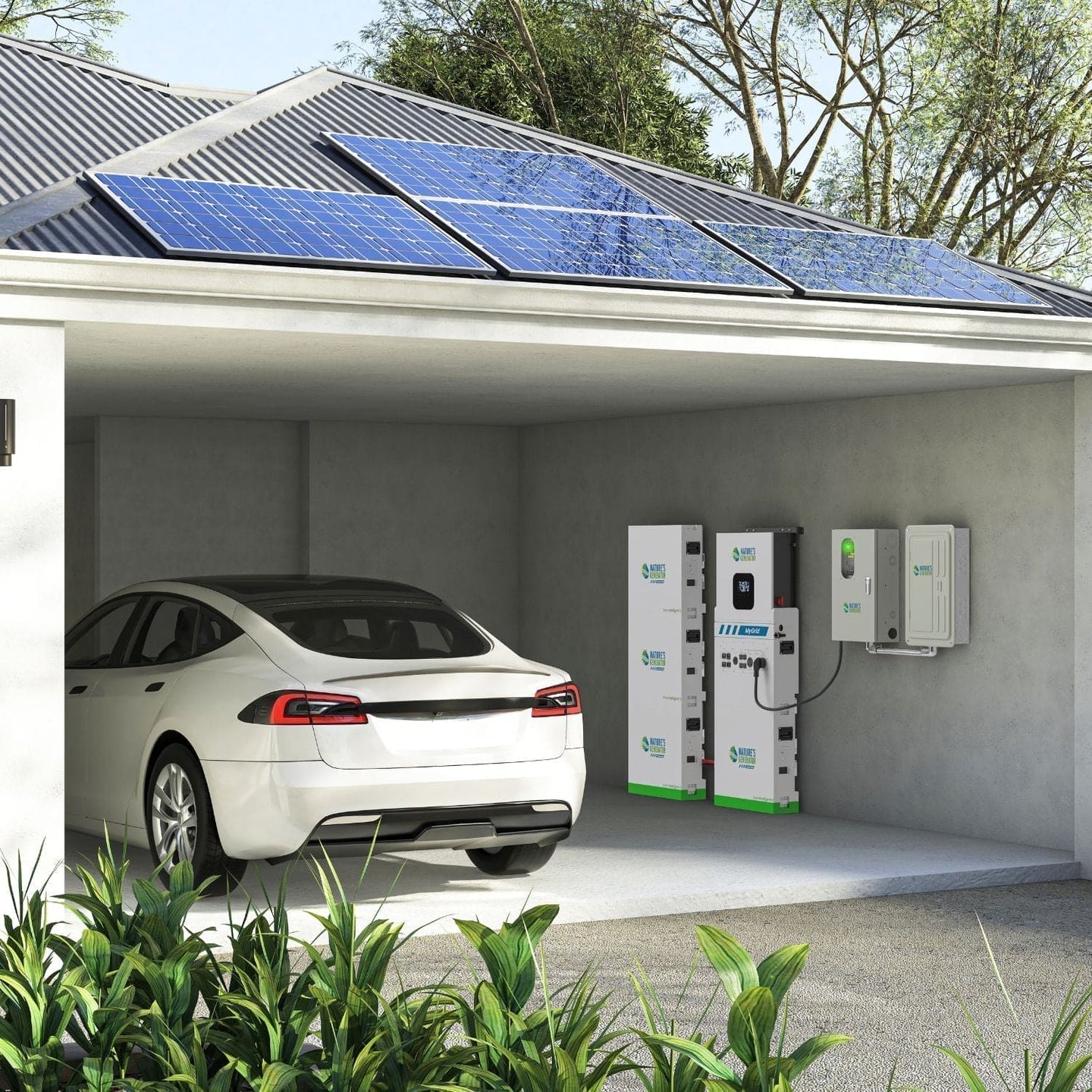

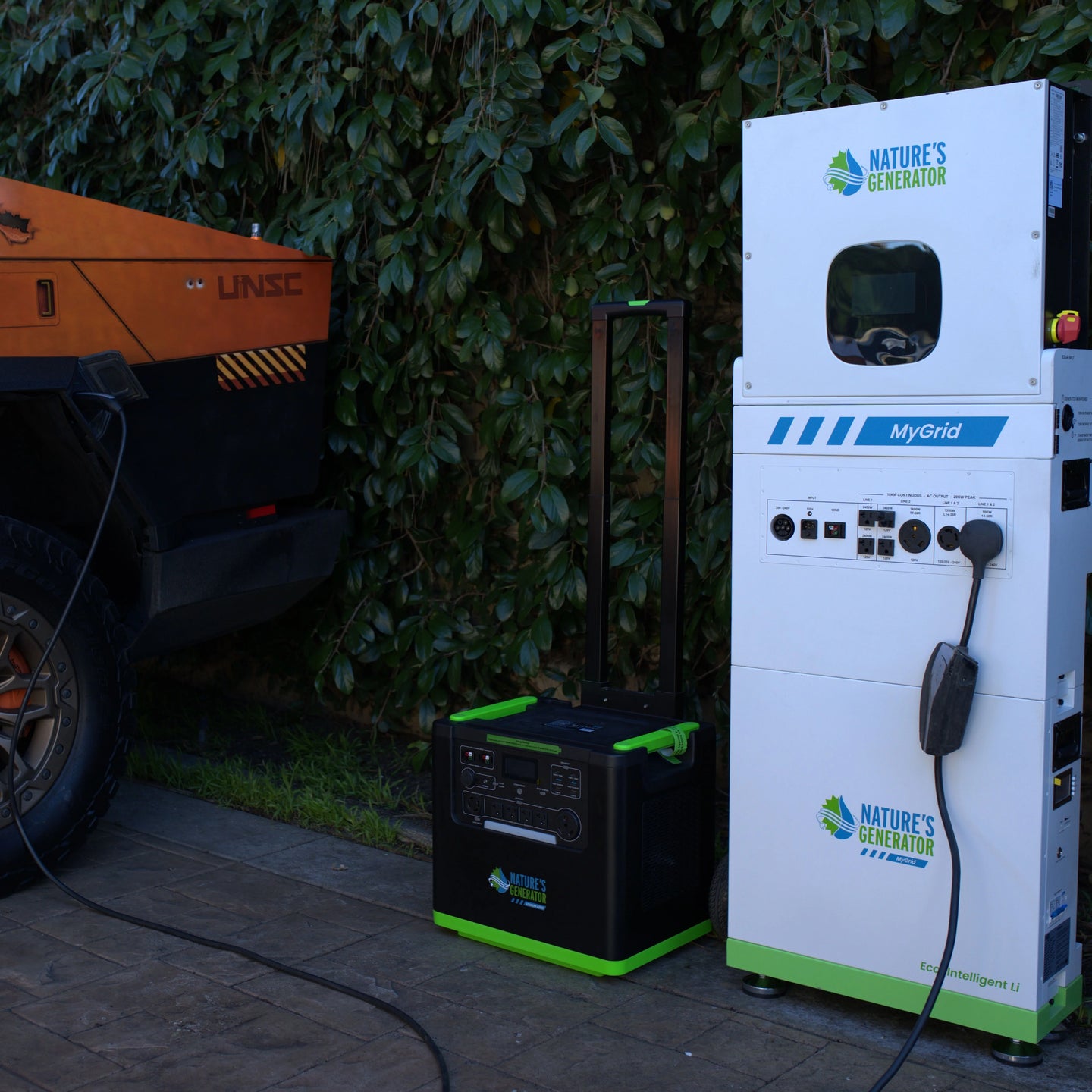

  • EV to Home Compatible: Easily transfer energy between your EV and home for ultimate flexibility
  • Powerful 10KW 10,496Wh: Delivers robust, long-lasting energy to support essential circuits and heavy loads.

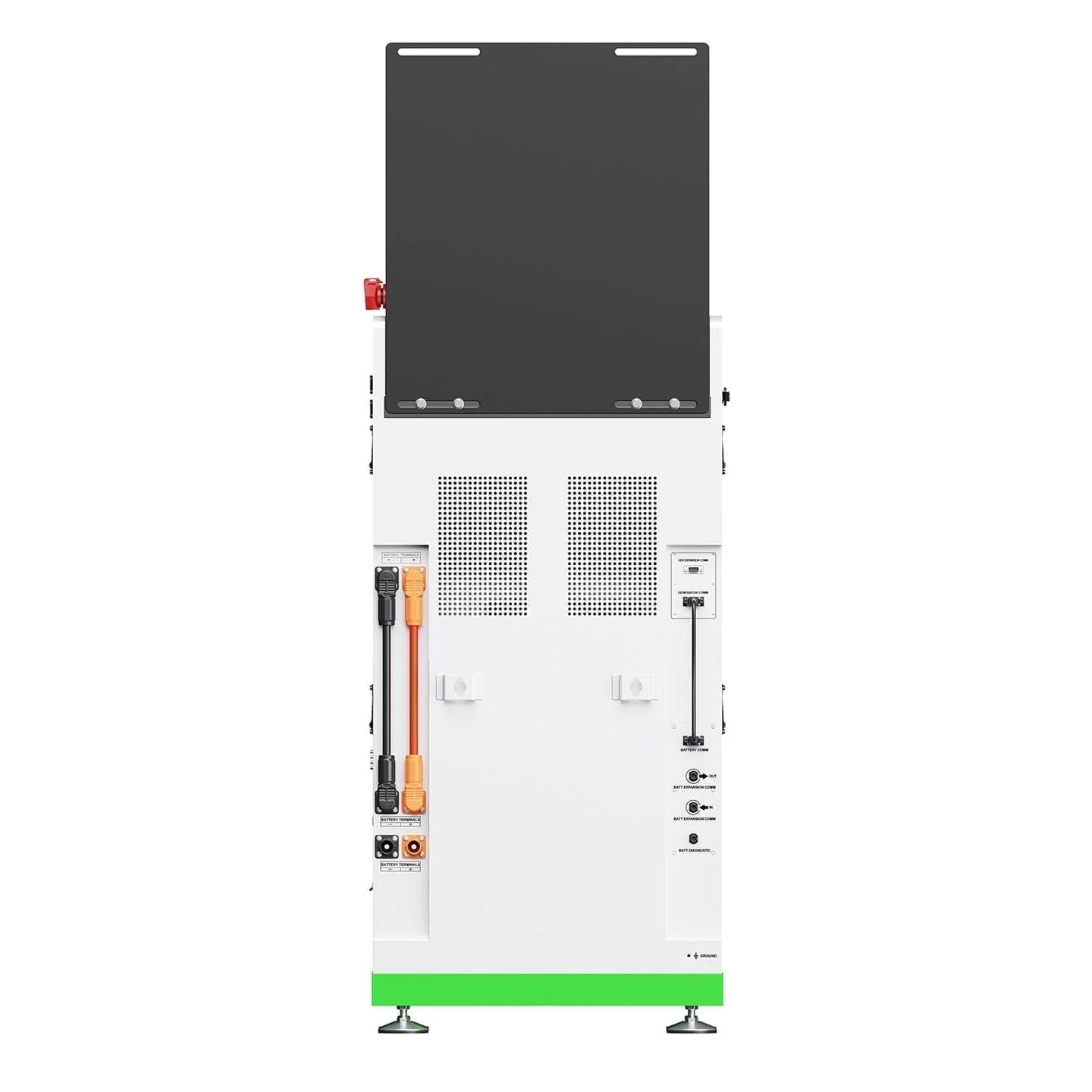

Port and Connection Guide

  1. Generator LCD Display
  2. Input Ports
  3. Output Ports
  4. Solar Battery
  5. Communication Ports
  6. Battery Terminals

Tech Specs

Find all the essential technical details of the MyGrid 10K, including power output, capacity, and system specifications.

Inverter

  • Output Continuous Power: 10,000W
  • Output Peak Power: 20,000W
  • Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
  • Output Frequency: 60Hz
  • Output Power Form: Pure Sine Wave
  • Auto Switching: 20ms

Battery

  • Capacity: 51.2V 205Ah (10496Wh)
  • Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
  • Cycle life: 6000 Cycles
  • Self Discharge: Recommended recharging every 6 months

Charges

  • 120Vac Charger: 1000W
  • 208Vac or 240Vac Charger: 4500W
  • Wind Charger: 350W
  • Solar Charger: 12,000W 120Vdc-550DVdc
  • Solar Charge Mode: MPPT

Ports

Output Ports

  • 4x NEMA 5-20R Outlet
  • 1x NEMA TT-30R Outlet
  • 1x NEMA L14-30R Outlet
  • 1x NEMA 14-50R Outlet

Input Ports:

  • 2x Solar Input Ports
  • 1x Wind Input Port
  • 1x 120Vac Input Port
  • 1x 208Vac or 240Vac Input Port

General

  • Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
  • Storage Temperature: 14 – 113°F (-10 – 45°C)
  • Battery Charging Temperature: 32 – 113°F (0 – 45°C)
  • Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)

Warranty

5 Years Limited Warranty

Dimension and Weight

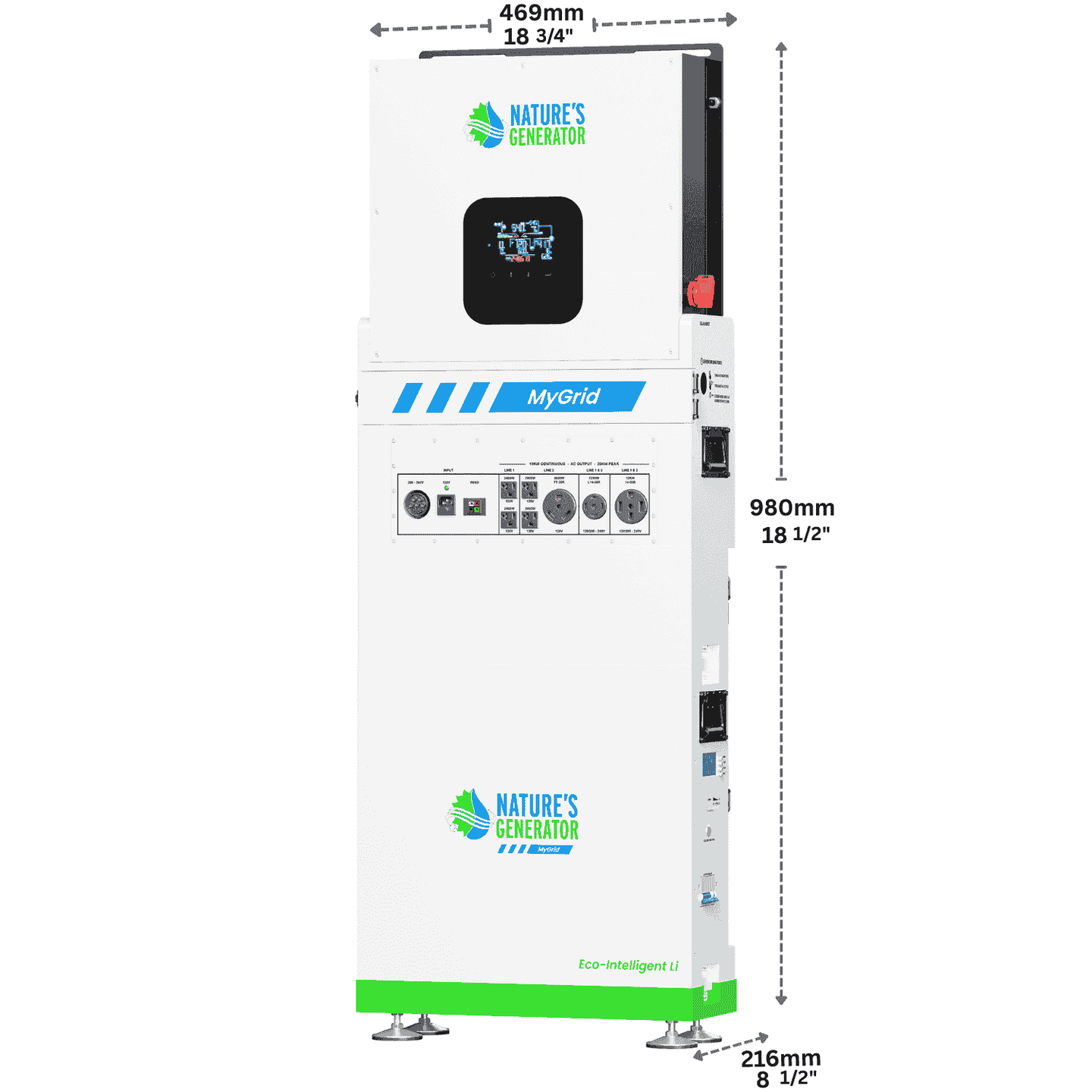

  • Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
  • Generator Weight: 152 lbs (69 kg)
