Product Description

12-Circuit 30A Transfer Switch + 30A Inlet Box

 Safe Manual Power Switching: Provides a secure, non-automatic way to connect your generator to your home’s electrical system, giving you full control over power during an outage.
• 30A Power Capacity with Flexible Circuit Support: Rated for 30 amps at 120/240V, supporting up to 12 circuits (configurable as twelve 120V circuits or six 240V circuits) to power essential home loads.
• Precise Circuit Control & Load Management: Manual selector switches allow you to choose and manage specific circuits efficiently while preventing backfeeding and protecting your electrical system.

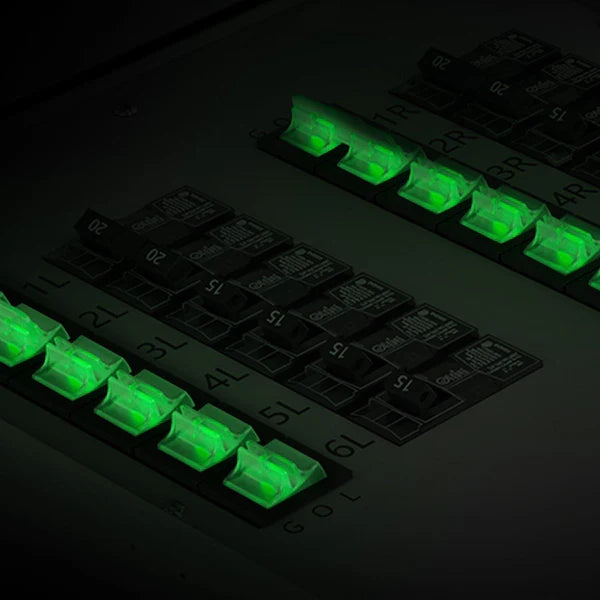

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.

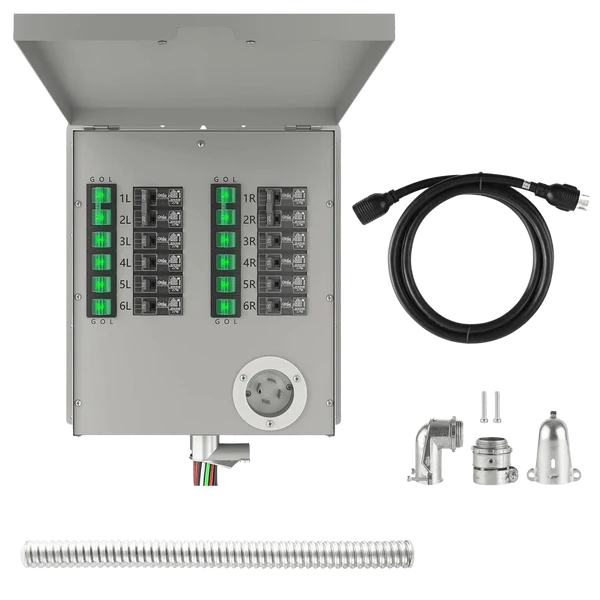

• Complete Generator Connection Kit: Includes a L14-30P 30A power inlet, 30A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.

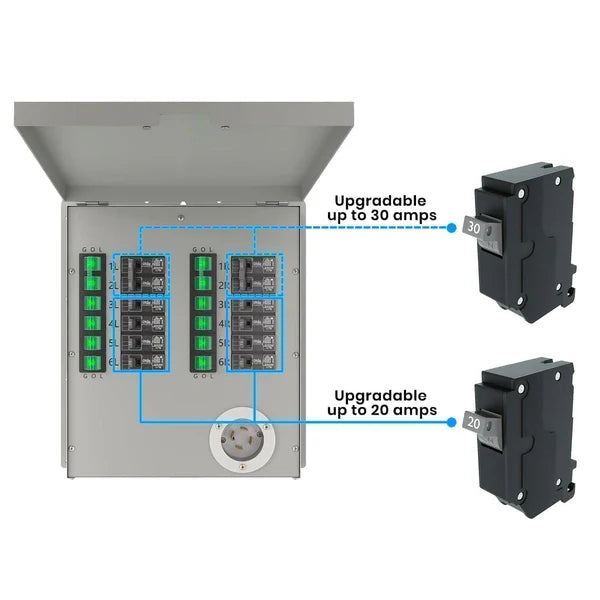

Pre-installed Breakers

Type Quantity Wire Gauge Upgradable to
2-Pole 20A Breaker 2  10 AWG 30A Breaker
1-Pole 15A Breaker 8  12 AWG 20A Breaker



Pre-installed Backup Power Conductors

Type Wire Gauge
Line 1  10 AWG
Line 2  10 AWG
Neutral  10 AWG
Ground  12 AWG

Features

Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.

  • Safe Power Transfer Solution: Provides a secure way to connect your generator to home circuits while preventing dangerous backfeeding.
  • Multi-Inlet Position: Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
  • Built for Backup & Emergency Use: Ideal for outages and emergency situations, ensuring reliable power delivery to essential home circuits.
  • Safe & Reliable Design: Engineered for dependable performance, giving peace of mind during power transfers.

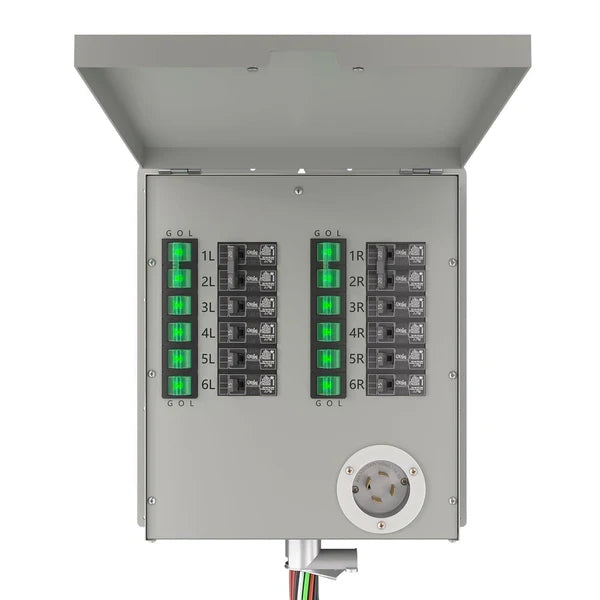

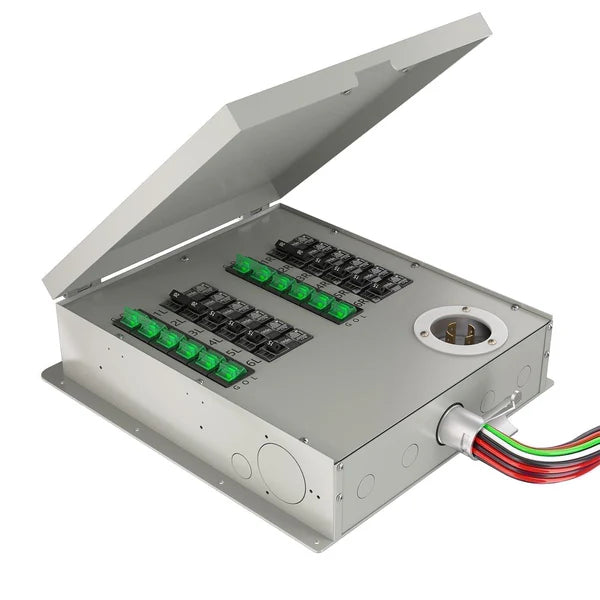

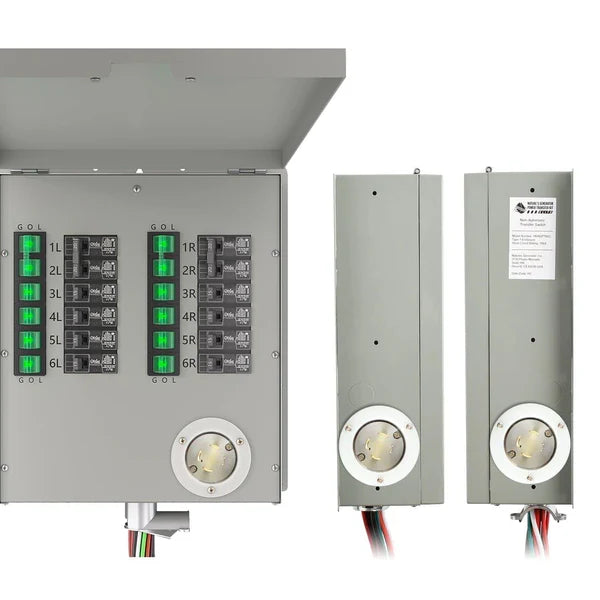

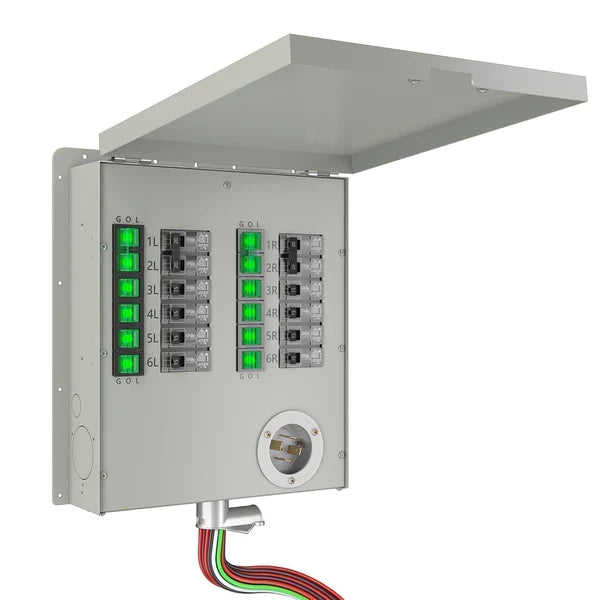

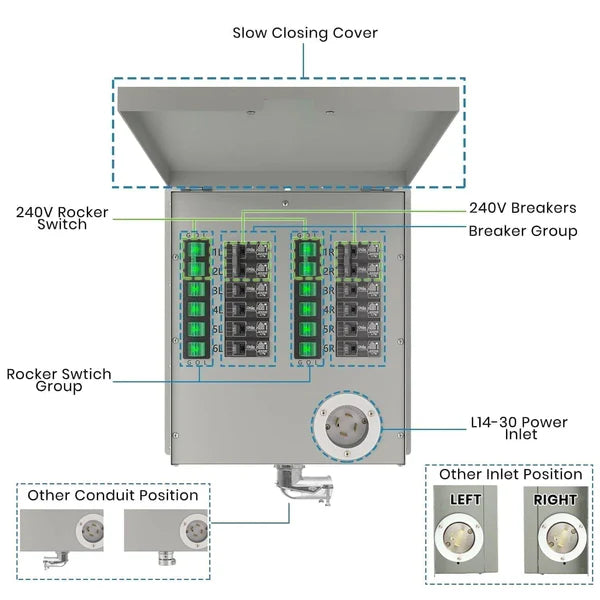

120V/240V 12-Circuit 30A Manual Transfer Switch

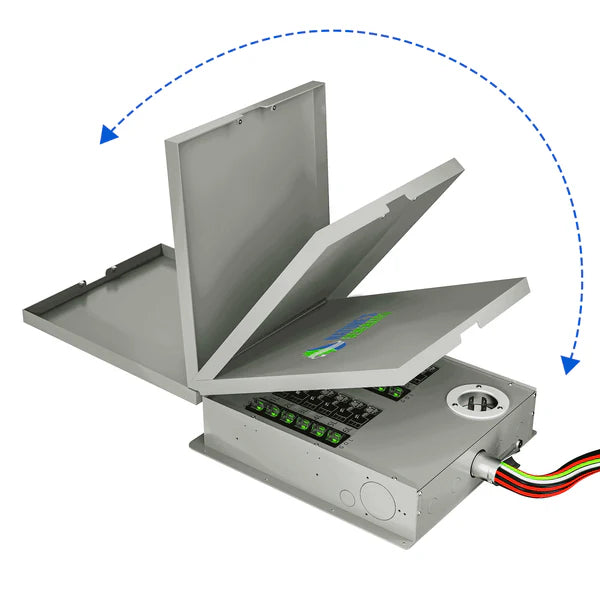

  1. Slow Closing Enclosure
  2. Rocker Switches
  3. Breakers
  4. Compartment Cover
  5. NEMA L14-30P
  6. Flush Mounting Holes
  7. Knockouts
  8. Power Inlet Knockouts

Tech Specs

Find all the essential technical details of your manual transfer switch, including circuit support, amperage, and installation features.

50A Manual Transfer Switch Tab
Specification
  • Voltage: 120V/240V
  • Inlet: NEMA L14-30P inlet
  • Number of Circuits: 12 circuits

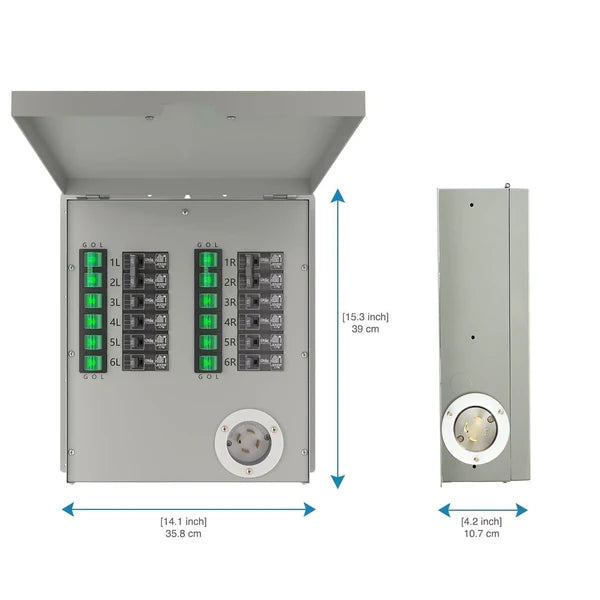

Dimension and Weight
  • 14.1 inch x 15.3 inch x 4.2 inch (35.8 cm x 39 cm x 10.7 cm)
  • 31.9 lbs. (14.5 Kg)
