410 Watt Monocrystalline Solar Panel (2 Pack)
• High-output performance: Each panel is rated 410W of power, delivering a combined 820W total solar capacity to maximize energy production for residential, commercial, RV, or off-grid systems—even in low-light conditions.
• Advanced mono PERC & half-cell technology: Features Mono PERC cells with a 108 half-cell design and 10-busbar layout for improved current collection, reduced losses, and stronger performance in low-light or partial shade conditions.
• Durable, weather-ready build: Built with a lightweight anodized aluminum frame and 3.2 mm ultra-clear tempered glass, these panels are engineered to withstand challenging outdoor environments and harsh weather.
• Reliable, easy connections: MC4-compatible IP68 waterproof connectors ensure secure connections and long-term reliability for outdoor installations with minimal maintenance.
• Versatile installation: Suitable for roof mounts, ground mounts, tiny homes, and RV setups when paired with appropriate mounting hardware, making them flexible for many solar applications.
Compatibility Chart
| Model |
Compatible |
Notes |
| MyGrid 10,000W |
✔ |
Full support |
| Powerhouse 7200W |
✔ |
Full support |
| Lithium 6000W |
✔ |
Full support |
| Lithium 3600W |
✔ |
Full support |
Features
Explore the advanced panel technologies designed to deliver high efficiency, reliable performance, and consistent solar power for residential and off-grid systems.
-
10 Busbar Half-Cell Design: Improves current collection and reduces internal resistance for higher efficiency and more stable power output.
-
Half-Cut Cell Technology: Minimizes power loss and heat generation, delivering better performance in partial shading and high-temperature conditions.
-
PERC Technology: Enhances light absorption and energy conversion, allowing the panel to produce more power throughout the day.
-
20.97% Module Efficiency STC: Achieves high energy conversion, delivering greater power output and improved performance per square meter.
410W Rigid Solar Panel
-
Advanced Solar Cell Technology - Built with Mono PERC and half-cell design to boost energy conversion and low-light performance.
-
Efficient 10 Busbar Configuration - Improves current flow and reduces internal electrical resistance for better overall efficiency.
-
Durable Weather-Resistant Construction - Sturdy anodized aluminum frame and tempered glass protect panels against harsh outdoor environments.
Tech Specs
A closer look at output, efficiency, dimensions, and compatibility details.
Power Rating
-
Maximum Power (Pmax): 410W
-
Maximum Power Voltage (Vmp): 31.35
-
Maximum Power Current (Imp): 13.08
-
Open-circuit Voltage (Voc): 37.12
-
Short-circuit Current (Isc): 13.96
-
Module Efficiency STC (%): 20.97%
Dimensions & Characteristics

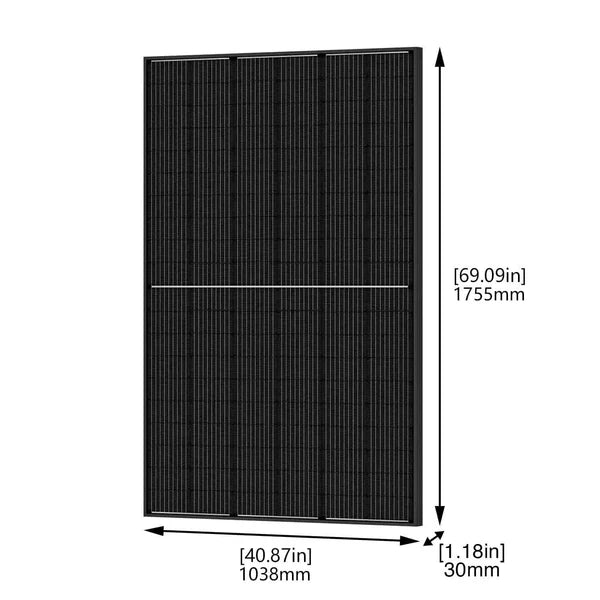

1755*1038*30mm(69.09*40.87*1.18 inch)
-
Cell Type: Mono PERC 182×91mm
-
No.of Half-cells: 108 (6×18)
-
Frame: Anodized Aluminum Alloy
-
Weight: 20.5 kg (45.19 lbs)
- Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Operation Temperature: -40℃~+85℃ (-40°F ~+185°F )
- Junction Box: IP68 Rated, connector compatible with MC4
- Output Cables: 1200mm (47.24 inch)
-
Fire rating: UL: Type 1, IEC: Class C
