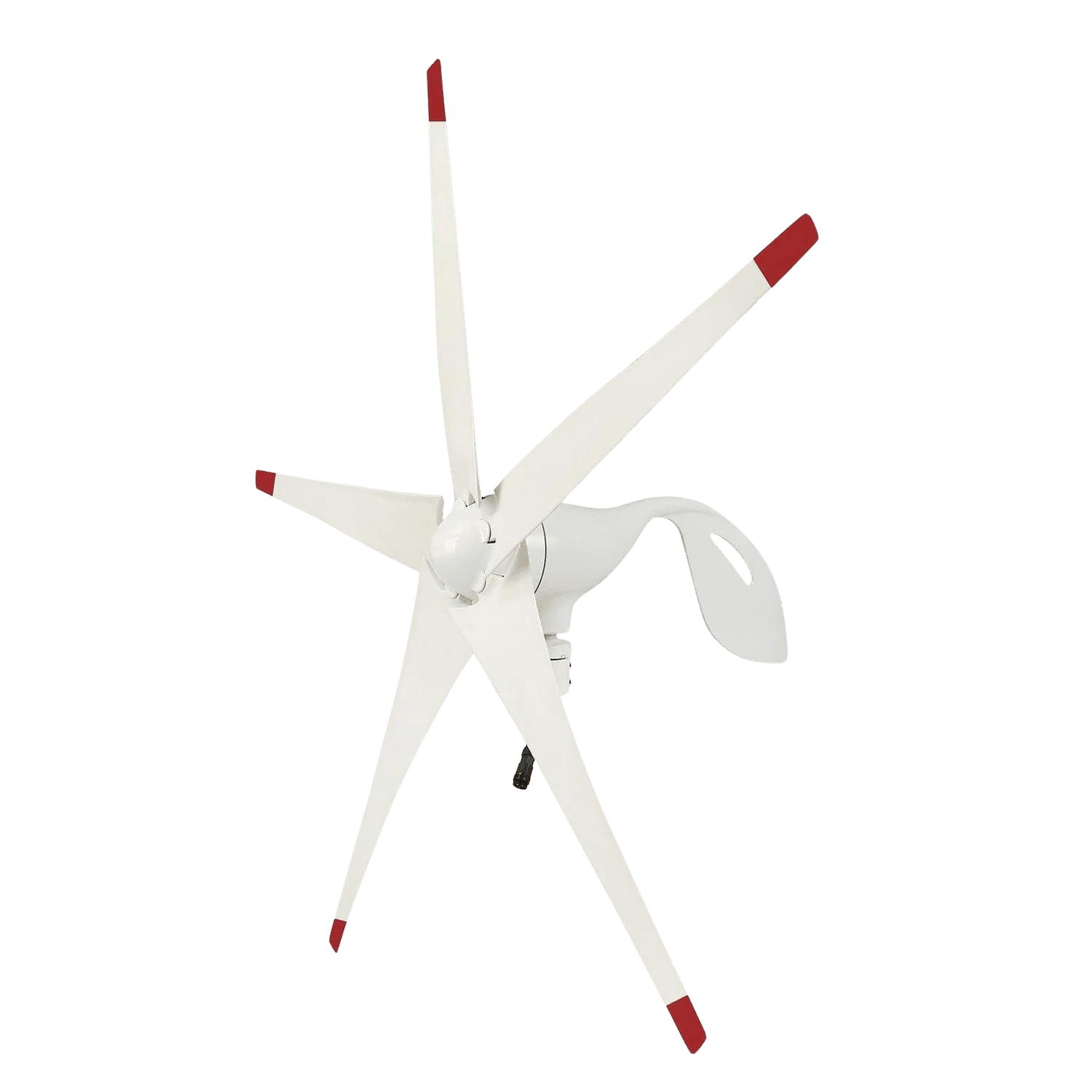

Nature's Generator Wind Turbine

Nature's Generator Wind Turbine

• Harness wind power for charging: Provides a renewable wind-powered charging option to complement solar and AC inputs, keeping your generator topped up at night or when sunlight is limited.
• Rated for real wind conditions: Produces up to 150 W of power at ~27 mph wind speeds, providing a reliable supplemental energy source in breezy environments.

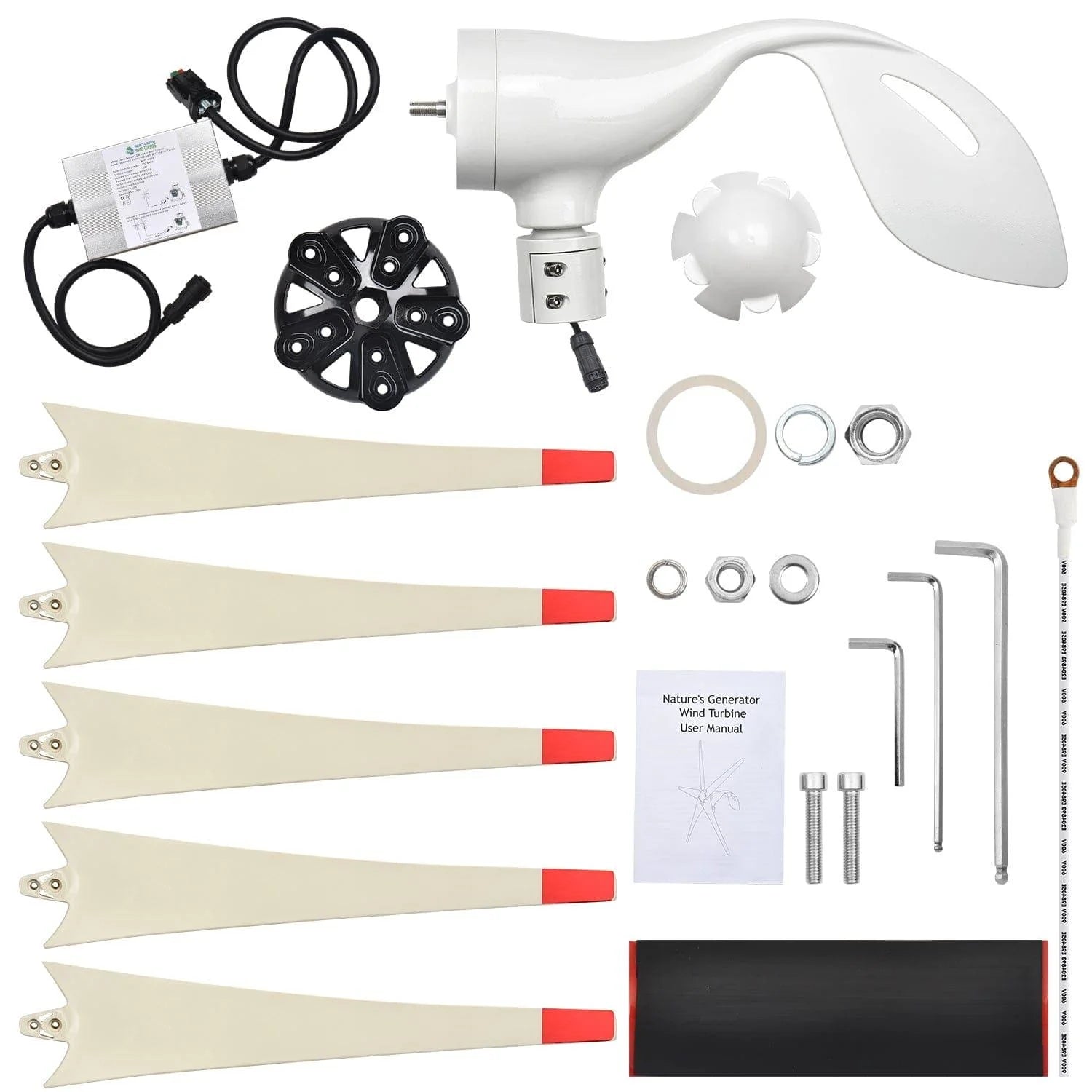

• Complete electrical system included: Comes with a controller box, 100 ft of wind-rated cable, hub, and hardware (some assembly required). Note: Mounting pole is not included.
• Durable, weather-resistant construction: Built with a cast aluminum alloy body with powder coating and fiberglass nylon blades to withstand outdoor elements.
• Built-in safety features and seamless integration: Includes over-voltage protection, over-current protection, reverse charging protection, and a resettable fuse. Engineered specifically for Nature’s Generator systems to extend runtime and improve overall energy availability.

Compatibility Chart

Features

Explore the core capabilities that help you capture wind energy efficiently and reliably.

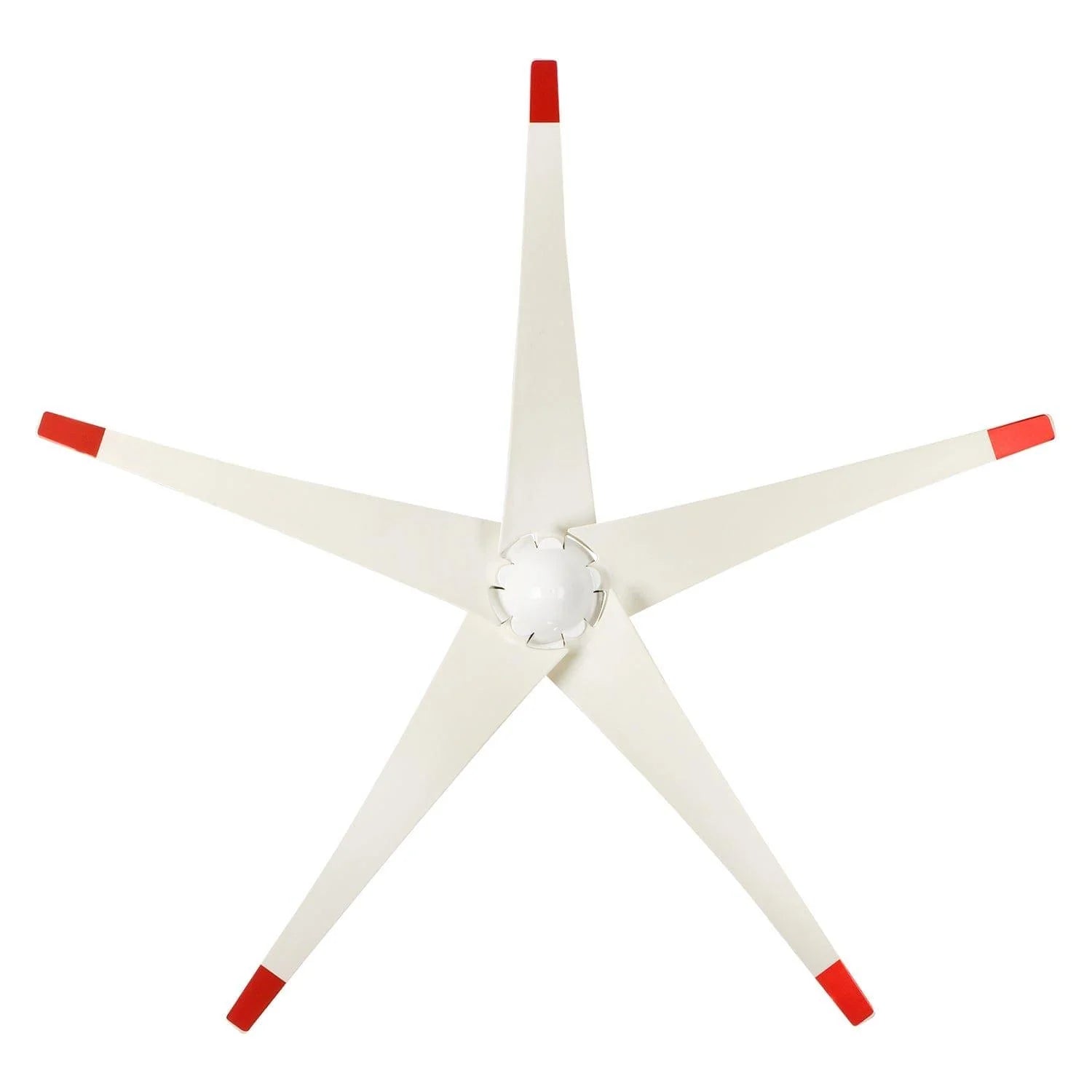

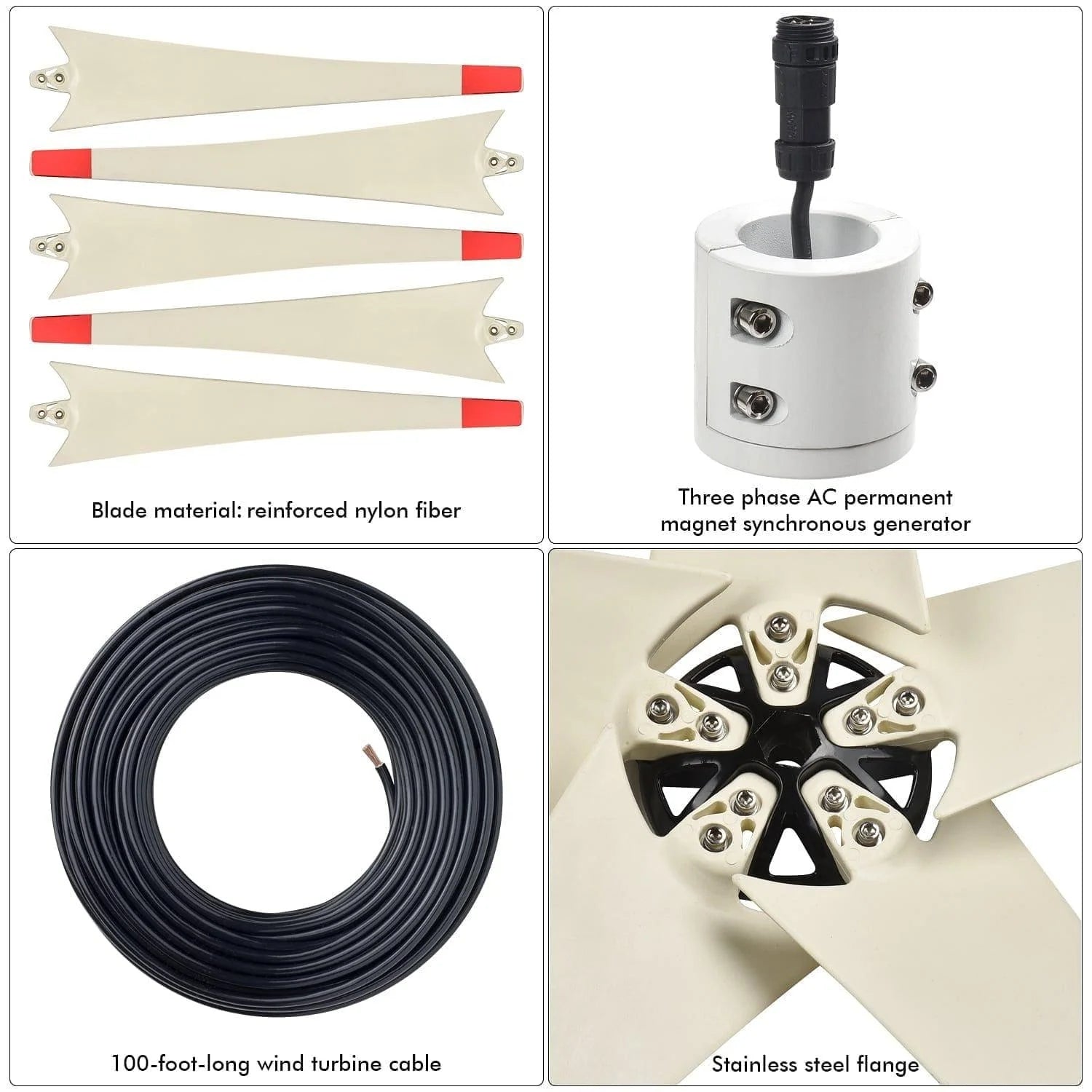

• Reinforced Nylon Fiber Blades: Strong, lightweight blades engineered for durability and efficient wind capture.
• 3-Phase Permanent Magnet Synchronous System: Delivers stable, efficient power generation across a wide range of wind speeds.
• Stainless Steel Flange: Provides a secure, corrosion-resistant mounting base for long-term outdoor use.
• 100-Ft Long Wind Turbine Cable: Offers flexible installation and extended reach between the turbine and power system.

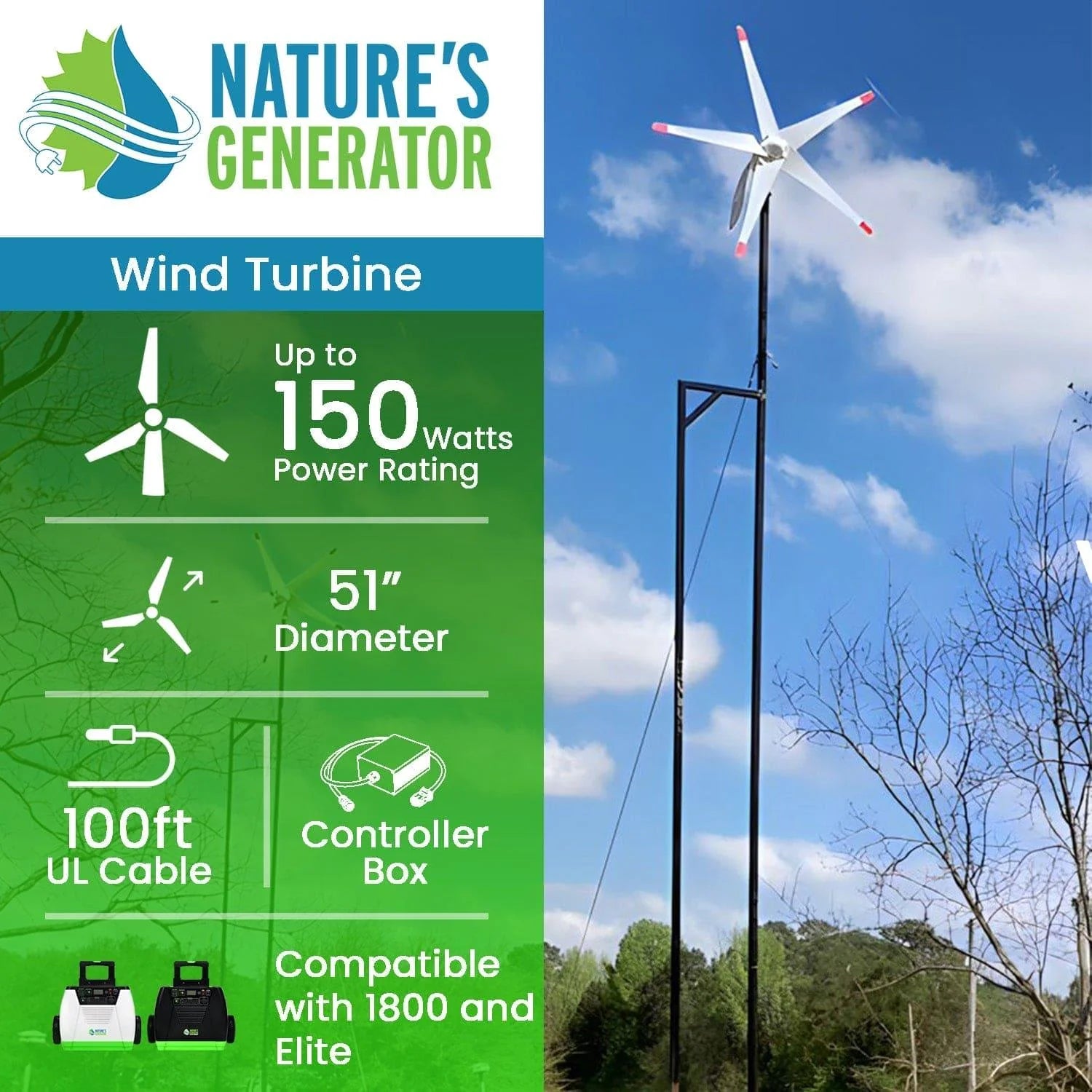

150W Wind Turbine

1. Reliable Wind Charging Option Provides a renewable charging method that complements solar and AC inputs.
2. Expandable Wind Setup Compatible with systems designed for wind input, increasing total renewable generation.
3. Built for Everyday Use Works at typical wind speeds (e.g., 27 mph) to generate usable power for your generator.

Tech Specs

A closer look at output, efficiency, dimensions, and compatibility details. Technical Overview.

Power Rating

• Rated power: 150 watts @ 27 MPH
• Maximum wind speed: 110 mph

Connectors

• Wind turbine cable connectors: weatherproof M19 3P connectors
• Wind input connectors: Anderson connectors
• Yaw: fits 1.5 Inch schedule 40 pipes or towers

Material

• Wind turbine blades: fiberglass nylon composite
• Wind turbine body: cast aluminum alloy with powder coating
• Wind turbine cable: 12AWG pure copper cable

General

• Rotor diameter: 51 in / 1.3 m
• Weight : 22 lbs/10 kg, not including cables and controller box
• Certifications: CE Rohs
