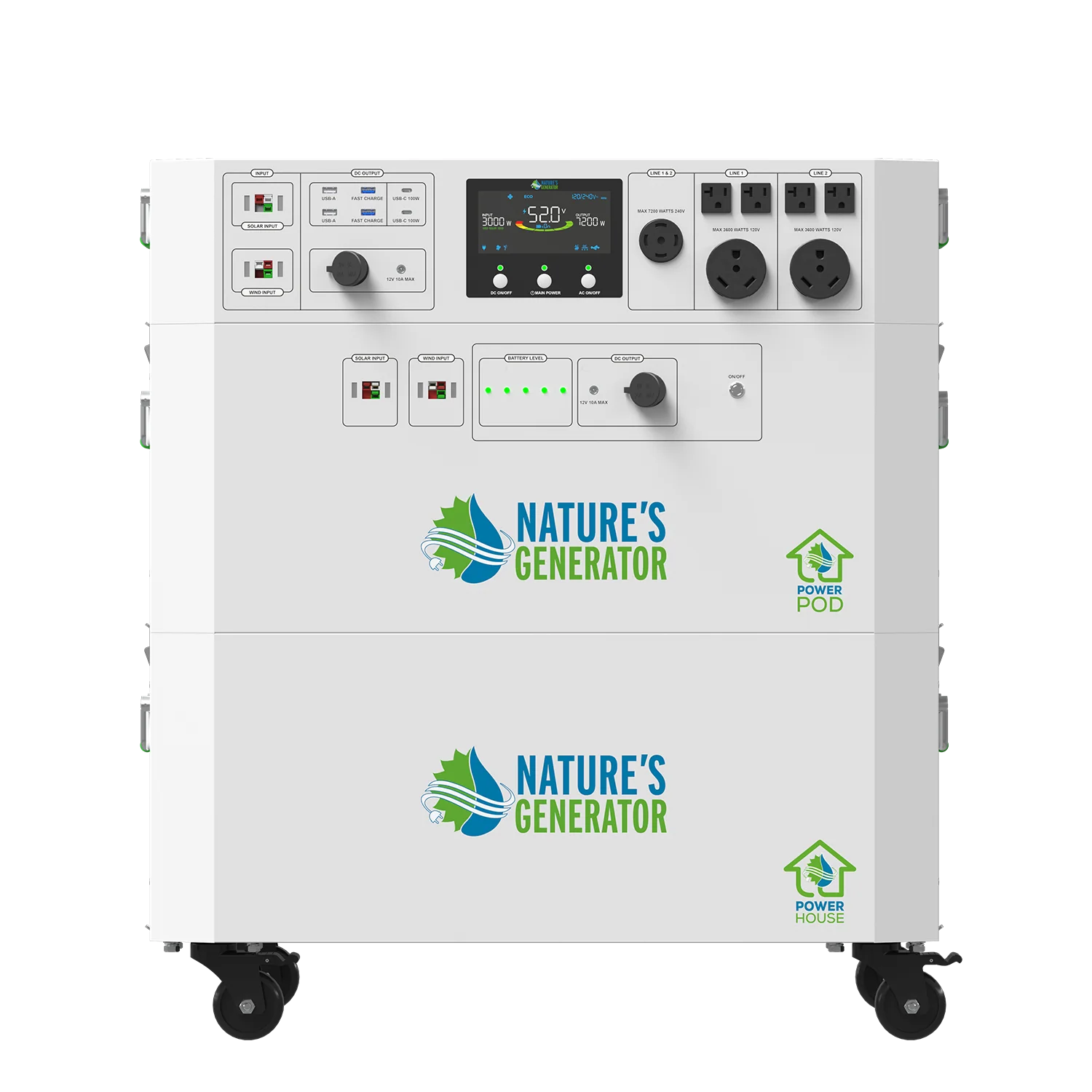

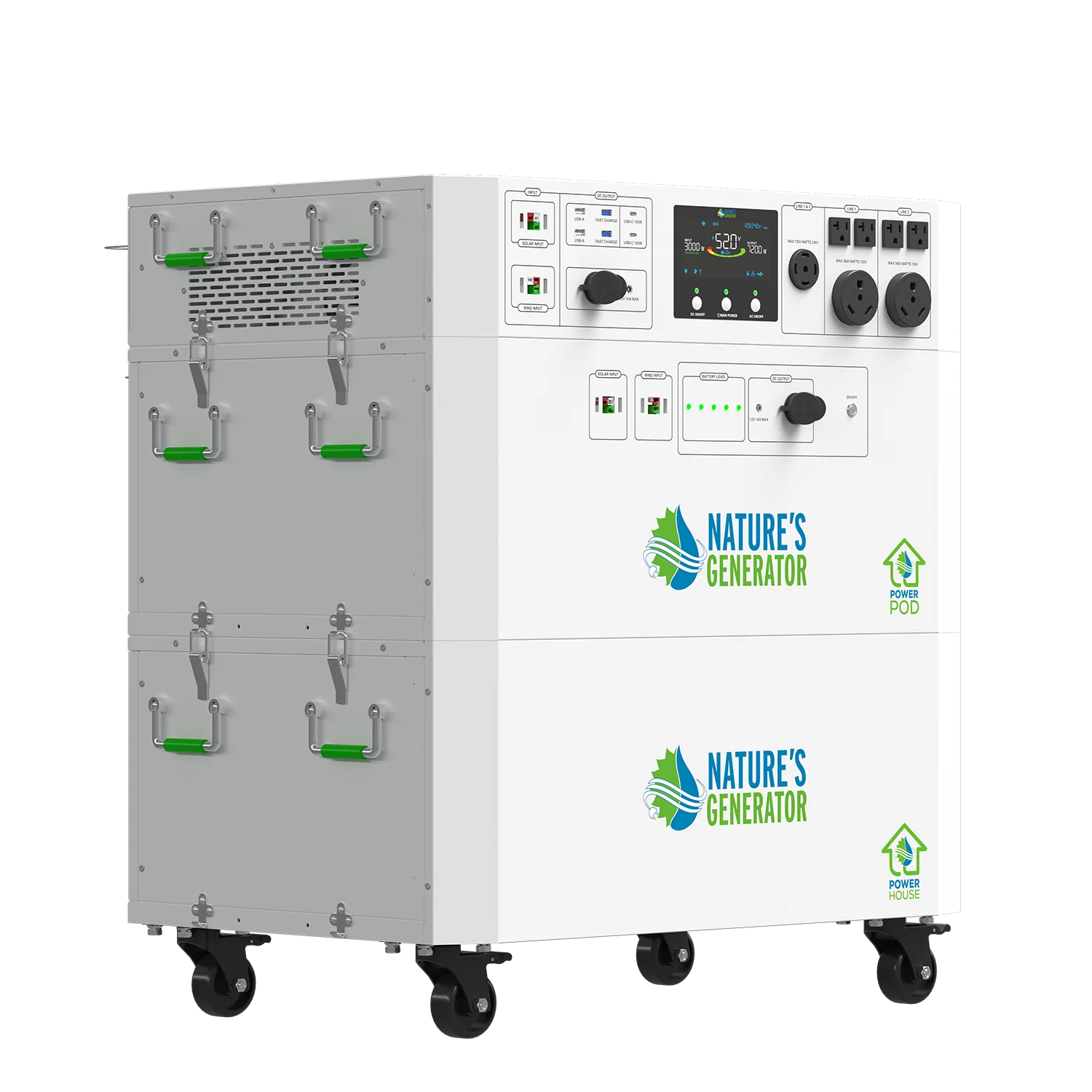

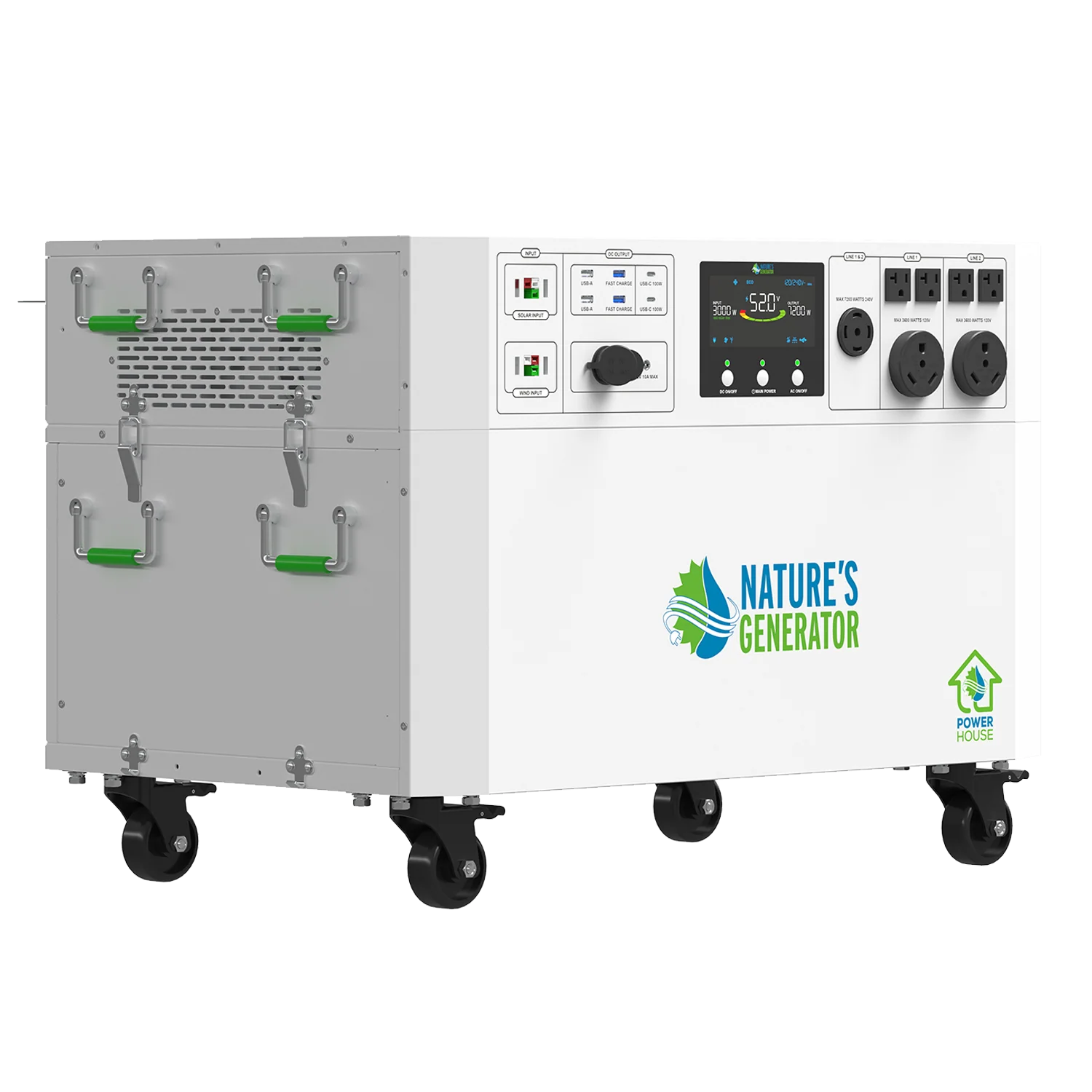

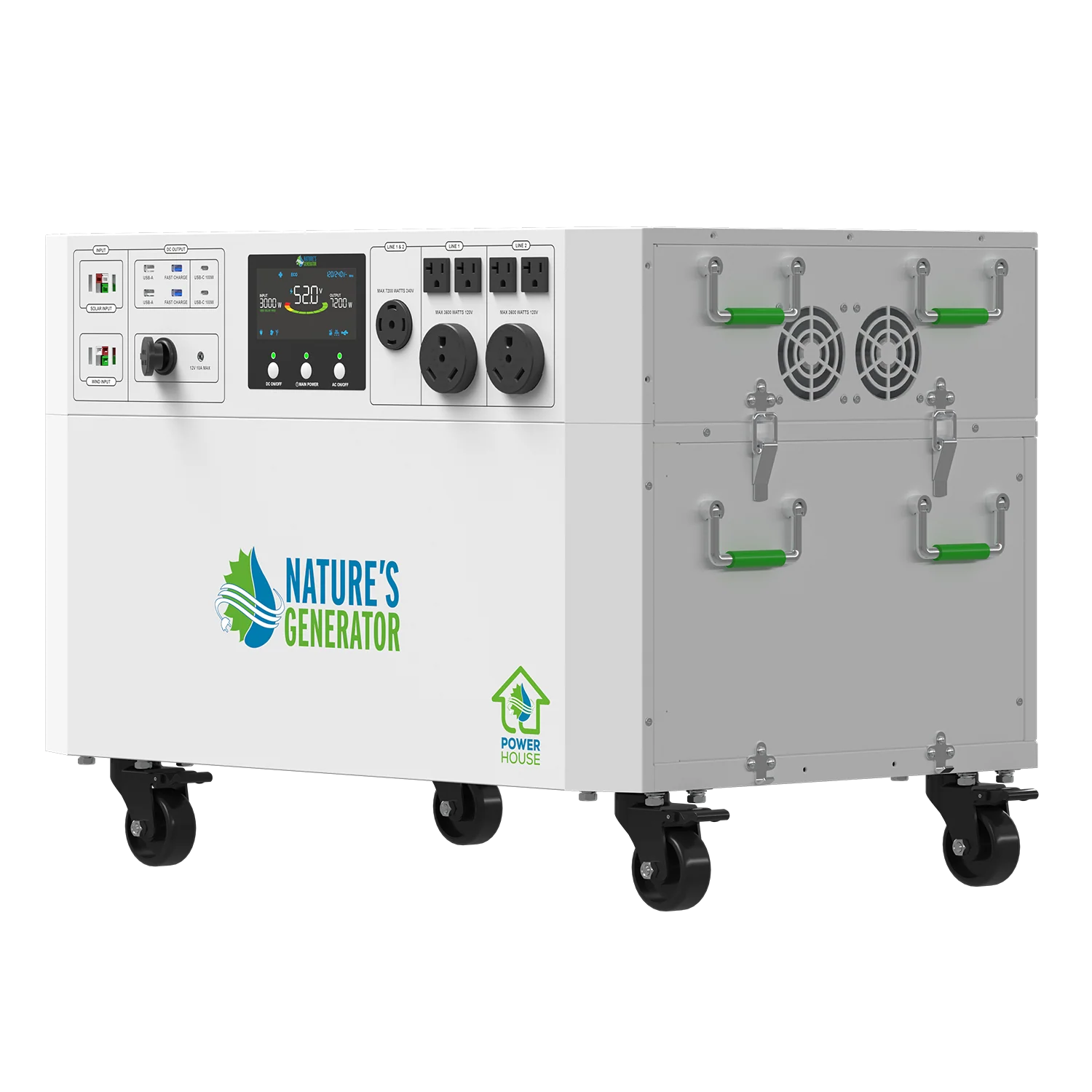

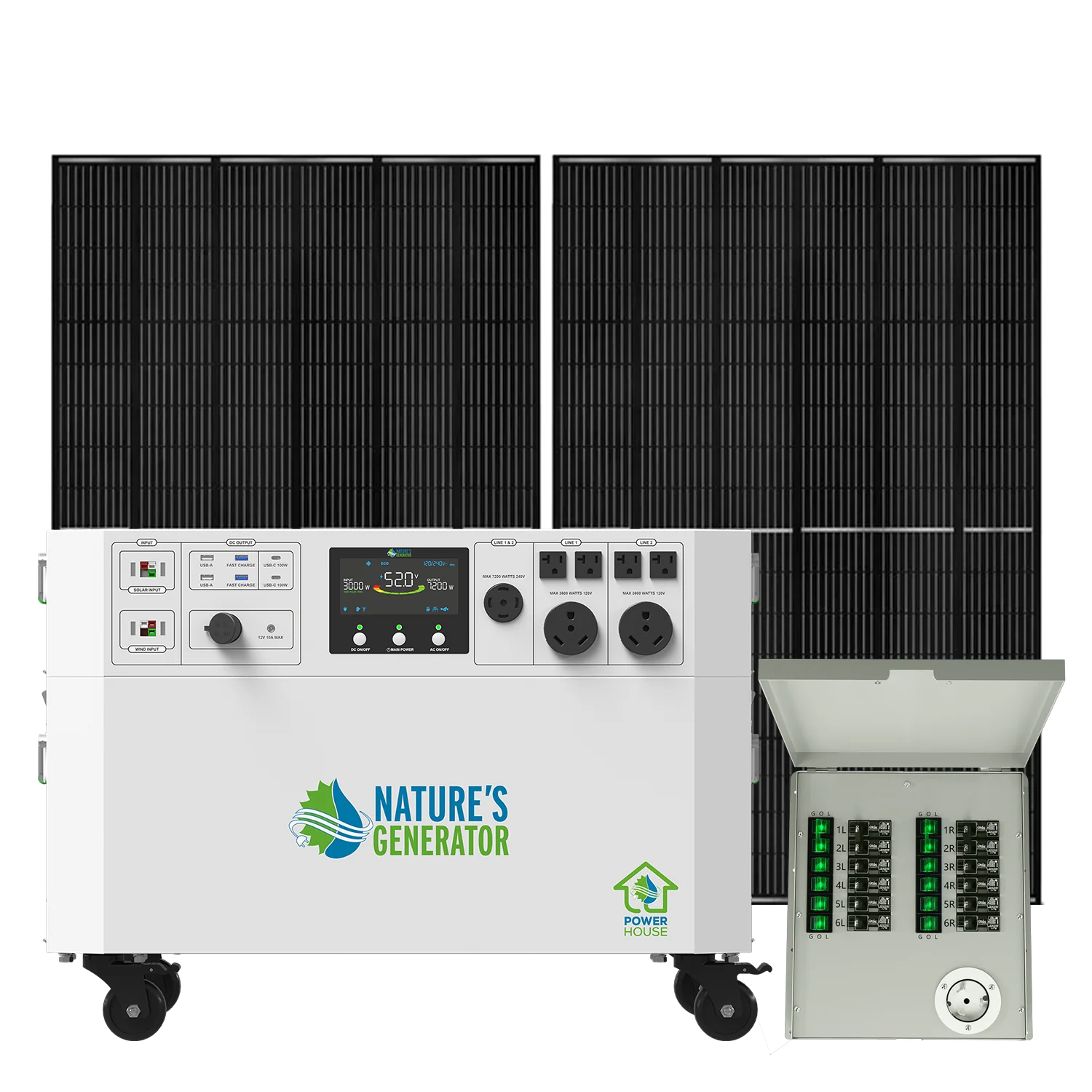

NATURE'S GENERATOR POWERHOUSE PLATINUM PE SYSTEM

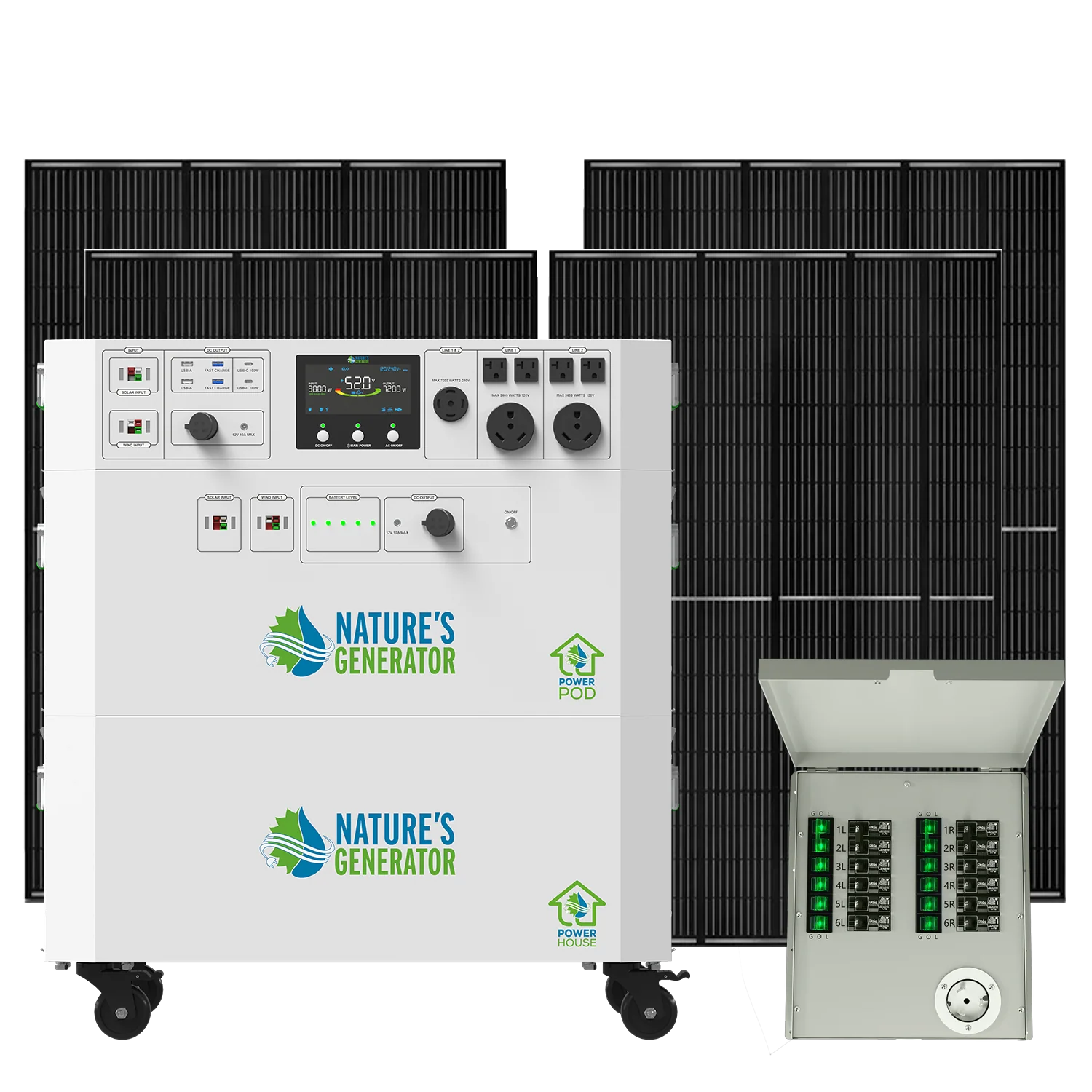

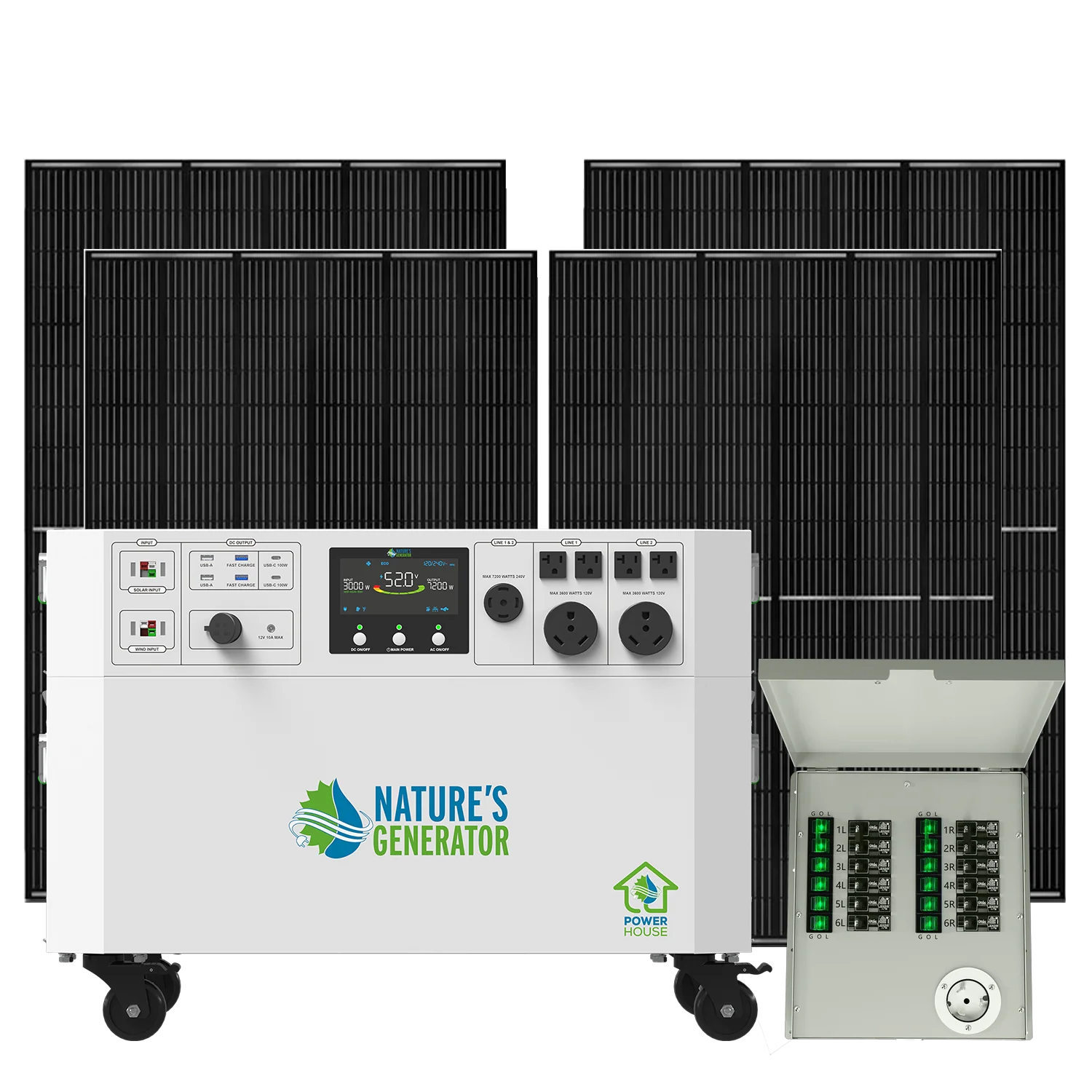

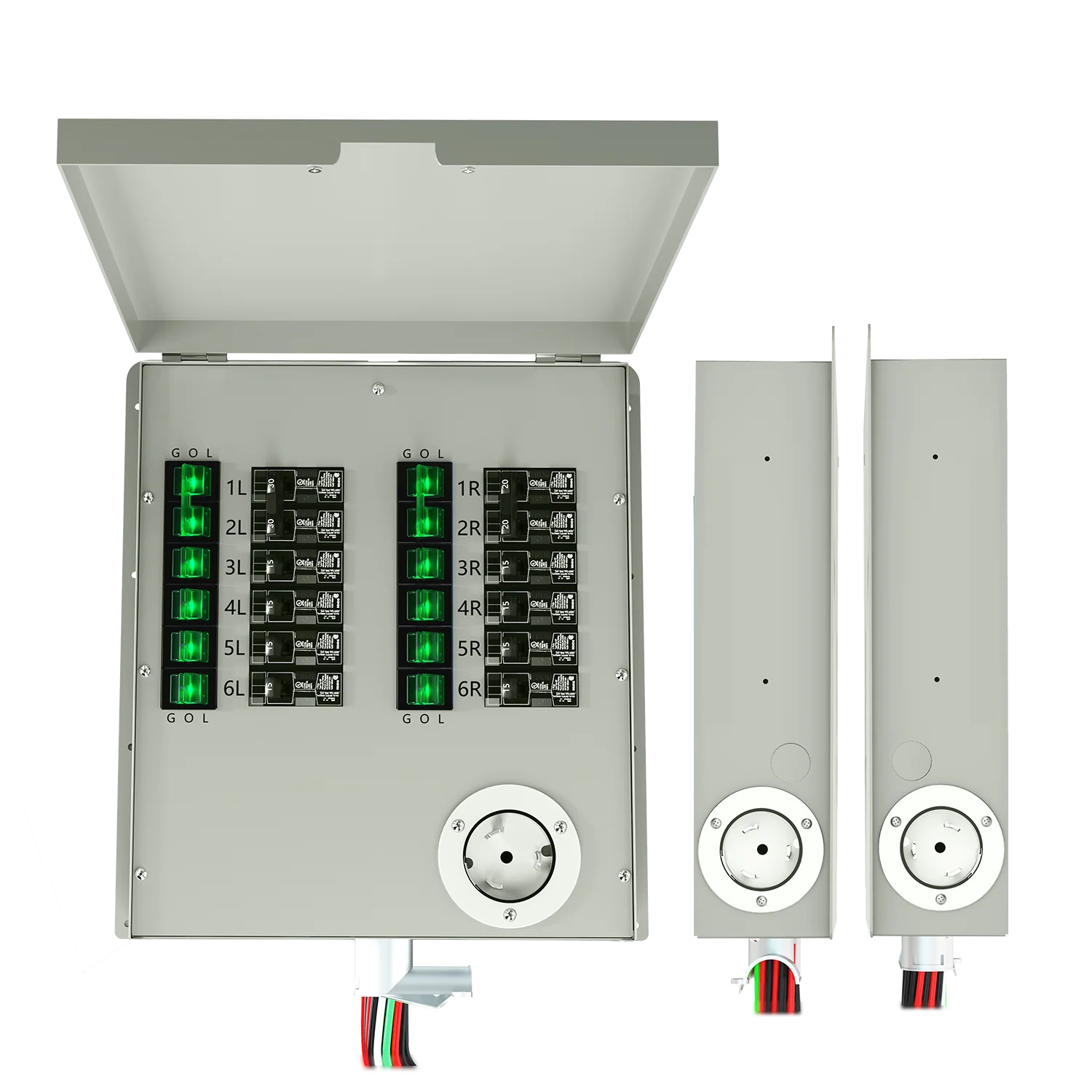

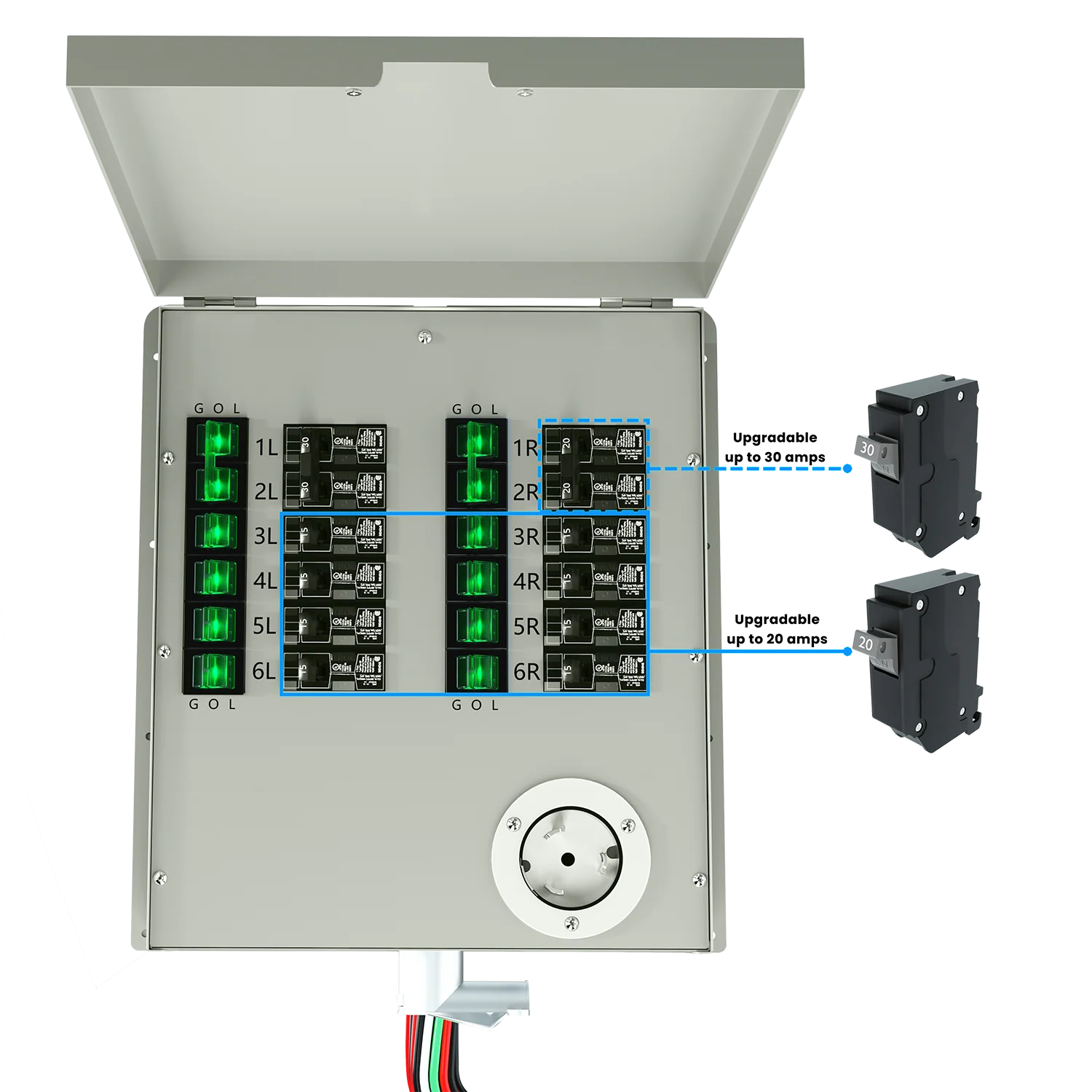

• Complete Home Backup Power Ready: Includes the manual transfer switch for safe switching between the grid and backup power.
• Reliable Whole‑Home Performance: Up to 120/240V and 7,200W output with pure sine wave inverter paired with a 4800Wh battery, capable of powering everything from small devices to heavy-duty appliances for home backup or off-grid use. Features 10ms UPS functionality for seamless power during outages.
• Easy Setup & Ready to Use: Plug-and-play design allows you to get started immediately with minimal setup and lower installation costs.

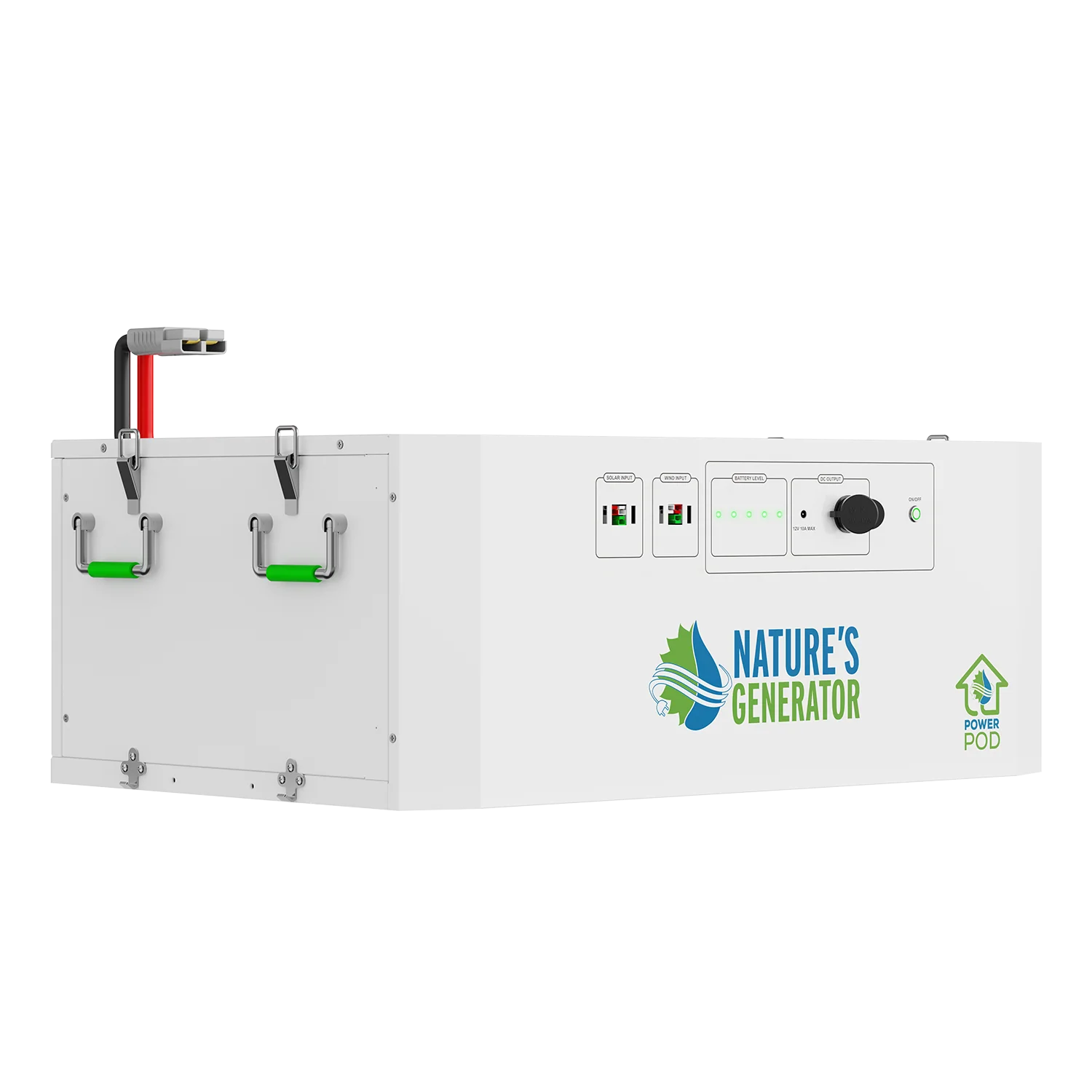

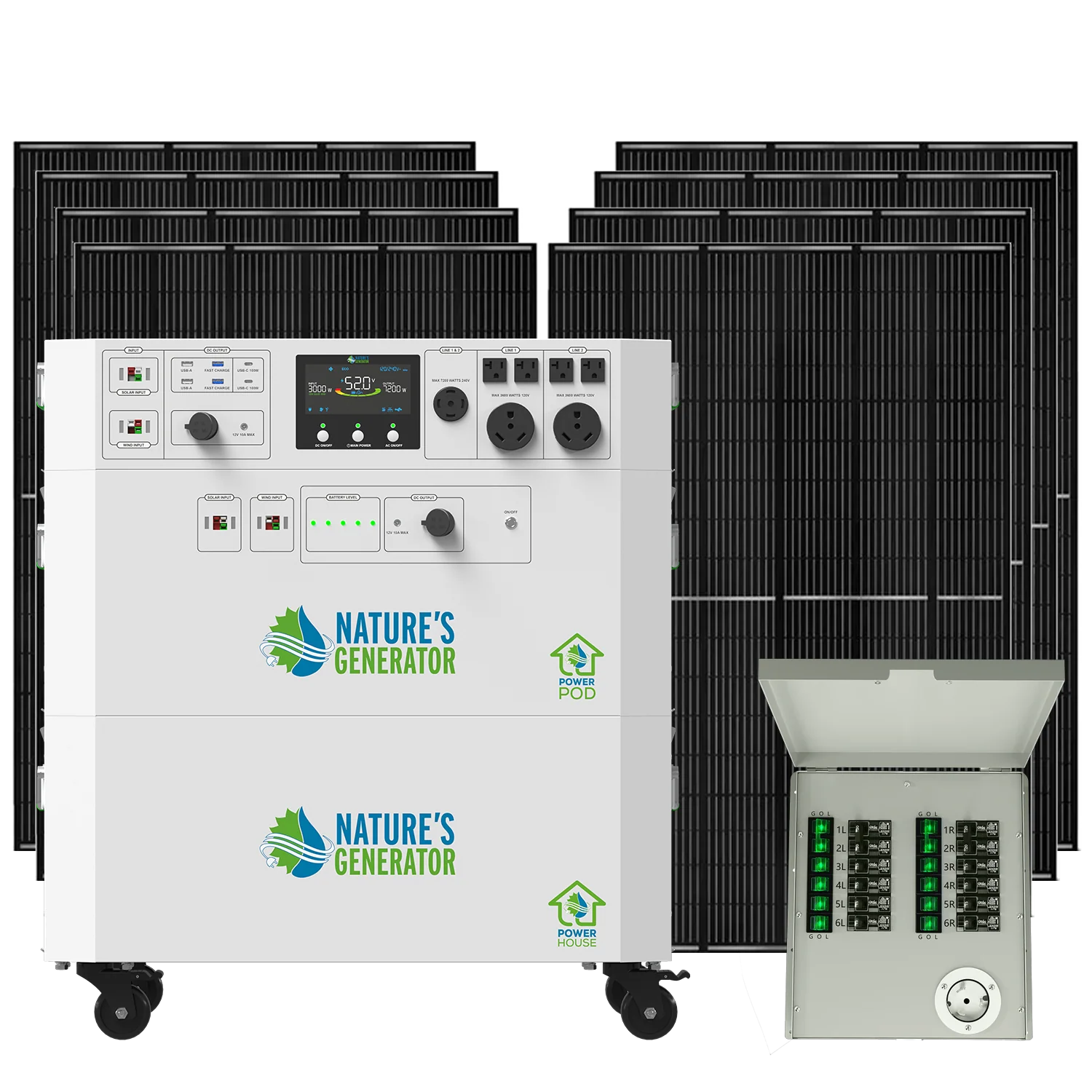

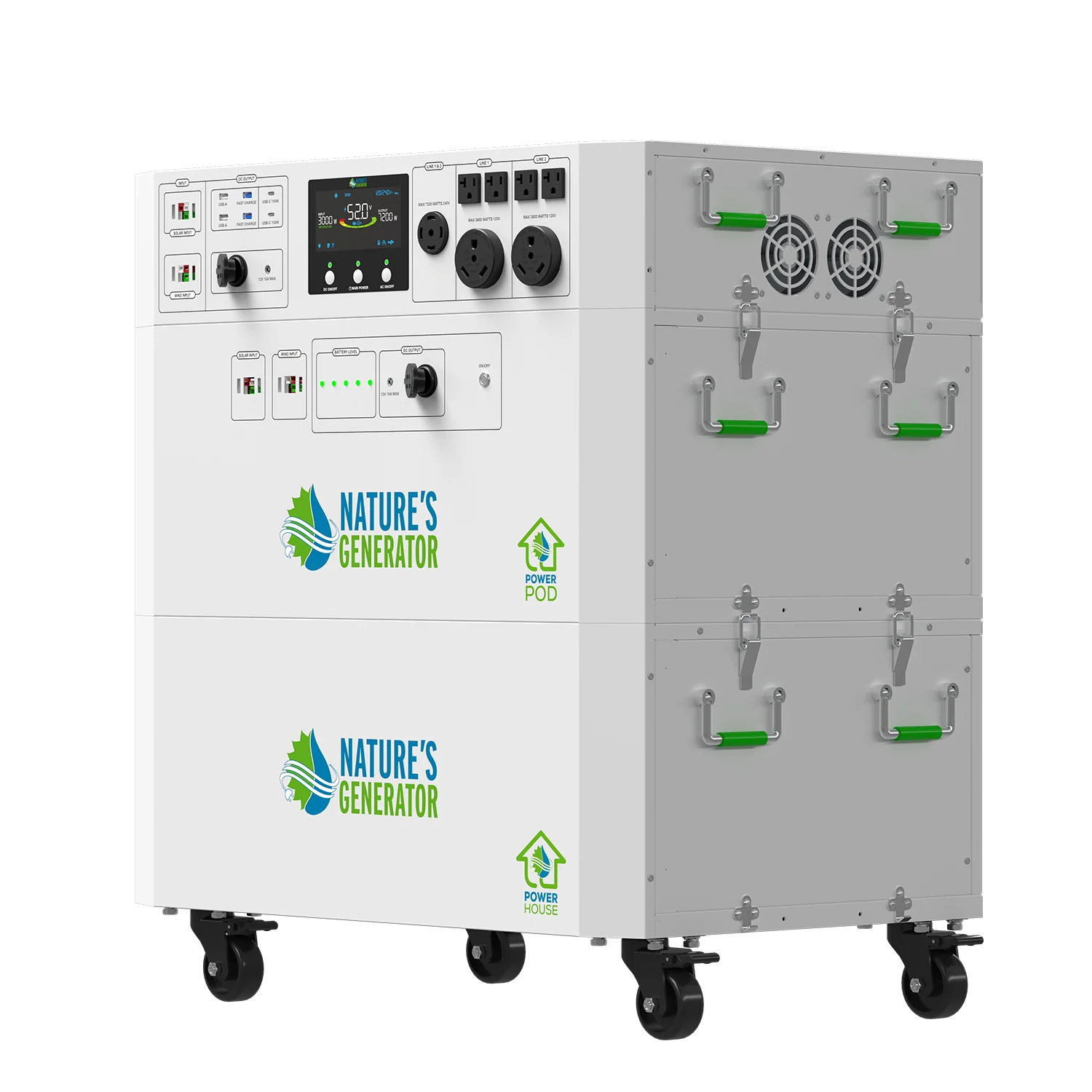

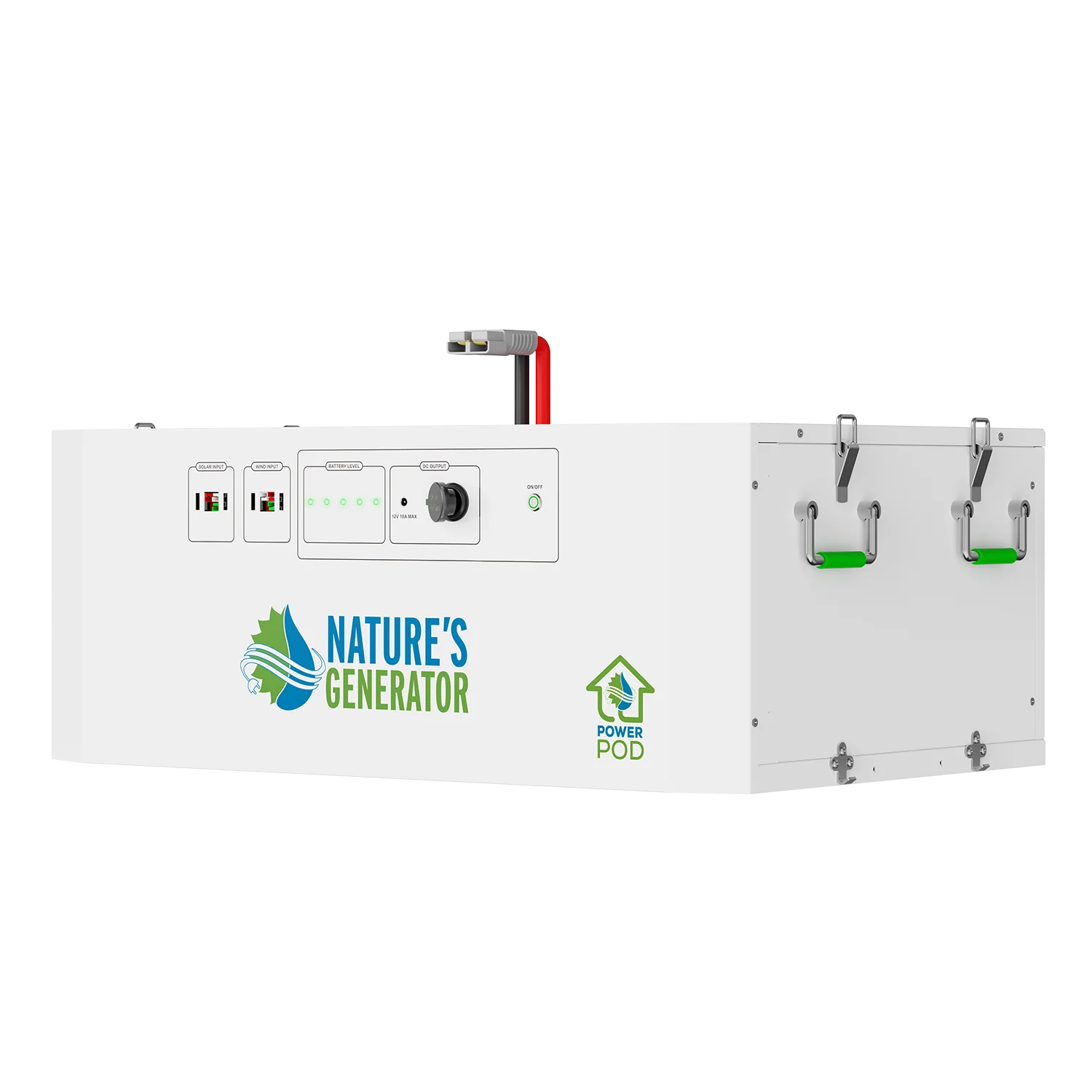

• Expandable System: Scalable with additional Powerhouses — combine up to three units for up to 21,600W output — plus power pods, solar panels, wind turbine, and more to extend runtime and power capacity over time.

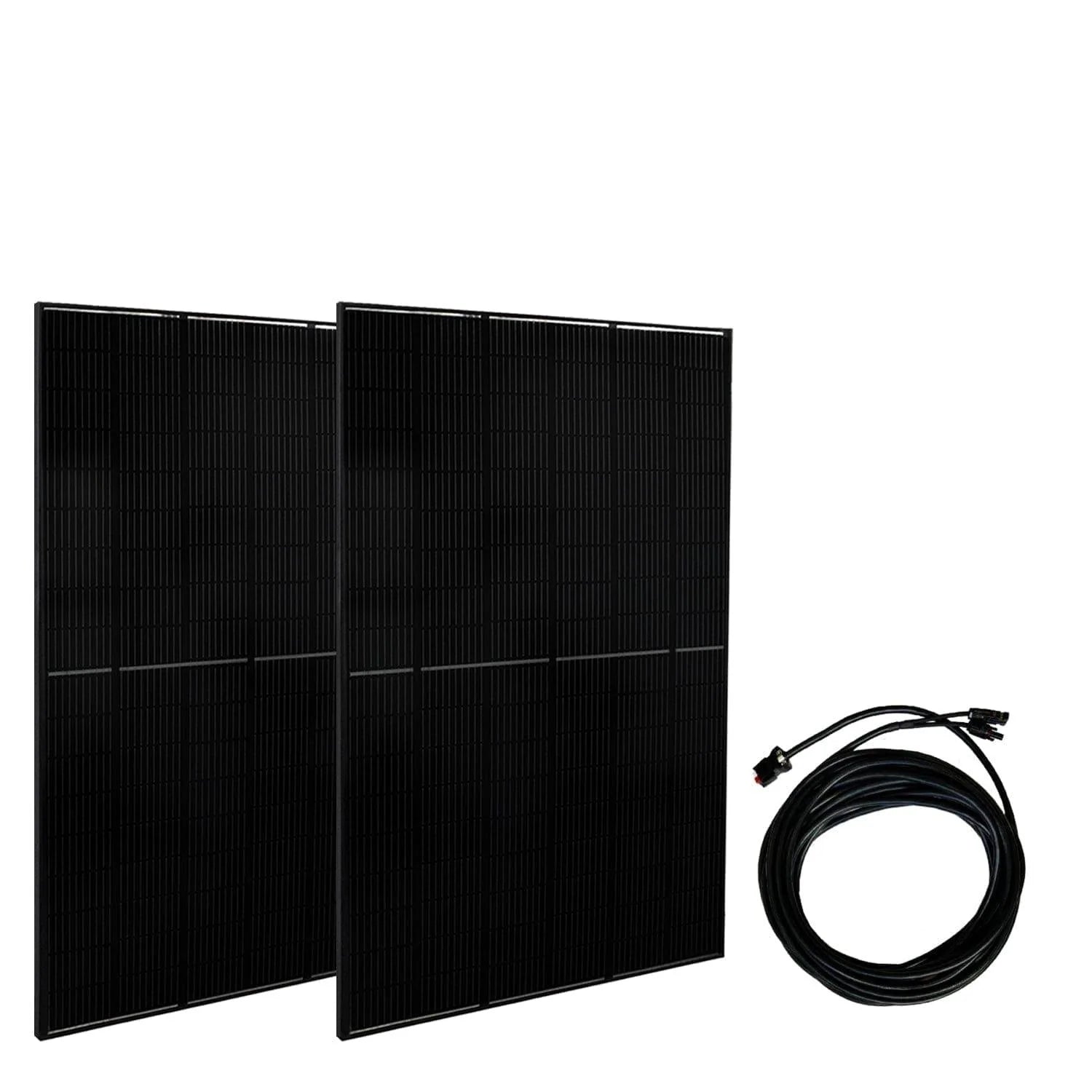

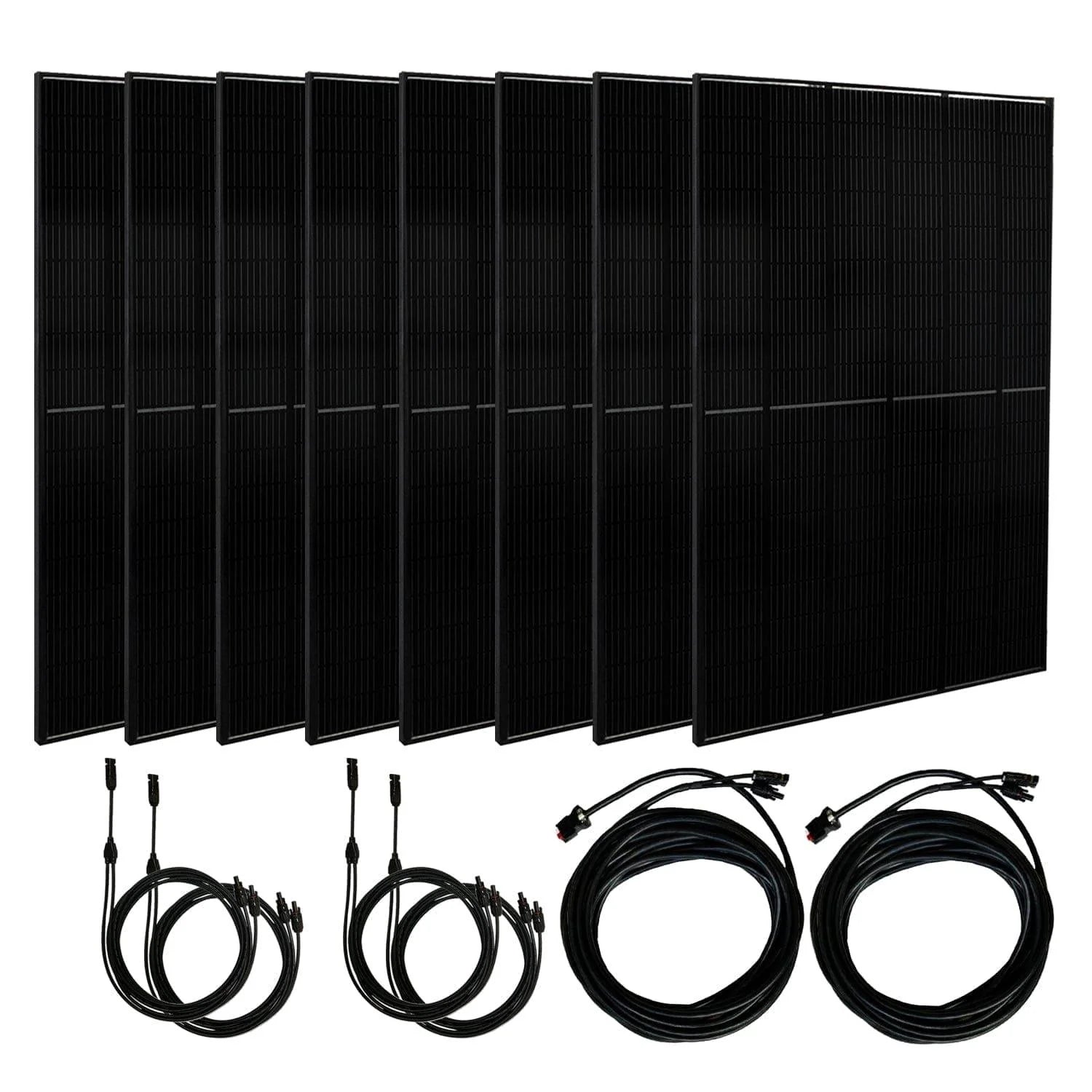

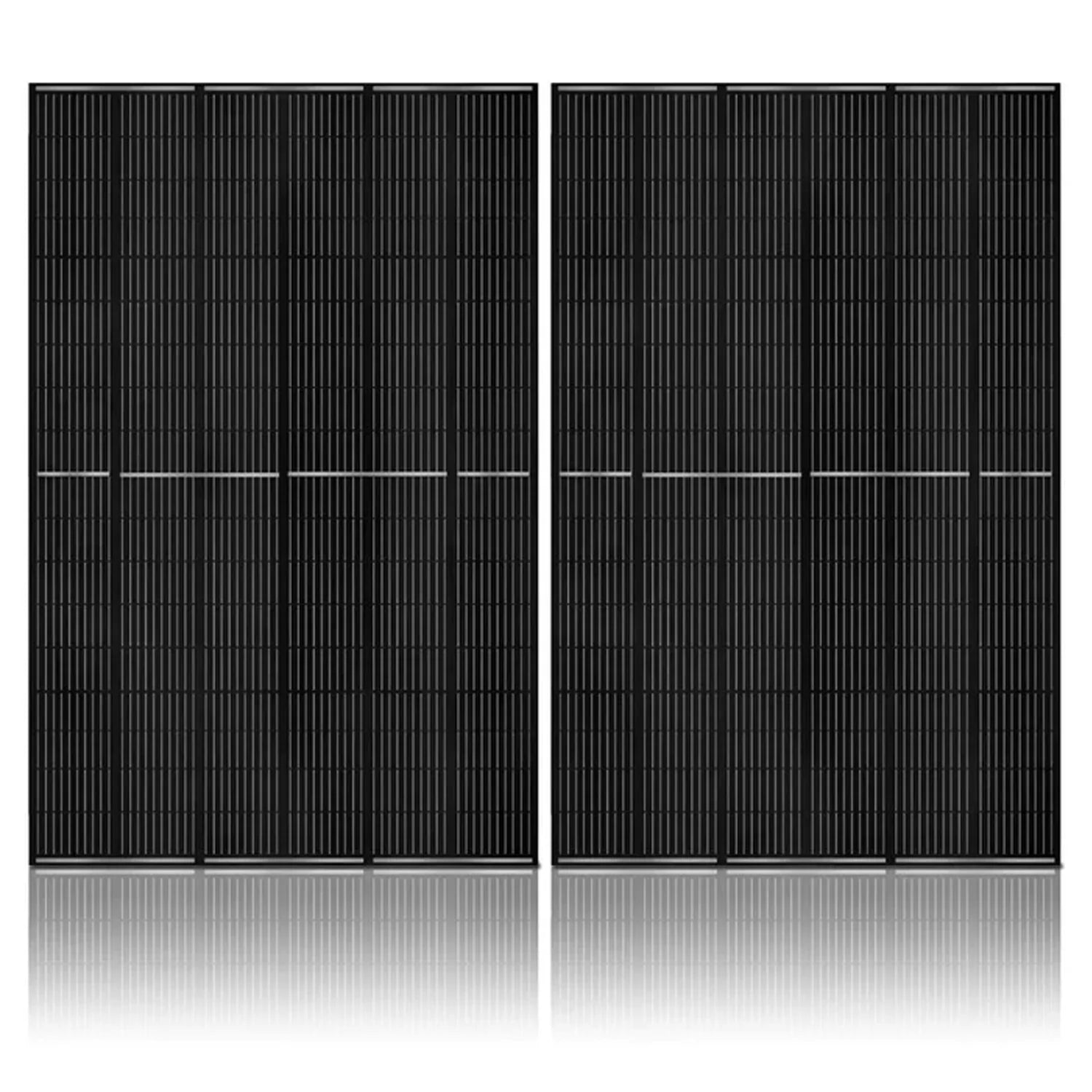

• Hybrid Charging Flexibility: Recharge via solar (up to 2,000 W), wind (up to 1,000 W), or AC, allowing you to harness renewable energy or traditional power sources efficiently.
• Seamless Home Integration: Compatible with transfer switches or power inlet boxes to safely and smoothly back up home circuits without complex wiring.
• User‑Friendly Monitoring: Built‑in LED display shows real‑time battery level, power usage, and remaining run time to help you stay informed and in full control.
Features
-
High Power & Whole-Home Capability: 7200W split-phase output powers essentials to heavy appliances.
-
Seamless Home Integration: Works with transfer switches for smooth, whole-home backup power.
-

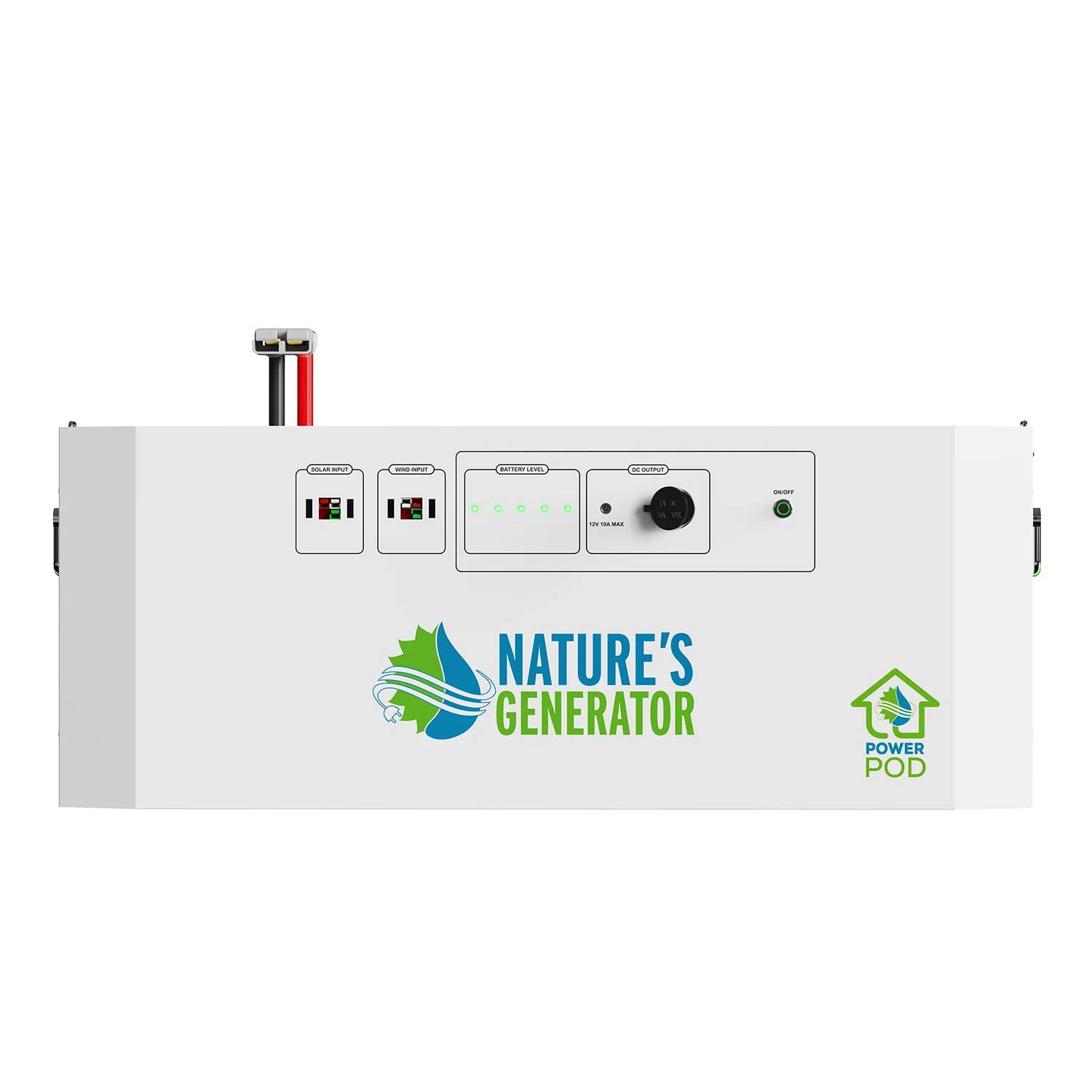

Expandable & Modular Design: Add batteries, solar, or wind to grow your system anytime.
-
Reliable Off-Grid Independence: Stable 120V/240V power keeps off-grid homes running safely.

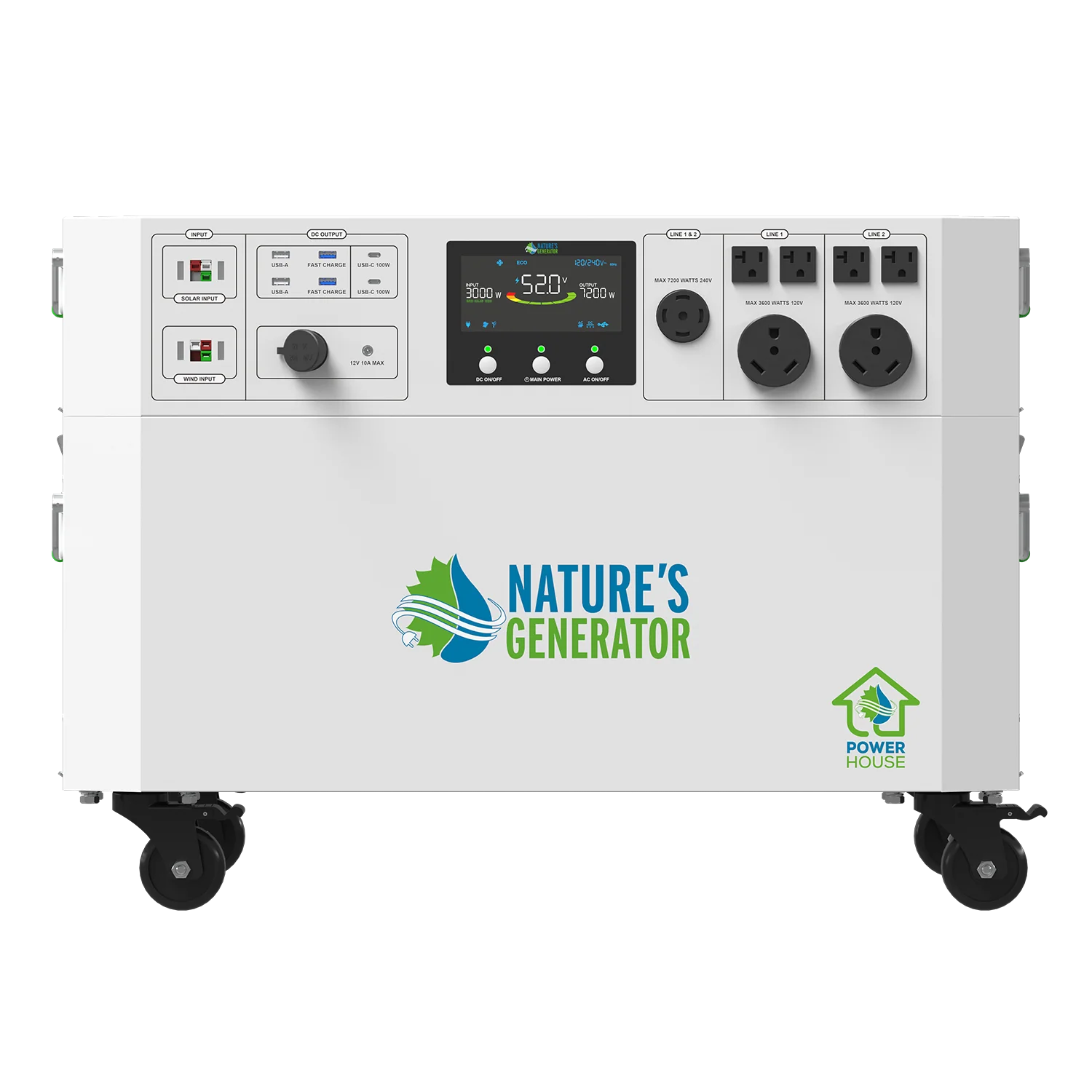

Port and Connection Guide
- Generator LCD Display
- USB Ports
- Solar Input
- Wind Input
- 12V DC Socket/Barrel Port
- Main Power, DC, & AC Switch
- AC Outlets & Switch
- AC Input
- Power Port
- Expansion IN Port
- Battery Generator Port
Tech Specs
Find all the essential technical details of the Powerhouse, including power output, capacity, and system specifications.
Inverter
-
Output Continuous Power: 7200 watt max
-
Output Peak Power: 14400W
-
Output Voltage: 240V Split Phase, 120V Single Phase
-
Output Frequency: 60Hz
-
Output Power Form: Pure Sine Wave
Battery
-
Capacity: 48V 100Ah (4800Wh)
-
Cell Chemistry: AGM Sealed Lead Acid
-
Self-discharge: Recommend to recharge every 4 months
Charges
-
Solar Charger: 2000W
-
Wind Charger: 1000W
-
AC Charger: 1300W, 120V AC
Ports
- USB Output: QC 3.0
- Type-C Output: PD3.0
- 12V Socket: 10A max
- 12V Port: 10A max
- 48V Port: 5A max
- Expansion Port: 175A max
General
-
Weight: 434 lbs (197 kg)
-
Operating temperature: 32-104 °F (0-40 °C)
-
Storage Temperature: 23–111 °F (-5–45 °C)
-
Dimensions: Powerhouse : 28 x 18 x 17 inches (720*466*440mm)
-
Powerhouse (with wheels): 28 x 18 x 21 inches (720*466*534mm)
