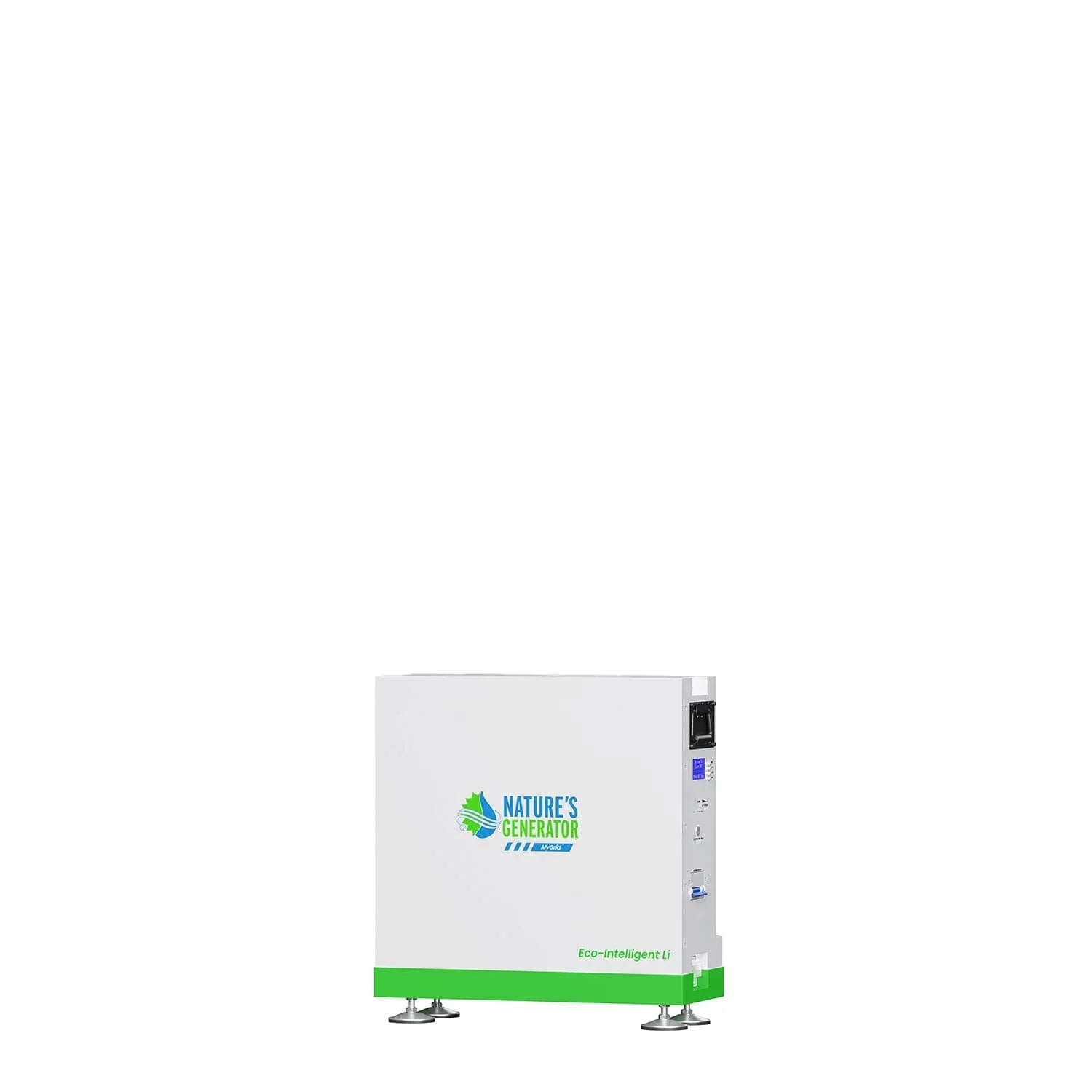

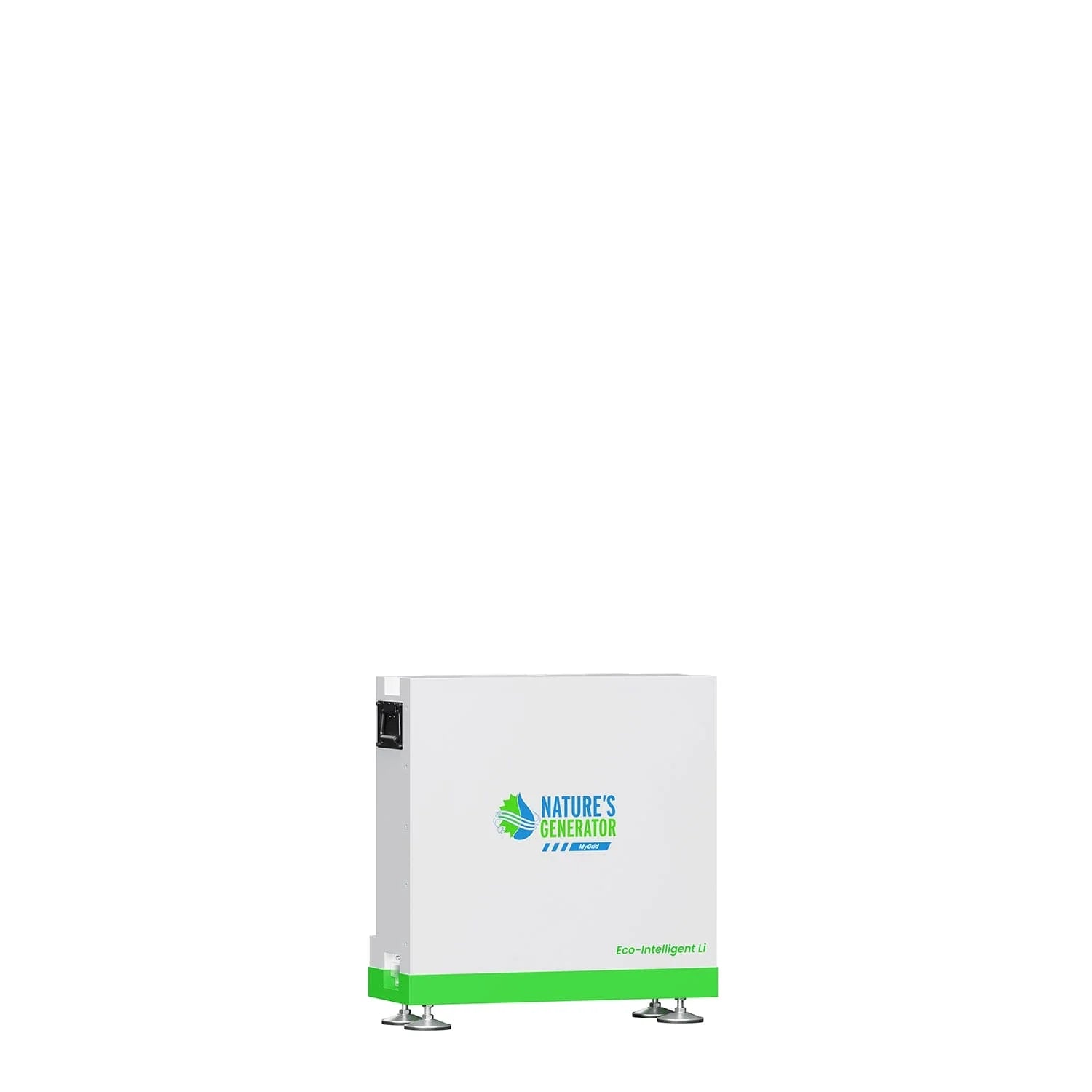

MyGrid 10K Solar Battery
• Designed for MyGrid 10K: Engineered to work seamlessly with the MyGrid 10K whole‑home generator, extending runtime without complicated integration. Expansion cables are included for easy connection between multiple batteries.
• Massive Expandable Capacity: Add up to 6 batteries to your system, expanding total storage up to 73,742Wh to support prolonged outages or greater off‑grid use.

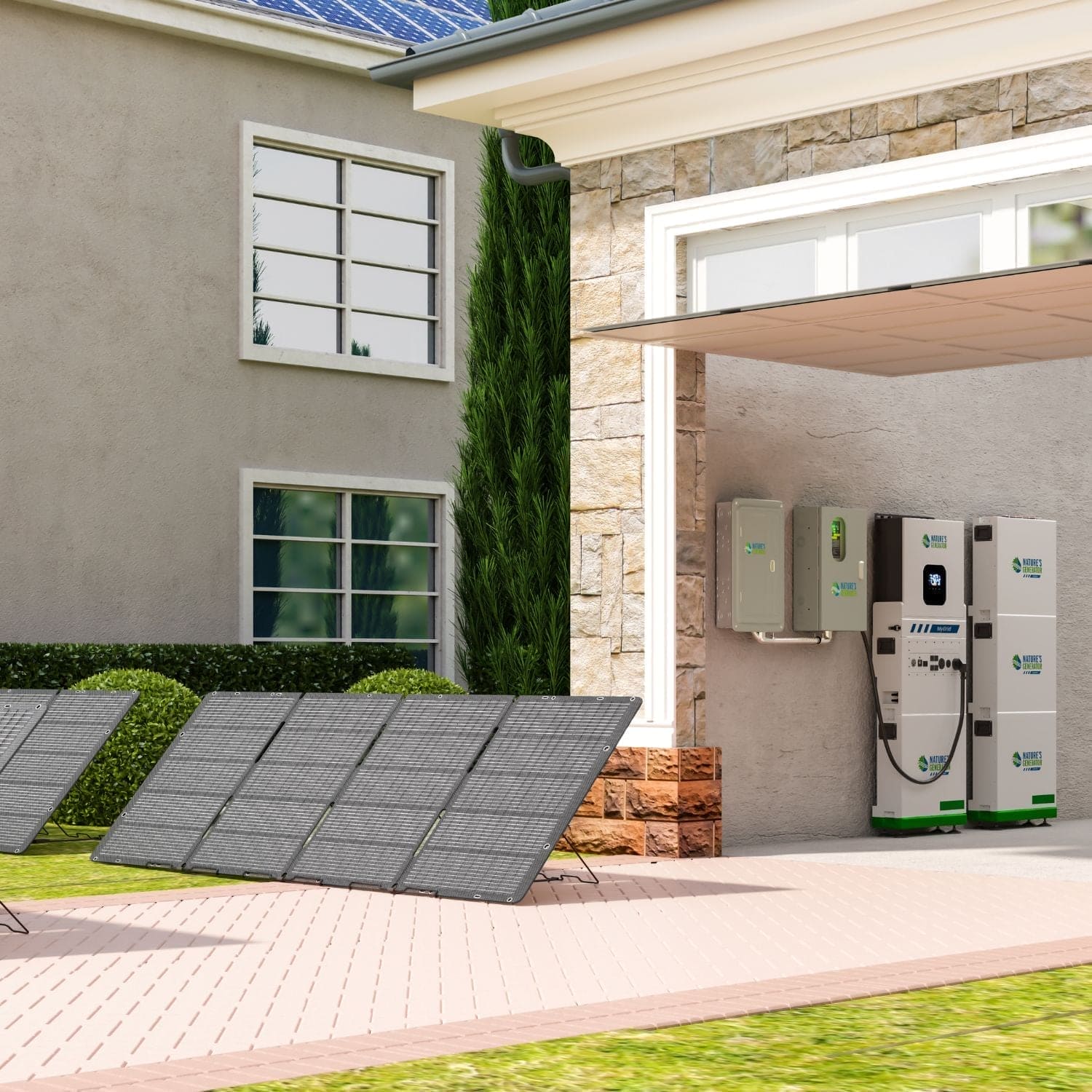

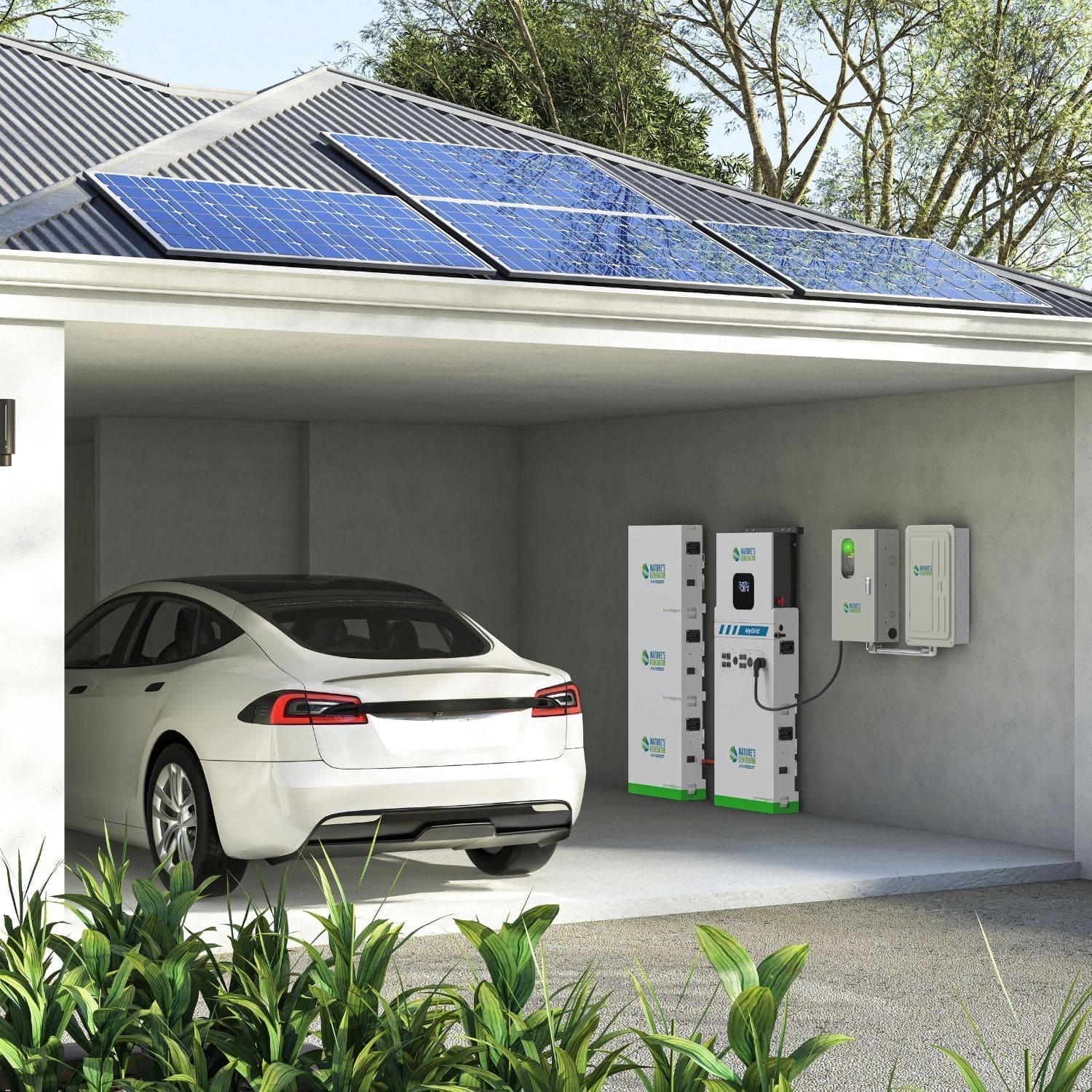

• Flexible Stacking Configuration: Batteries can be stacked up to 3 in a single row, optimizing space in garages, basements, or power closets while keeping installations neat and organized.
• Smart Battery Protection: Integrated Battery Management System (BMS) monitors, controls, and displays battery status for enhanced safety, performance, and longevity, with an easy-to-read LED display.
• High-Performance LiFePO₄ Chemistry: Premium lithium iron phosphate (LiFePO₄) cells deliver long life, safe operation, and consistent power output, enhancing system reliability.

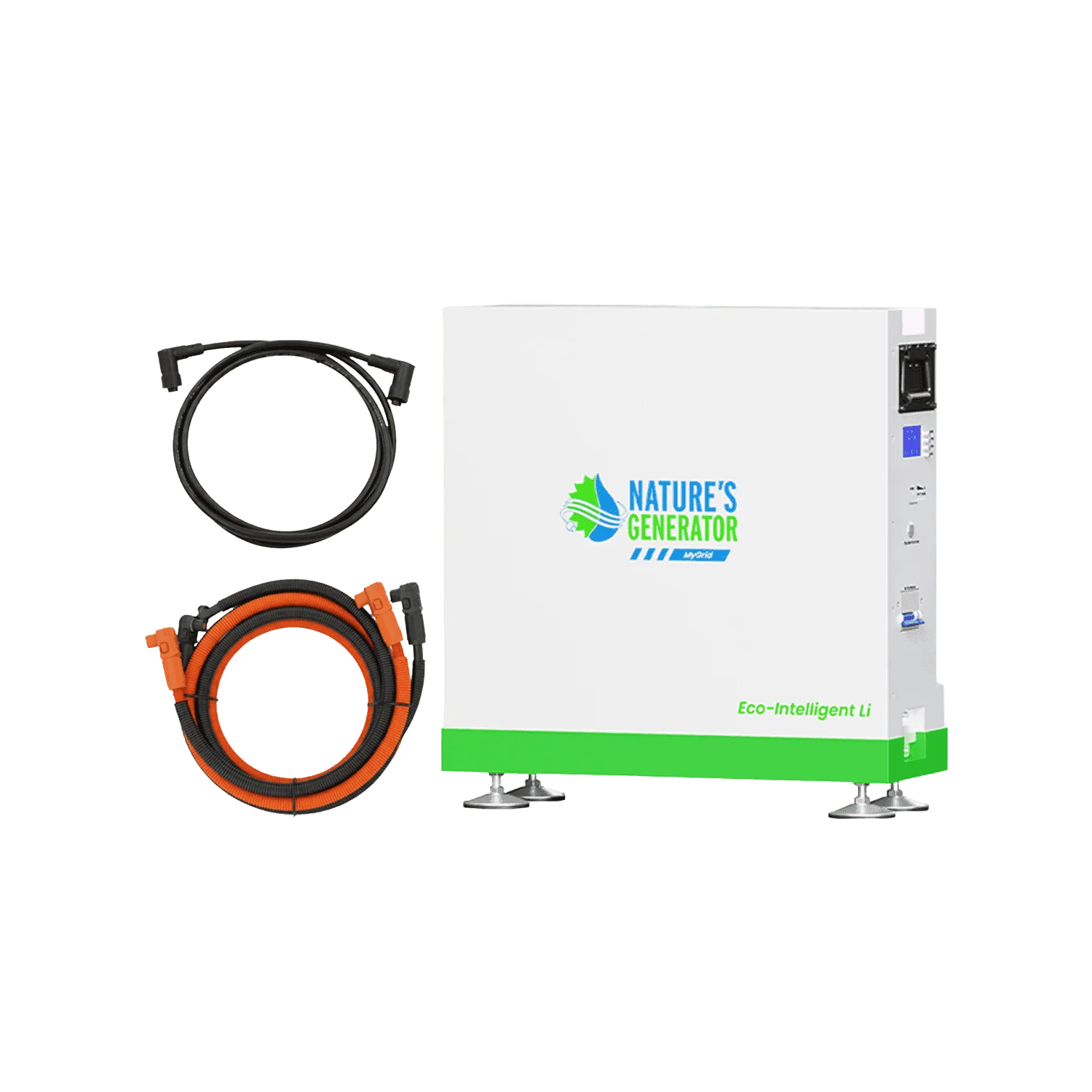

• Easy Installation: Plug-and-play design with included cables allows quick setup without complex wiring.
Built for Serious Energy Storage
Engineered to deliver large-scale battery capacity with long-term reliability for home and off-grid use.
-
10 kWh LiFePO₄ Battery Storage: High-capacity lithium iron phosphate battery for reliable energy storage.
-
Long Cycle Life: Designed for >6000 cycles, offering years of dependable performance
-

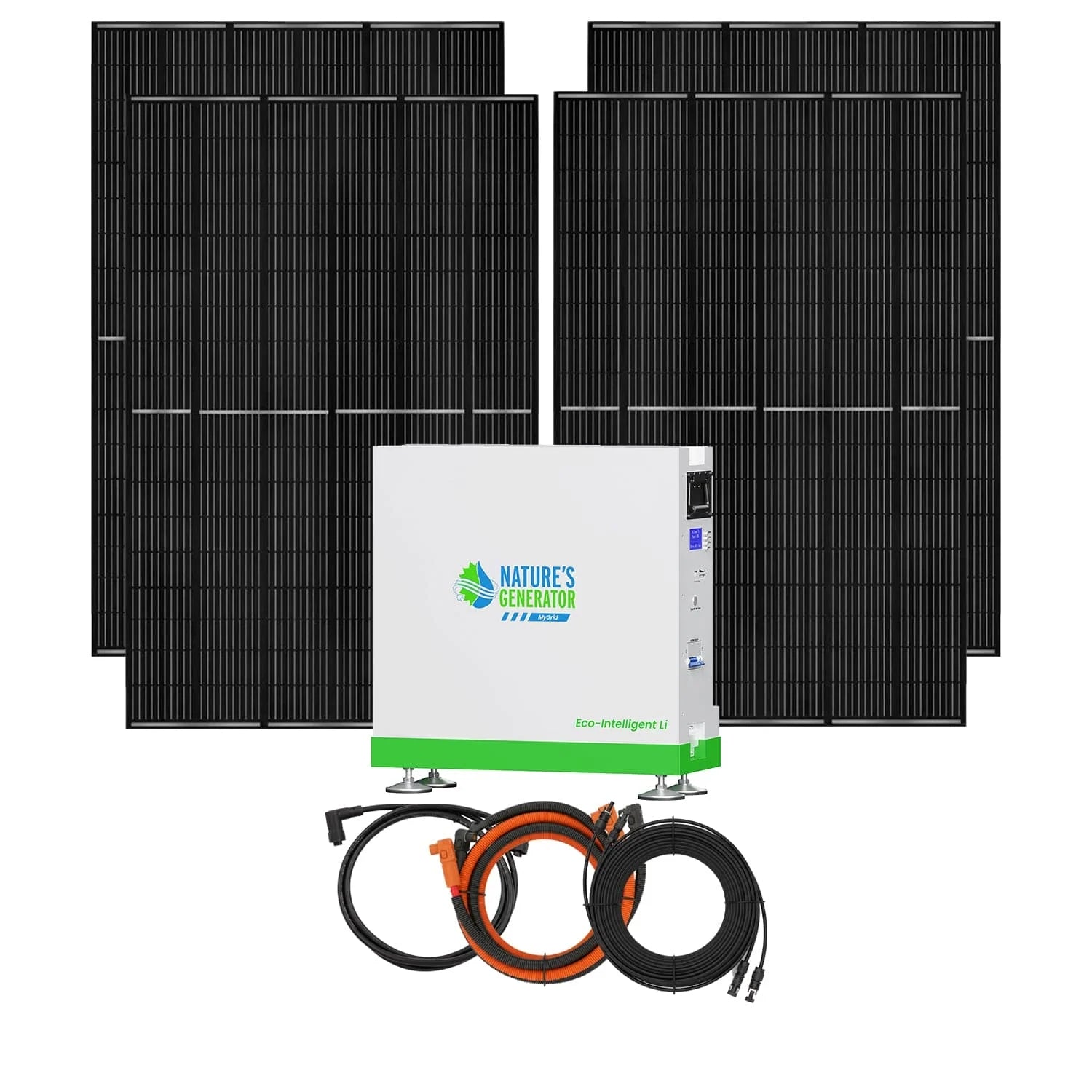

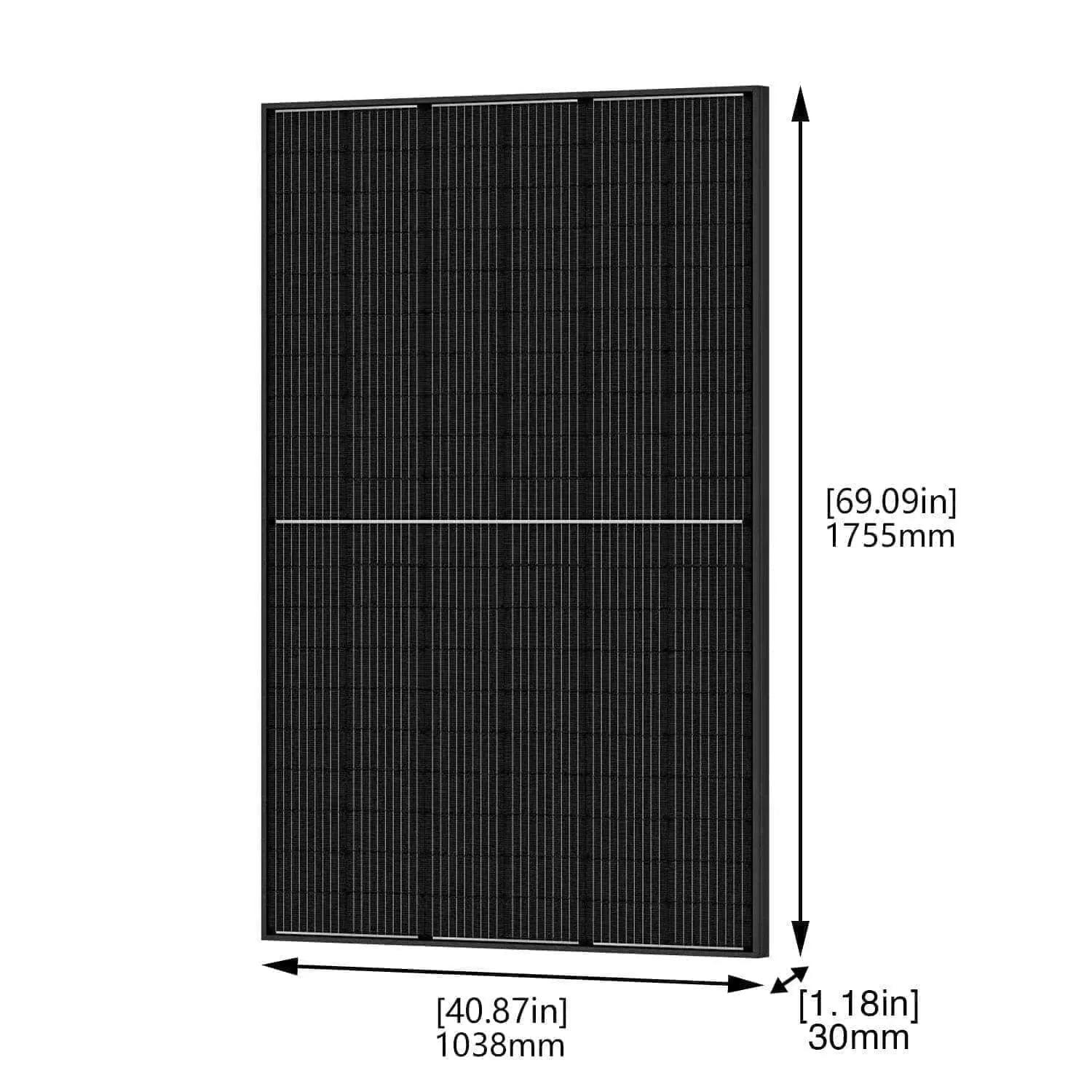

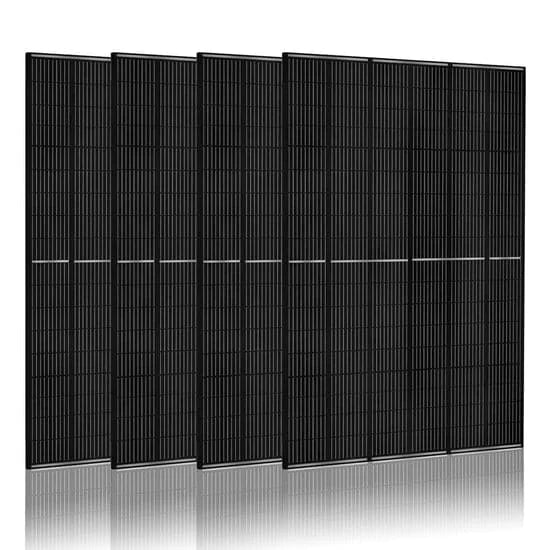

Expandable Solar Options: Compatible with 410 W rigid or 400 W folding solar panels.
-
Safe & Stable Architecture: Intelligent BMS (battery management system) protects against over-charge/discharge and enhances safety.
Port and Connection Guide
- Battery Terminals
- Battery Communication Port
- Battery Expansion Communication Port
- Battery Diagnostic Port
- Battery Diagnostic Port
Tech Specs
A detailed look at capacity, battery chemistry, charging inputs, and system performance.
Battery
-
Type: Lithium Iron Phospate (LiFePO4)
-
Capacity: 51.2V 205Ah (10496Wh)
-
Life Cycles: >6000 Cycles
-
Self DIscharge: Recommended recharging every 6 months
General
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
-
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
-
Storage Temperature: 14 – 113°F (-10 – 45°C)
-
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
-
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
-
Battery Weight: 213 lbs (96.6 kg)
